(6-152) - REAR WHEELS AND TIRES, TWO WHEEL OR FOUR WHEEL DRIVE, 21L X 24 TIRES - 10 PLY

Запчасти Case 590SL (6-152) - REAR WHEELS AND TIRES, TWO WHEEL OR FOUR WHEEL DRIVE, 21L X 24 TIRES - 10 PLY (06) - POWER TRAIN

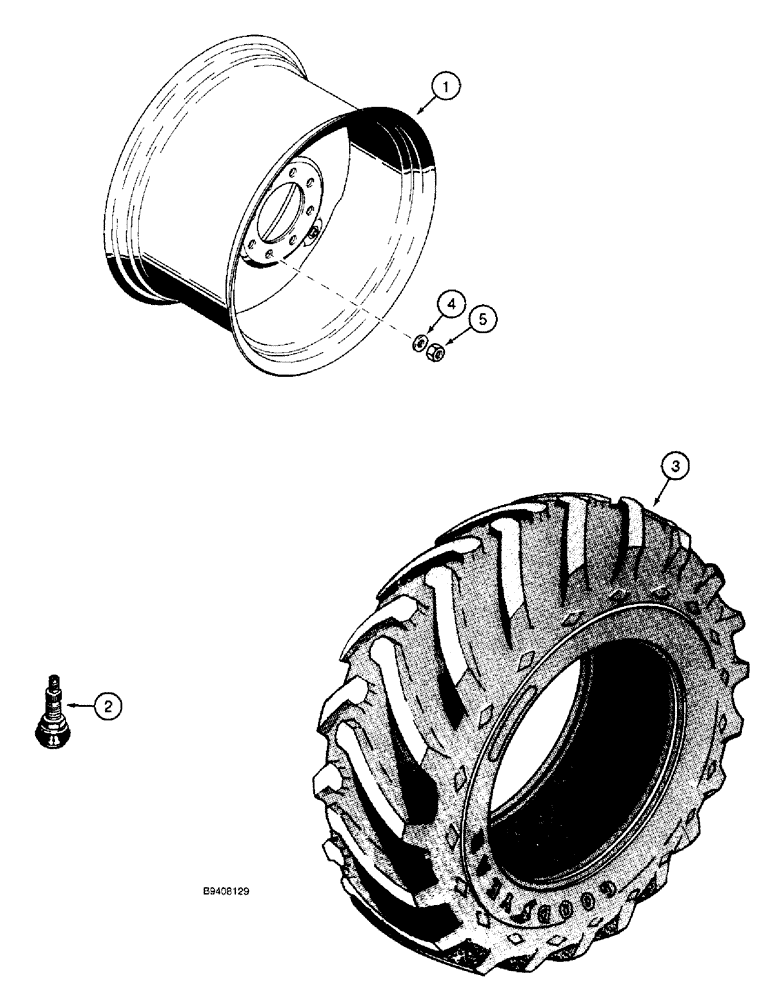

Схема запчастей Case 590SL - (6-152) - REAR WHEELS AND TIRES, TWO WHEEL OR FOUR WHEEL DRIVE, 21L X 24 TIRES - 10 PLY (06) - POWER TRAIN
3
1
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

132953A1

WHEEL,W18Lx24, 10 Holes, CASE Power Tan

Rim

2шт.

2

A20058

VALVE STEM

VALVE - stem, wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, purchase locally

2шт.

4

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

- flat, hardened, special

20шт.

5

D138492

NUT,M22 X 1.5 - 6 HVY HEX

- hex, special, 22 mm - 1.5

20шт.

Выбрано товаров: 5
