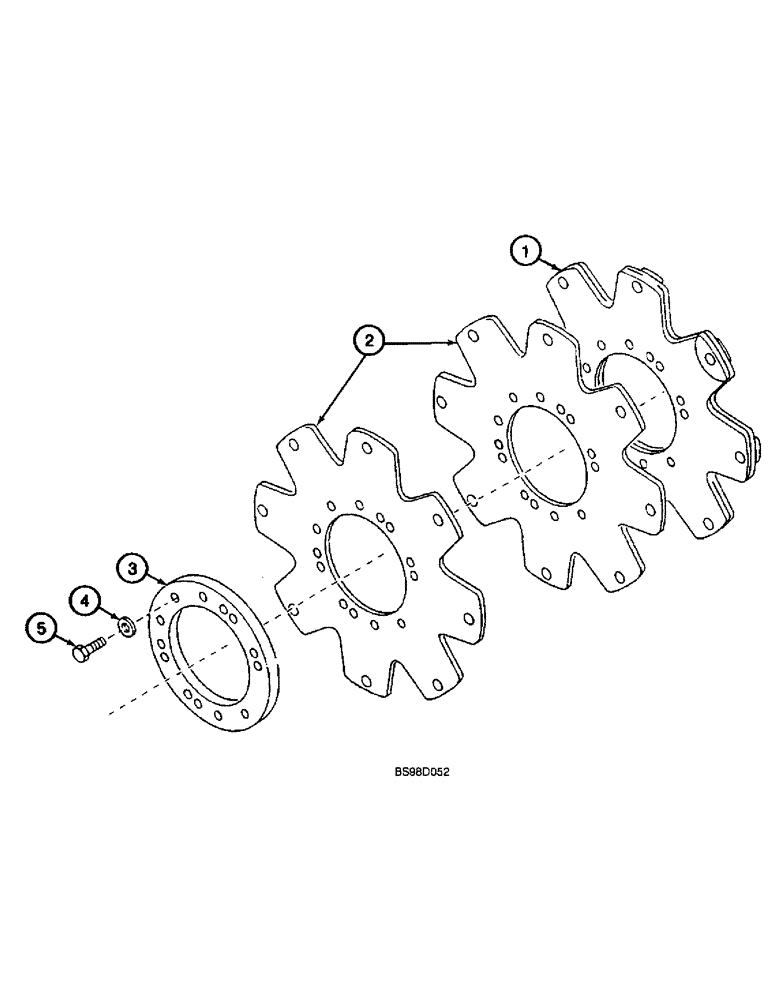

Запчасти Case 590SL (6-150) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, DRIVE PLATE (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, with integral differential lock solenoid valve, parts list figures 6-120 - 6-150, if used, Includes: Ref. 1 - 5

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291590A1

DRIVE ASSY.

KIT - drive plate assembly, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - face

2шт.

3

217558A1

FLANGE

BUSHING - plate, drive plate backing ring

1шт.

4

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex, 3/8 NF x 1/2 inch

6шт.
