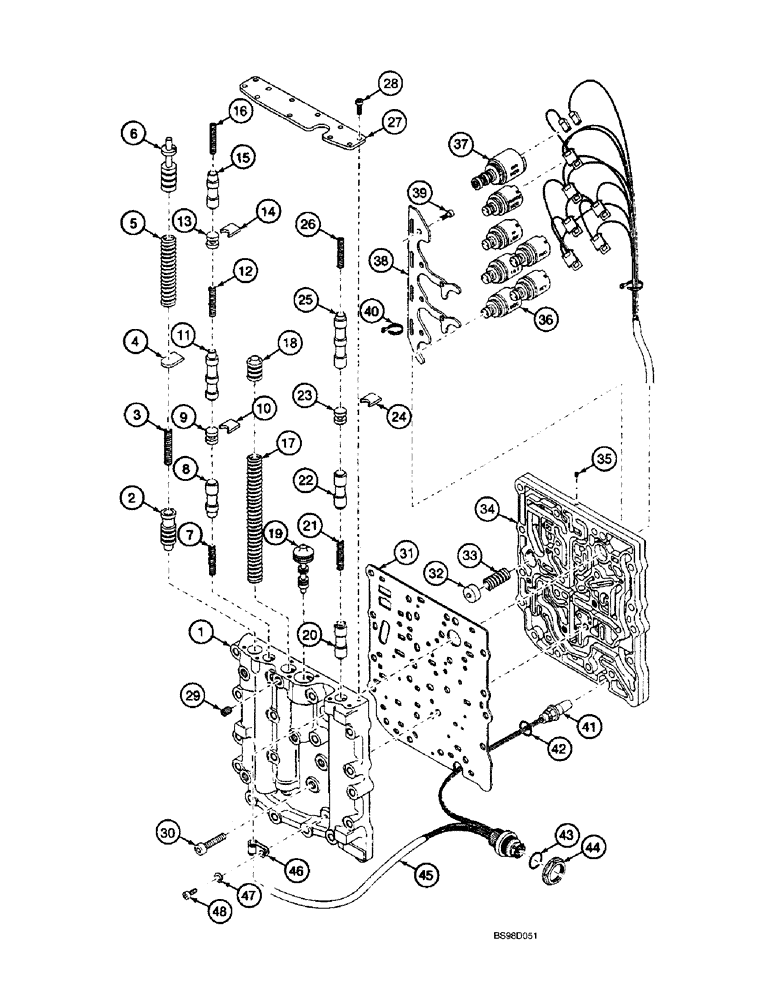

Запчасти Case 590SL (6-146) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, with integral differential lock solenoid valve, parts list figures 6-120 - 6-150, if used, Includes: Ref. 1 - 48

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

291576A1

CONTROL BLOCK

VALVE ASSEMBLY - transmission control, Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, pressure reducer

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - spring, separator

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - detent, pressure regulator

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve, pressure regulator

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - valve, pilot spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, disconnect

1шт.

9

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - intermediate, separator

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve, first/second

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - valve, pilot spool

1шт.

13

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - intermediate

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - valve, range modulation

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - valve, pilot spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - valve, accumulator

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - valve, accumulator

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - valve, booster

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - valve, reverse

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - valve, pilot spool

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve, forward

1шт.

23

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - intermediate

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve, forward low/forward high

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

28

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

SCREW - hex socket, 5 - 0.8 x 12 mm

11шт.

29

366663A1

PLUG

- valve check port

2шт.

30

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

3шт.

31

NSS

NOT SOLD SEPARAT

PLATE - valve, spacer

1шт.

32

292176A1

VALVE POPPET

SPOOL - bypass valve

1шт.

33

292177A1

SPRING

- bypass valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE - valve, solenoid

1шт.

35

319597A1

PLUG

- valve

6шт.

36

291862A1

SOLENOID

- valve

6шт.

37

291861A1

SOLENOID

MODULE - solenoid, electronic control

1шт.

38

NSS

NOT SOLD SEPARAT

BAIL - valve

1шт.

39

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

SCREW - hex socket, 5 - 0.8 x 12 mm

6шт.

40

319598A1

STRAP

- tie

6шт.

41

362141A1

SENSOR

- speed

1шт.

42

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

43

238-9213

O-RING,-212, Cl 9, .921" ID x .139" Thk

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - jam, retaining

1шт.

45

362142A1

HARNESS

- valve, includes 362141A1 speed sensor, 238-5115 and 238-9213 O-rings, plus NSS jam nut

1шт.

46

319599A1

CLAMP

- valve

1шт.

47

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

48

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW, Hex Soc Hd, M5 x 10, 8.8

1шт.
