(6-140) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR

Запчасти Case 590SL (6-140) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR (06) - POWER TRAIN

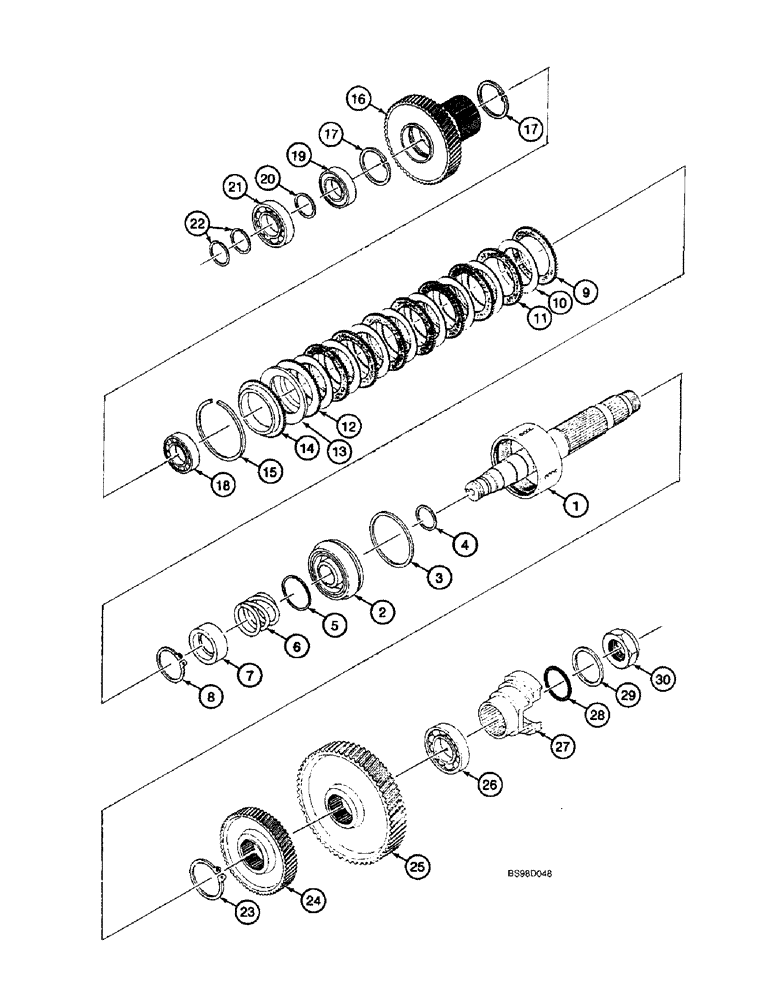

Схема запчастей Case 590SL - (6-140) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR (06) - POWER TRAIN
12
23
7
17
8
21
20
19
14
26
15
17
29
5
11
2
4
18
10
1
24
6
30
25
28
27
22
16
13
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, with integral differential lock solenoid valve, parts list figures 6-120 - 6-150, if used, Includes: Ref. 1 - 30

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

305728A1

SHAFT

- drum, second clutch

1шт.

2

291520A1

PISTON

- clutch, Includes: Ref. 3 and 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston

1шт.

5

291529A1

RING

RING - wear

1шт.

6

291531A1

SPRING

- return, piston

1шт.

7

291530A1

RETAINER

SEAT - spring

1шт.

8

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

9

291578A1

DISC

- friction, external

1шт.

10

291580A1

DISC

- friction, internal

8шт.

11

291579A1

DISC

- friction, external

7шт.

12

291578A1

DISC

- friction, external

1шт.

13

291533A1

WASHER

SPACER - disc

1шт.

14

291571A1

DISC

PLATE - backing, clutch disc

1шт.

15

292415A1

RING, SNAP

RING - retaining

1шт.

16

291555A1

PINION

GEAR - second clutch, 52 teeth

1шт.

17

800-2175

SNAP RING,M75, Int

RING - internal retaining, No. 75

2шт.

18

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball

1шт.

19

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball

1шт.

20

291541A1

WASHER

RING - bearing support

1шт.

21

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

- ball

1шт.

22

291528A1

SEALING RING

RING - seal

2шт.

23

800-5160

SNAP RING,M60, Ext

RING - external heavy retaining, No. 60

1шт.

24

291550A1

PINION

GEAR - drive, lower output, 41 teeth

1шт.

25

291553A1

PINION

GEAR - upper output, 59 teeth

1шт.

26

292433A1

BALL BEARING

- ball

1шт.

27

291524A1

SHIN

FLANGE - output yoke

1шт.

28

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

29

S89696

WASHER

- special

1шт.

30

S89695

NUT

- hex, 1-1/4 inch - 12 NF

1шт.
