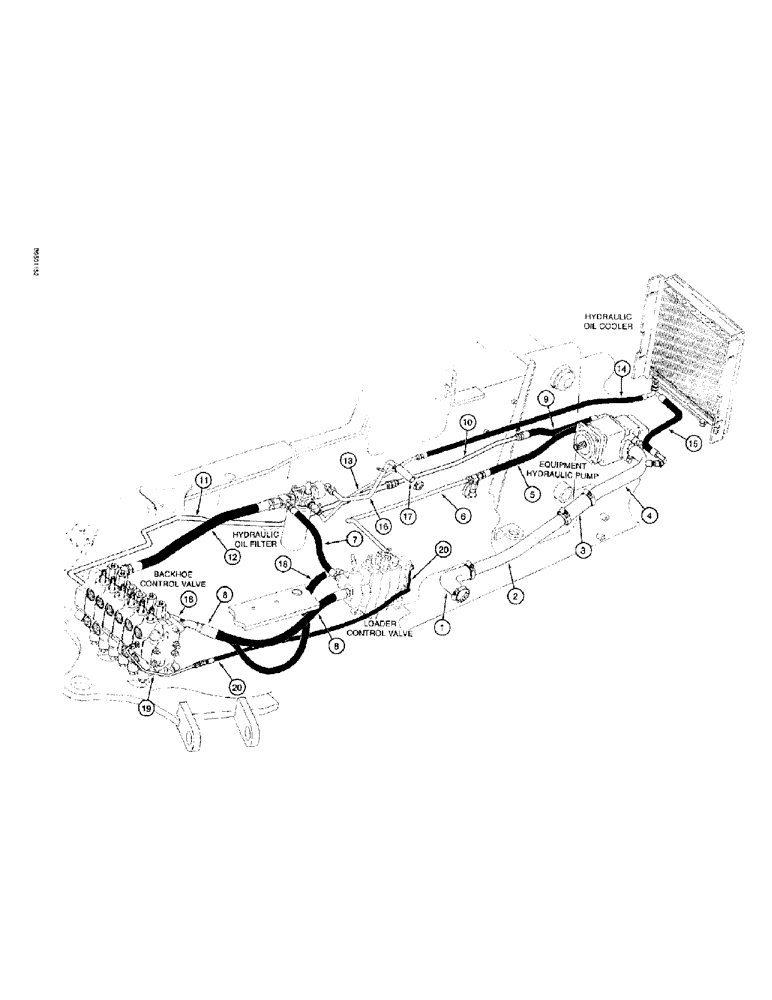

Запчасти Case 590SL (1-12) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYD. PUMP TO OIL FILTER, CONTROL VALVES, AND RETURN TO TANK (00) - PICTORIAL INDEX

1

Suction hose at hydraulic tank

1шт.

Page 8-3

1шт.

2

Suction tube at hydraulic tank

1шт.

Page 8-3

1шт.

3

Coupler hose, Page 8-3

1шт.

4

Suction tube at hydraulic equipment

1шт.

pump, Page 8-3

1шт.

5

Hose at large pump section port

1шт.

Page 8-3

1шт.

6

Tube at tee to loader control valve

1шт.

inlet, Page 8-3

1шт.

7

Loader valve to filter hose, Page

1шт.

8-5

1шт.

8

Hose at loader valve power beyond

1шт.

port to backhoe control valve

1шт.

inlet, Page 8-7

1шт.

9

Hose at small pump section outlet

1шт.

port, Page 8-7

1шт.

10

Tube between small pump section

1шт.

hose to tube at backhoe valve

1шт.

outlet section, Page 8-7

1шт.

11

Tube to inlet port on backhoe

1шт.

control valve outlet section, Page

1шт.

8-7

1шт.

12

Return hose at backhoe control

1шт.

valve to filter, Page 8-9

1шт.

13

Oil filter to oil cooler tube, Page

1шт.

8-9

1шт.

14

Hose at oil cooler, Page 8-9

1шт.

15

Oil cooler return hose, Page 8-9

1шт.

16

Return to tank tube, Page 8-9

1шт.

17

Return to tank hose, Page 8-9

1шт.

18

Swing supply hose at loader valve

1шт.

inlet section lower, Serial Range: port-backhoe

1шт.

valve swing section, Page 8-39

1шт.

19

Pilot tube at backhoe valve swing

1шт.

section center, Serial Range: port-loader

1шт.

control valve inlet section, Page

1шт.

8-39

1шт.

20

Signal hose at backhoe control

1шт.

valve swing, Serial Range: section-loader

1шт.

control valve inlet section, Page

1шт.

8-39

1шт.
