Запчасти Case 590SL (6-124) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, HOUSING - REAR (06) - POWER TRAIN

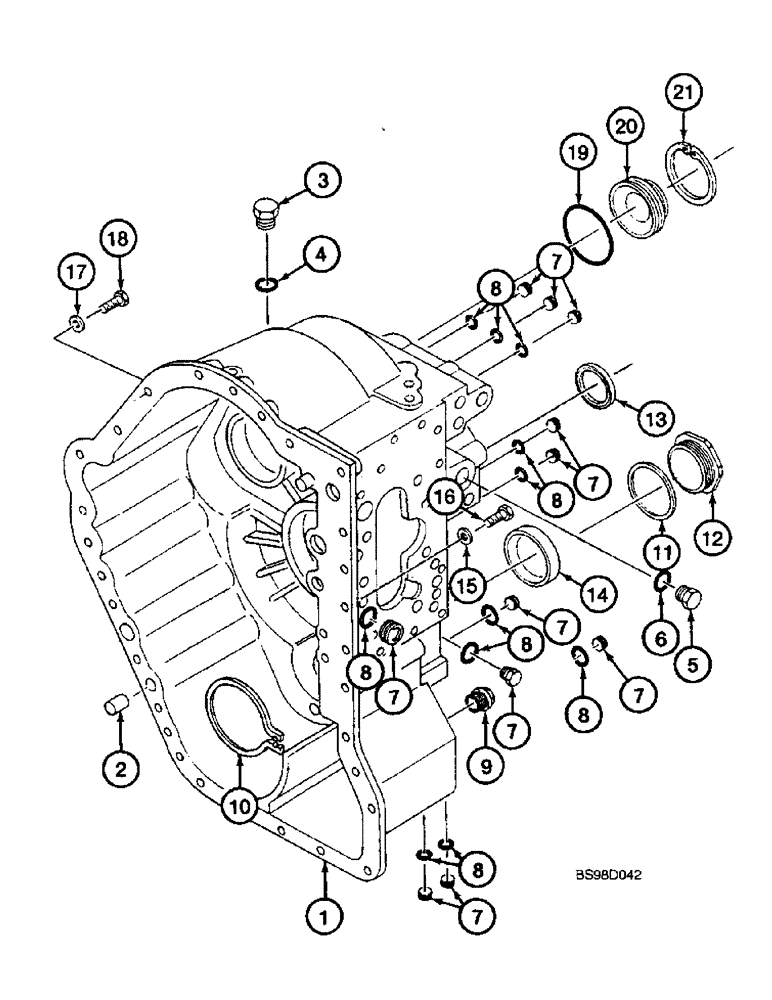

Схема запчастей Case 590SL - (6-124) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, HOUSING - REAR (06) - POWER TRAIN
8
3
2
7
10
11
8
7
20
7
9
8
14
7
6
17
13
8
19
18
7
4
7
5
8
15
1
16
8
21
7
12

Артикул

Название

Примечание

Количество

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, with integral differential lock solenoid valve, parts list figures 6-120 - 6-150, if used, Includes: Ref. 1 - 21

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291570A1

HOUSING

- transmission

1шт.

2

292412A1

DOWEL

PIN - dowel

2шт.

3

292165A1

PLUG

- special, Includes: Ref. 4

1шт.

4

238-7116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

5

292170A1

PLUG

- special, Includes: Ref. 6

1шт.

6

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

7

292164A1

PLUG

- special, Includes: Ref. 8

11шт.

8

238-7011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

1шт.

9

292414A1

PLUG

- drain, magnetic

1шт.

10

292417A1

CIRCLIP

RING - snap

1шт.

11

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

SEAL - plug

1шт.

12

292171A1

PLUG

- special

1шт.

13

291527A1

SEAL

SEAL - housing

1шт.

14

292173A1

PLUG

BUSHING - housing

1шт.

15

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

16

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

17

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

7шт.

18

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

7шт.

19

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

20

366661A1

PLUG

COVER - plug

1шт.

21

800-2168

SNAP RING,M68, Int

RING - external retaining, No. 68

1шт.

Выбрано товаров: 24
