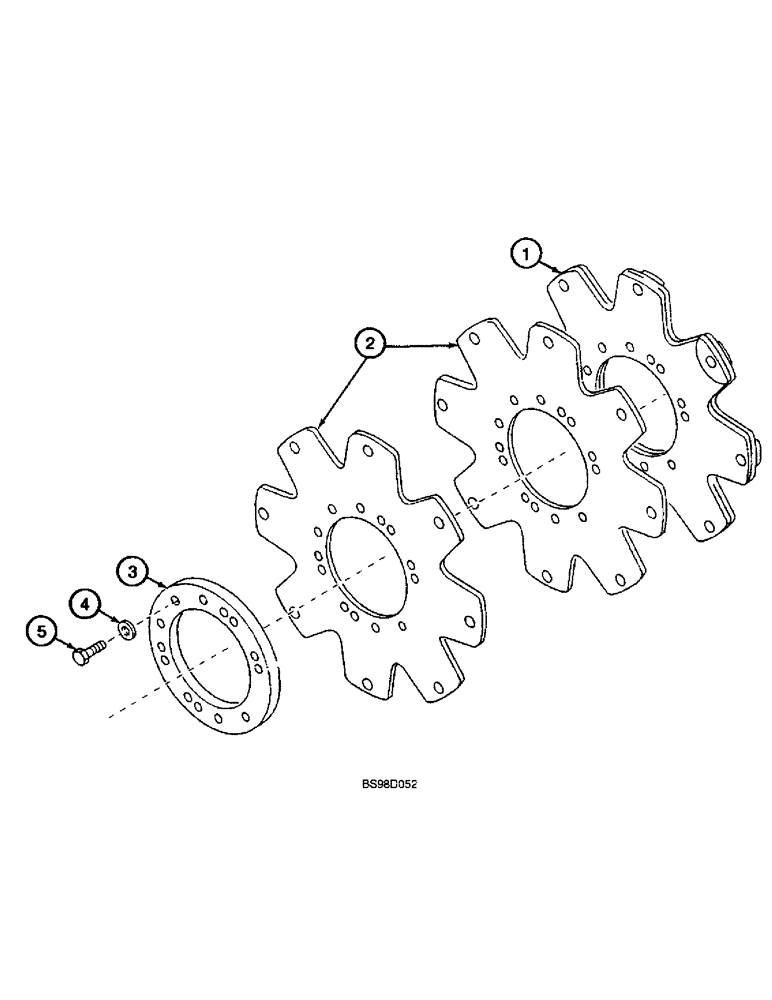

Запчасти Case 590SL (6-118) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, DRIVE PLATE (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, Replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 5

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291590A1

DRIVE ASSY.

KIT - drive plate assembly

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - face

2шт.

3

217558A1

FLANGE

BUSHING - plate

1шт.

4

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex, 3/8 NF x 1/2 inch, Replaces 314-610, 5/8 inch long bolt used on some models

6шт.
