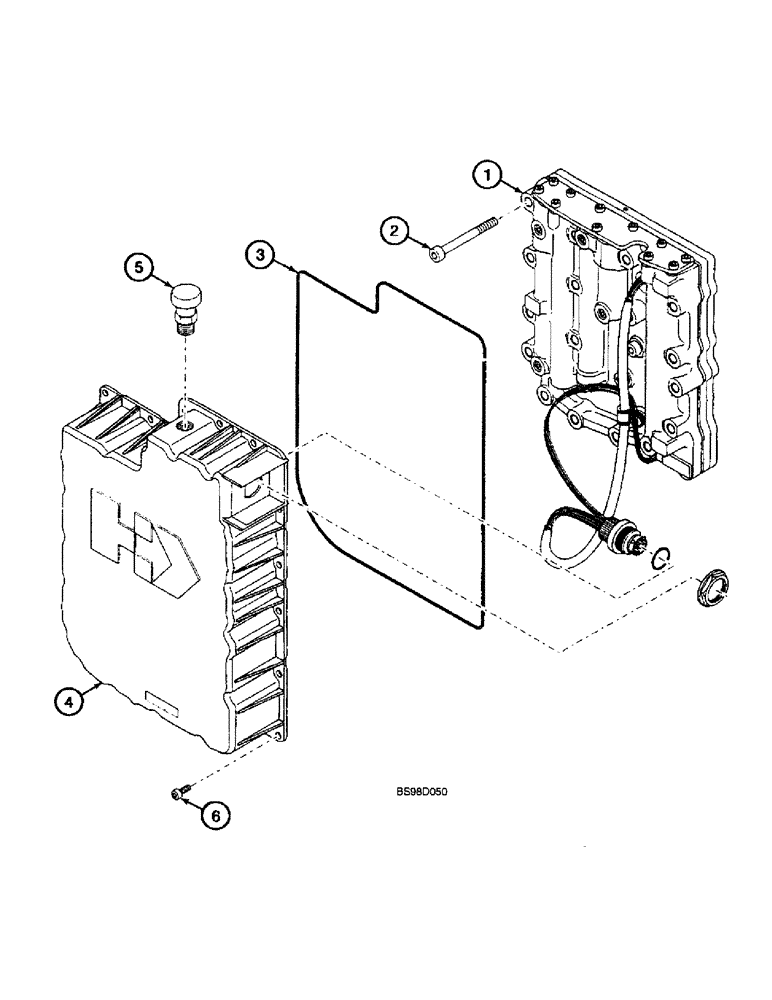

Запчасти Case 590SL (6-112) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE MOUNTING AND SEALING (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 6

1шт.

87420798R

REMAN-TRANSMISSION

Reman transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291576A1

CONTROL BLOCK

VALVE ASSEMBLY - transmission control, parts list figure 6-114

1шт.

2

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

BOLT - hex socket, 8 - 1.25 x 65 mm

17шт.

3

291545A1

SEAL

- control valve cover

1шт.

4

291577A1

HOUSING

- control valve, Includes: Ref. 5

1шт.

5

L33264

BREATHER

- housing

1шт.

6

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

20шт.
