(6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT

Запчасти Case 590SL (6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT (06) - POWER TRAIN

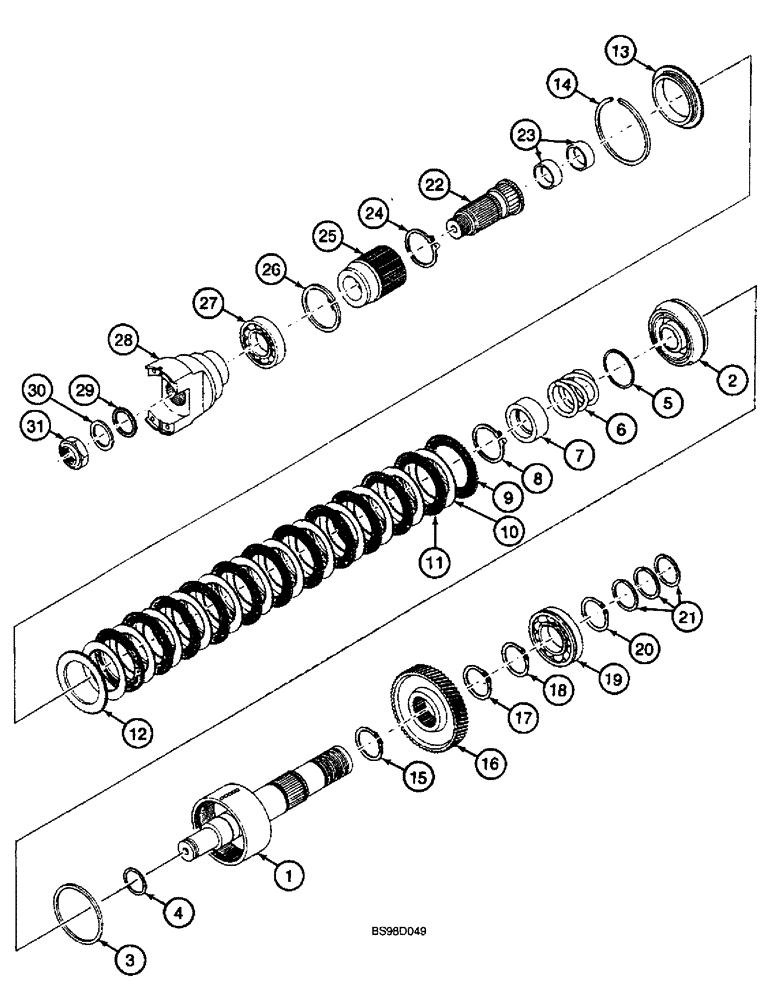

Схема запчастей Case 590SL - (6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT (06) - POWER TRAIN
13
23
30
16
14
27
18
20
10
7
1
12
31
26
19
6
11
5
17
24
28
2
22
8
29
3
9
4
25
21
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, Replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 6

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291562A1

ASSEMBLY

SHAFT - drum, front output, rear assembly, 199317A2 transmission

1шт.

1

305729A1

SHAFT

- drum, front output, rear assembly, 199317A3 or 199317A4 transmission

1шт.

2

291520A1

PISTON

- clutch, Includes: Ref. 3 and 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston

1шт.

5

291529A1

RING

RING - wear

1шт.

6

291531A1

SPRING

- return

1шт.

7

291530A1

RETAINER

SEAT - spring

1шт.

8

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

9

291578A1

DISC

- friction, external

1шт.

10

291580A1

DISC

- friction, internal

12шт.

11

291579A1

DISC

- friction, external

11шт.

12

291578A1

DISC

- friction, external

1шт.

13

291571A1

DISC

PLATE - backing, clutch disc

1шт.

14

292415A1

RING, SNAP

RING - retaining

1шт.

15

800-1165

SNAP RING,M65, Ext

RING - external retaining, No. 65

1шт.

16

291554A1

PINION

GEAR - lower output, 39 teeth

1шт.

17

800-1165

SNAP RING,M65, Ext

RING - external retaining, No. 65

1шт.

18

800-1160

SNAP RING,M60, External

RING, SNAP, M60, Ext

1шт.

19

292434A1

BALL BEARING,60mm ID x 110mm OD x 22mm W

- ball

1шт.

20

800-1160

SNAP RING,M60, External

RING, SNAP, M60, Ext

1шт.

21

291540A1

SEALING RING

RING - seal

3шт.

22

291575A1

PINION

SHAFT - front output, front assembly, Includes: Ref. 23

1шт.

23

292175A1

BUSHING

- shaft

2шт.

24

800-5160

SNAP RING,M60, Ext

RING - external heavy retaining, No. 60

1шт.

25

291559A1

PINION

HUB - disconnect

1шт.

26

800-21100

SNAP RING,Int, M100 x 3

RING, SNAP, Int, M100 x 3

1шт.

27

292424A1

BALL BEARING

- ball

1шт.

28

291524A1

SHIN

FLANGE - output yoke

1шт.

29

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

30

S89696

WASHER

- special

1шт.

31

S89695

NUT

- hex, 1-1/4 inch - 12 NF

1шт.
