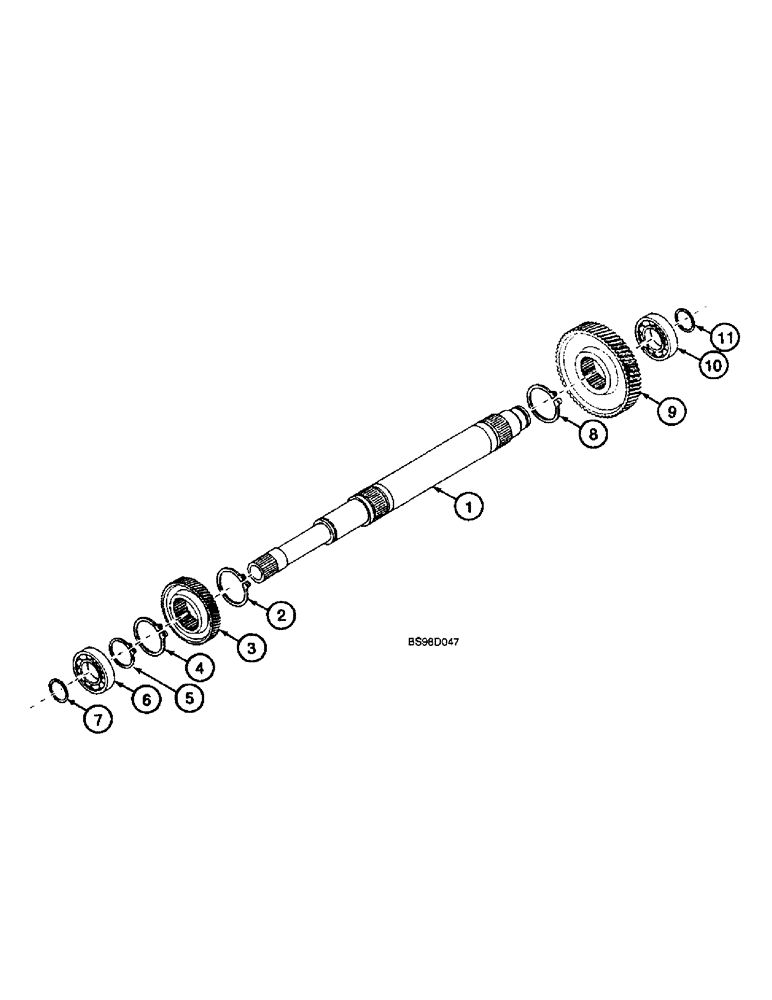

Запчасти Case 590SL (6-106) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, PUMP DRIVE (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 6-118, Replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 11

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291563A1

SHAFT

- input

1шт.

2

800-5150

SNAP RING,M50, Ext

RING - external heavy retaining, No. 50

1шт.

3

291549A1

PINION

GEAR - forward low, 26 teeth

1шт.

4

800-1150

SNAP RING,M50, Ext

RING - external retaining, No. 50

1шт.

5

800-1140

SNAP RING,M40, Ext

Retaining M40, Ext

1шт.

6

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

- ball

1шт.

7

291528A1

SEALING RING

RING - seal

1шт.

8

800-1150

SNAP RING,M50, Ext

RING - external retaining, No. 50

1шт.

9

291548A1

PINION

GEAR - forward high, 62 teeth

1шт.

10

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

- ball

1шт.

11

291528A1

SEALING RING

RING - seal

1шт.
