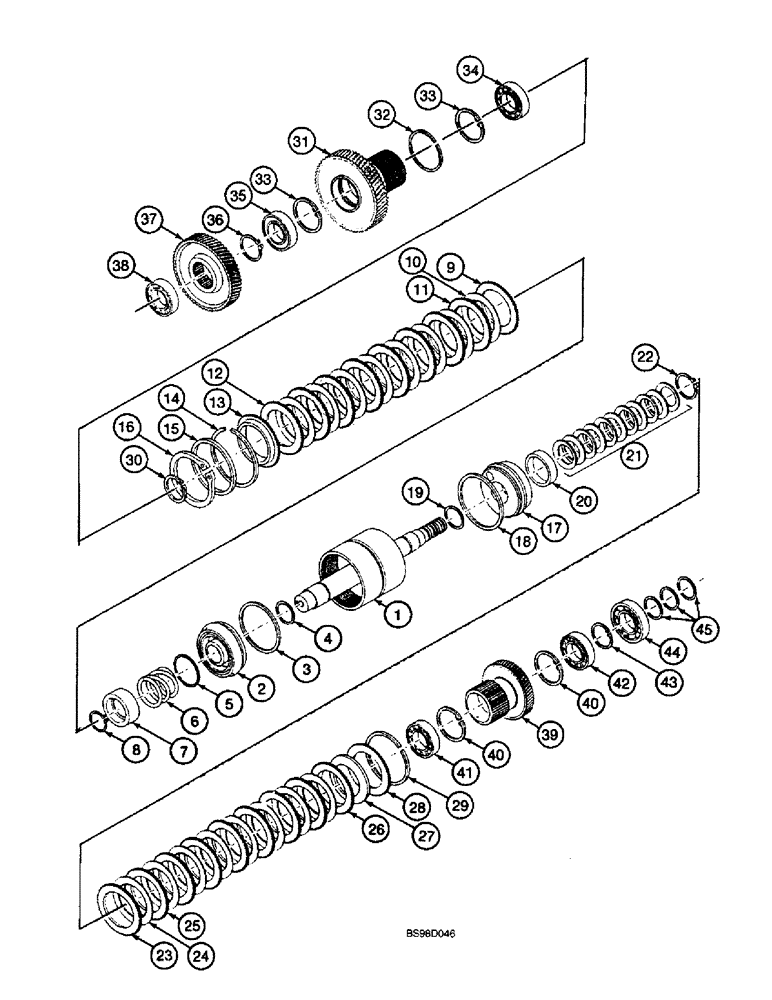

Запчасти Case 590SL (6-102) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, FIRST GEAR - REVERSE DRIVE (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, Replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 45

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291560A1

ASSEMBLY

SHAFT - drum, reverse/first, no longer available, order 305726A1 shaft, 305727A1 shaft and 305730A1 wear ring

1шт.

305726A1

SHAFT

- drum, forward low/high

1шт.

305727A1

SHAFT

- drum, reverse/first

1шт.

305730A1

PLATE

RING - wear, clutch piston

1шт.

2

291520A1

PISTON

- clutch, Includes: Ref. 3 and 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston

1шт.

5

291529A1

RING

RING - wear

1шт.

6

291531A1

SPRING

- return, piston

1шт.

7

291530A1

RETAINER

SEAT - spring

1шт.

8

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

9

291578A1

DISC

- friction, external

1шт.

10

291580A1

DISC

- friction, internal

8шт.

11

291579A1

DISC

- friction, external

7шт.

12

291578A1

DISC

- friction, external

1шт.

13

291566A1

DISC

PLATE - backing, clutch disc

1шт.

14

292415A1

RING, SNAP

RING - retaining

1шт.

15

291567A1

SPACER

- clutch disc backing plate

1шт.

16

800-11115

SNAP RING,M115, Ext

RING - external retaining, No. 115

1шт.

17

291520A1

PISTON

- clutch, Includes: Ref. 18 and 19

1шт.

18

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston

1шт.

19

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston

1шт.

20

291526A1

SPACER

RING - wear, clutch piston, 199317A2 transmission

1шт.

20

305730A1

PLATE

RING - wear, clutch piston, 199317A3 or 199317A4 transmission

1шт.

21

291591A1

KIT

KIT - Belleville spring, piston return

1шт.

22

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

23

291578A1

DISC

- friction, external

1шт.

24

291580A1

DISC

- friction, internal

8шт.

25

291579A1

DISC

- friction, external

7шт.

26

291578A1

DISC

- friction, external

1шт.

27

291533A1

WASHER

SPACER - clutch

1шт.

28

291571A1

DISC

PLATE - backing, clutch disc

1шт.

29

292415A1

RING, SNAP

RING - retaining

1шт.

30

800-1150

SNAP RING,M50, Ext

RING - external retaining, No. 50

1шт.

31

291558A1

PINION

GEAR - 54 teeth, forward reverse clutch

1шт.

32

291573A1

CIRCLIP

RING - retaining

1шт.

33

800-2180

SNAP RING,M80, Int

Retaining M80, Int

2шт.

34

292426A1

BALL BEARING

- ball

1шт.

35

292431A1

BALL BEARING

- ball

1шт.

36

800-1150

SNAP RING,M50, Ext

RING - external retaining, No. 50

1шт.

37

291552A1

PINION

GEAR - reverse driven, 50 teeth

1шт.

38

292432A1

BALL BEARING

- ball

1шт.

39

291557A1

PINION

GEAR - first clutch, 30 teeth

1шт.

40

800-2175

SNAP RING,M75, Int

RING - internal retaining, No. 75

2шт.

41

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball

1шт.

42

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

- ball

1шт.

43

800-1145

SNAP RING,M45, Ext

- external retaining, No. 45

1шт.

44

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

- ball

1шт.

45

291528A1

SEALING RING

RING - seal

3шт.
