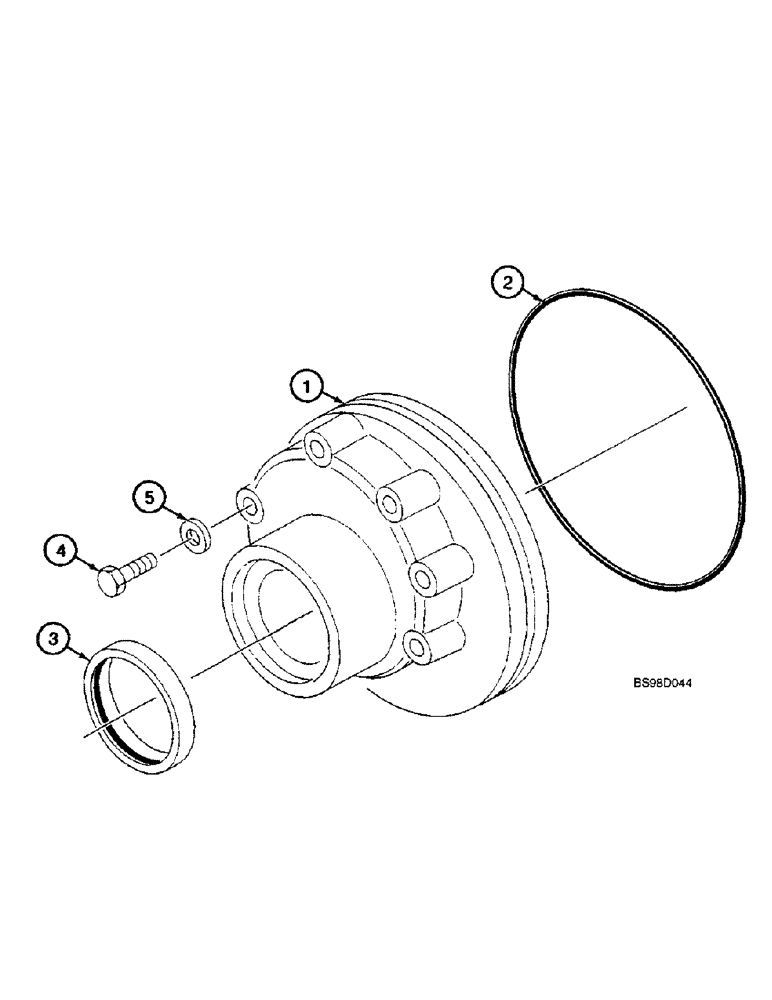

Запчасти Case 590SL (6-096) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, OIL PUMP (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, Replaces 199317A2 and 199317A3, if used, Includes: Ref. 1 - 5

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291523A1

PUMP

ASSEMBLY - charging, Includes: Ref. 2 and 3

1шт.

2

292420A1

O-RING

SEAL - pump

1шт.

3

292174A1

OIL SEAL

SEAL - ring

1шт.

3

292174A1

OIL SEAL

SEAL - ring

1шт.

4

815-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

- hex, 8 - 1.25 x 55 mm

6шт.

5

291535A1

WASHER

- flat

6шт.
