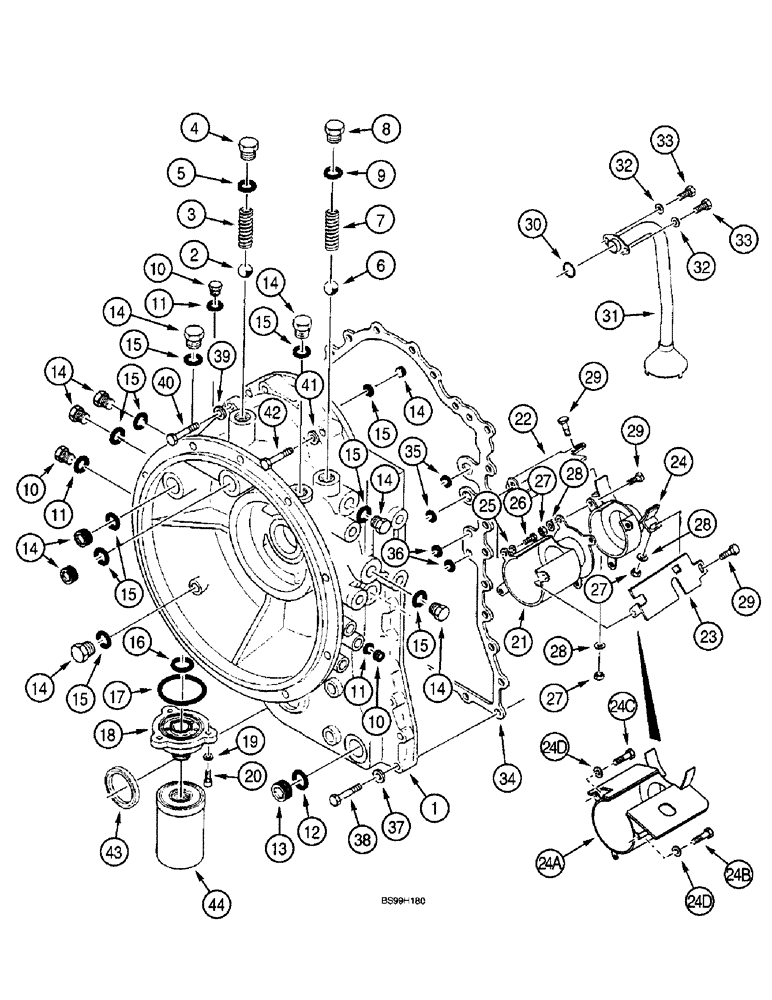

Запчасти Case 590SL (6-088) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, HOUSING AND OIL FILTER (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION ASSEMBLY - four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list figures 6-88 - 6-118, Replaces 199317A2 and 199317A3, if used, see figure 6-120 for 336896A1 transmission, Includes: Ref. 1 - 44

1шт.

87420798R

REMAN-TRANSMISSION

Reman - transmission, powershift

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291547A1

HOUSING

- converter

1шт.

2

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

1шт.

3

291568A1

SPRING

- detent, bypass

1шт.

4

292413A1

PLUG

- special, Includes: Ref. 5

1шт.

5

238-7119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Plug -119, Cl 7, .924" ID x .103" Thk

1шт.

6

511-10250

BALL,25mm Dia

- 25 mm, grade 28, chrome alloy steel

1шт.

7

291525A1

SPRING

- detent, valve

1шт.

8

292166A1

PLUG

- special, Includes: Ref. 9

1шт.

9

238-7123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 7, 75 Duro

1шт.

10

292164A1

PLUG

- special, Includes: Ref. 11

3шт.

11

238-7011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - not used

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - special, not used

1шт.

14

292165A1

PLUG

- special, Includes: Ref. 15

10шт.

15

238-7116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

16

292419A1

O-RING

- filter adapter

1шт.

17

238-5150

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

1шт.

18

291536A2

SUPPORT

ADAPTER - filter, steel, Replaces 291536A1 aluminum adapter

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

3шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

3шт.

21

291581A1

DEFLECTOR

HOUSING - oil, no longer available, order 305725A1, Ref. 24A

1шт.

22

291583A1

DEFLECTOR

PLATE - oil, no longer available, order 305725A1, Ref. 24A

1шт.

23

291584A1

DEFLECTOR

PLATE - oil, no longer available, order 305725A1, Ref. 24A

1шт.

24

291582A1

DEFLECTOR

HOUSING - oil, no longer available, order 305725A1, Ref. 24A

1шт.

24a

305725A1

BAFFLE

- oil, replaces Ref 21 - 24 on some models

1шт.

24b

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 16 mm, class 12.9, used with Ref. 24A

2шт.

24c

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, Used with Ref. 24A

1шт.

24d

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm, Used with Ref. 24A

3шт.

25

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm, If used

3шт.

26

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 16 mm, class 12.9, if used

3шт.

27

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10, if used

5шт.

28

892-11006

LOCK WASHER,M6

WASHER, LOCK, , If Used M6

5шт.

29

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, , If Used Hex Soc Hd, M6 x 16, 8.8

5шт.

30

238-7218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 7, 75 Duro

1шт.

31

291565A1

TUBE

- suction

1шт.

32

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

33

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 16 mm, class 12.9

2шт.

34

291543A1

GASKET

- housing

1шт.

35

238-9019

O-RING,-019, Cl 9, .801" ID x .070" Thk

2шт.

36

238-7013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

2шт.

37

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

14шт.

38

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 - 1.5 x 50 mm, class 10.9

14шт.

39

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

1шт.

40

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

41

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

5шт.

42

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

5шт.

43

291527A1

SEAL

SEAL - housing

1шт.

44

291538A1

FILTER ASSY

FILTER - transmission, if used

1шт.

44

372246A1

FILTER ASSY

FILTER - transmission, if used

1шт.
