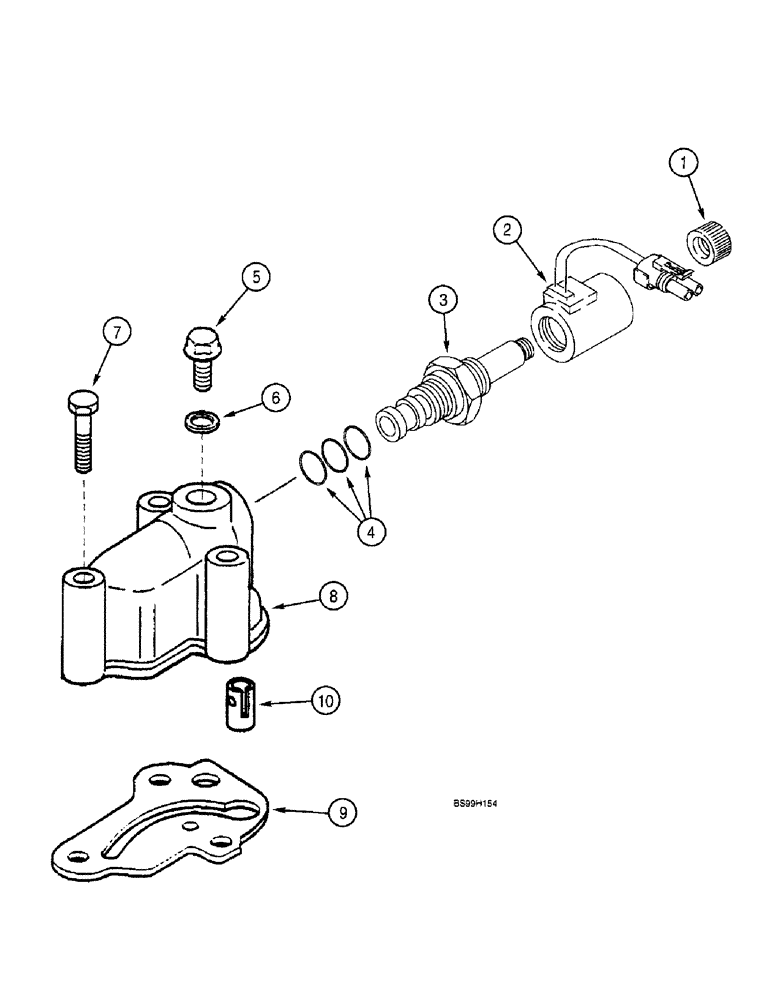

Запчасти Case 590SL (6-086) - CARRARO TRANSMISSION ASSEMBLY, SOLENOID VALVE - 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 10

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 10

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY - solenoid, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT - seal, solenoid, includes (1 each) 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order 190432A1 valve

1шт.

5

181100A1

PLUG,1/8 CAS x 8

- valve

1шт.

6

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

321428A1

HOUSING

BODY - solenoid valve

1шт.

9

366910A1

GASKET

GASKET - body to transmission housing

1шт.

10

190431A1

VALVE

- solenoid, installed between Ref. 8 and 9

1шт.
