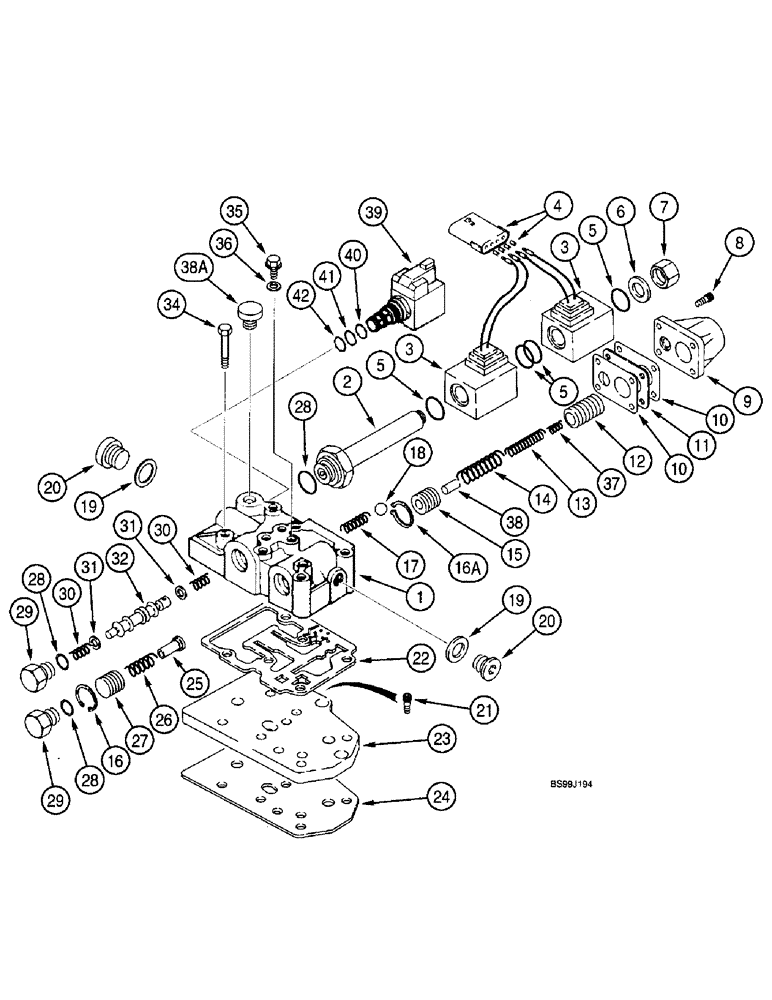

Запчасти Case 590SL (6-082) - CARRARO TRANSMISSION ASSEMBLY, TRANSMISSION CONTROL VALVE, 2WD OR 4WD, MODELS W/O POWERSHIFT (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 42

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 42

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 42

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 42

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

335640A2

VALVE

ASSEMBLY - transmission control, includes 349295A1 differential lock solenoid valve, (Ref. 39), Replaces 335640A1, Includes: Ref. 1 - 42

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

2

190442A1

PLUNGER

- solenoid

1шт.

3

190443A1

COIL

- solenoid

2шт.

4

190437A1

FITTING

CONNECTOR - solenoid

1шт.

5

181136A1

O-RING

- sealing

4шт.

6

181273A1

COPPER WASHER

WASHER - sealing, steel

1шт.

7

181272A1

PLUG

- hex, cap

1шт.

8

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

9

181251A1

COVER

- modulation

1шт.

10

181256A1

GASKET

GASKET - cover

2шт.

Part of Service Kits, P/N's 368437A1 and 368438A1

1шт.

11

190439A2

SPACER

- gasket, Replaces 190439A1

1шт.

12

190438A2

PISTON

- modulation, outer, Replaces 190438A1

1шт.

13

190436A1

SPRING

- inner

1шт.

14

190441A1

SPRING

- outer

1шт.

15

181234A2

PISTON

- modulation, inner, Replaces 181234A1

1шт.

Part of Service Kits, P/N's 368437A1 and 368438A1

1шт.

16

299324A1

CIRCLIP

RING - snap

1шт.

16a

368436A1

CIRCLIP

RING - snap, special

1шт.

Part of Service Kits, P/N's 368437A1 and 368438A1

1шт.

17

181261A1

SPRING

- check

1шт.

18

181146A1

BALL

- check

1шт.

19

181107A1

COPPER WASHER

WASHER - sealing, copper

2шт.

20

181103A1

PLUG

- oil

2шт.

21

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

Not included in 335640A2 control valve, purchase separately.

1шт.

22

181166A1

GASKET

GASKET - body to valve plate

1шт.

Not included in 335640A2 control valve, purchase separately.

1шт.

Part of Service Kits, P/N's 368437A1 and 368438A1

1шт.

23

181207A1

PLATE

Valve

1шт.

Not included in 335640A2 control valve, purchase separately.

1шт.

24

181208A1

GASKET

GASKET - valve plate to transmission housing

1шт.

Not included in 335640A2 control valve, purchase separately.

1шт.

25

181254A1

SHAFT

- flow divider

1шт.

Part of Service Kits, P/N's 368437A1 and 368438A1

1шт.

26

181260A1

SPRING

- piston

1шт.

27

181255A2

PISTON

- flow divider, Replaces 181255A1

1шт.

28

181137A1

O-RING

- plug

3шт.

29

181258A1

PLUG

- valve

2шт.

30

334724A1

SPRING

- spool

2шт.

31

181253A1

SPACER

- spring

2шт.

32

334725A1

PLUNGER

SPOOL - forward/reverse

1шт.

34

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

6шт.

35

181100A1

PLUG,1/8 CAS x 8

- valve

4шт.

36

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

4шт.

37

190435A1

SPRING

- piston, outer modulation

1шт.

38

190440A1

PIN

- piston, inner modulation

1шт.

38a

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

39

349295A1

SOLENOID VALVE

VALVE ASSEMBLY - differential lock solenoid, 2 gpm, Includes: Ref. 40 - 42

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

42

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

NSS

NOT SOLD SEPARAT

VALVE - solenoid, cartridge, component parts are not serviced separately

1шт.

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT - jam

1шт.

368437A1

KIT

- service, snap ring, without tools, includes Ref. 10, 15, 16A, 22 and 25 plus instructions

1шт.

Not included in 335640A2 control valve, purchase separately.

1шт.

368438A1

KIT

- service, snap ring, with tools, includes parts in 368437A1 kit, plus 368439A1 guide tool and 368440A1 pushing tool for snap ring service

1шт.

Not included in 335640A2 control valve, purchase separately.

1шт.
