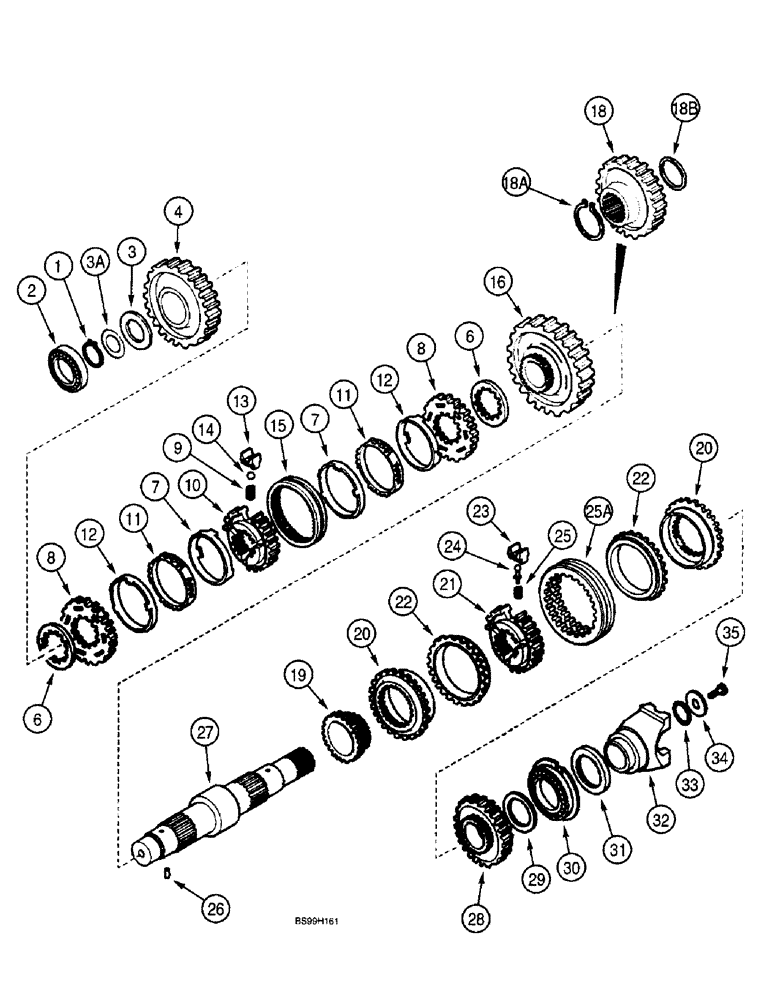

Запчасти Case 590SL (6-076) - CARRARO TRANSMISSION ASSEMBLY, SECONDARY SHAFT, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 35

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 35

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 35

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 35

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING - lock

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING - roller

1шт.

3

358649A1

THRUST WASHER

- thrust

1шт.

3a

358650A1

SHIM,0.05mm Thk

- 0.05 mm

1шт.

3a

358651A1

SHIM,0.1mm Thk

- 0.10 mm

1шт.

3a

358652A1

SHIM,0.3mm Thk

- 0.30 mm

1шт.

3a

196454A1

SHIM,0.5mm Thk

- 0.50 mm thick

1шт.

4

358648A1

PINION,43T

GEAR - driven, second, 43 teeth

1шт.

6

244109A1

SPACER

- gear to synchronizer ring

4шт.

190427A1

SYNCHRONIZER,90T

KIT - synchronizing service, component parts not serviced separately, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

RING - friction

2шт.

8

NSS

NOT SOLD SEPARAT

RING - synchronizer

2шт.

9

NSS

NOT SOLD SEPARAT

SPRING - hub

3шт.

10

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

11

NSS

NOT SOLD SEPARAT

RING - synchronizer

2шт.

12

NSS

NOT SOLD SEPARAT

RING - steel

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - spring

3шт.

14

NSS

NOT SOLD SEPARAT

BALL - hub

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - hub

1шт.

16

358647A1

PINION,49T

GEAR - driven, first, 49 teeth

1шт.

18

358656A1

GEAR,44T

- drive, MFD, four wheel drive

1шт.

18a

358654A1

RING, SNAP,65.5mm ID, Ext

RING - snap, four wheel drive

1шт.

18b

358655A1

RING, SNAP,67.4mm ID, Ext

RING - retaining, four wheel drive

1шт.

19

358282A1

GEAR,23T

- driven, fourth, 23 teeth

1шт.

366398A1

SYNCHRONIZER

KIT - synchronizing service, component parts not serviced separately, Includes: Ref. 20 - 35

1шт.

20

NSS

NOT SOLD SEPARAT

RING - clutch

2шт.

21

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

22

NSS

NOT SOLD SEPARAT

RING - friction

2шт.

23

NSS

NOT SOLD SEPARAT

PLATE - spring

3шт.

24

NSS

NOT SOLD SEPARAT

PIN - hub

3шт.

25

NSS

NOT SOLD SEPARAT

SPRING - hub

3шт.

25a

NSS

NOT SOLD SEPARAT

SLEEVE - hub

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN - roll

1шт.

27

366366A1

SHAFT

- secondary, two wheel drive

1шт.

27

358653A1

SHAFT

- secondary, four wheel drive

1шт.

28

358283A1

DRIVEN GEAR,33T

GEAR, DRIVEN, third, 33 teeth

1шт.

29

358639A1

WASHER

- thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

BEARING - ball

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

SEAL - oil, 60 x 75 x 8 mm

1шт.

32

233284A1

YOKE

shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

- flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

- flat, special, 52 x 12.5 x 5 mm

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

- locking, special, 12 - 1.25 x 25 mm

1шт.
