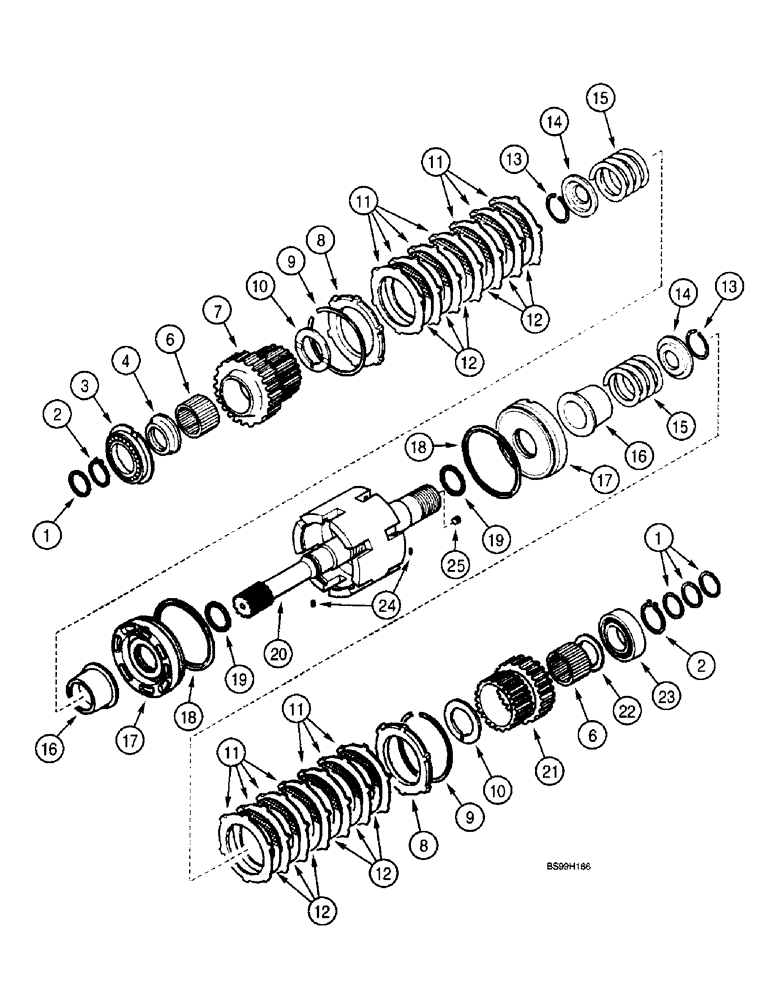

Запчасти Case 590SL (6-074) - CARRARO TRANSMISSION ASSEMBLY, INPUT SHAFT, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 25

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 25

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 25

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 25

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

358645A1

SEALING RING

SEAL - oil

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

4

358635A1

SPACER

- 68 x 45 x 105 mm, bearing

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

BEARING - needle

2шт.

7

358632A1

PINION,35T

GEAR - input shaft, 35 teeth

1шт.

8

310519A1

PLATE

- thrust, 6.2 mm thick tabs

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING - lock

2шт.

10

358640A1

WASHER

WASHER, THRUST

2шт.

11

181159A1

DISC

PLATE - disc, intermediate

14шт.

12

181158A1

CLUTCH DISC

PLATE - disc, clutch

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING - snap

2шт.

14

181161A1

PLATE, THRUST

PLATE - pressure

2шт.

15

358637A1

SPRING

- detent

2шт.

16

358641A1

TRANSMISSION SLEEVE

SLEEVE - clutch

2шт.

17

358644A1

PISTON

- shaft

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

RING - seal

2шт.

19

358642A1

SEALING RING

RING - seal, small

2шт.

20

358631A1

SHAFT

- input

1шт.

21

358638A1

PINION,39T

GEAR - shaft, 29 teeth

1шт.

22

358639A1

WASHER

- thrust, 68 x 45 x 4 mm

1шт.

23

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN - roll

2шт.

25

D142898

PLUG,M10 x 1

- shaft

2шт.
