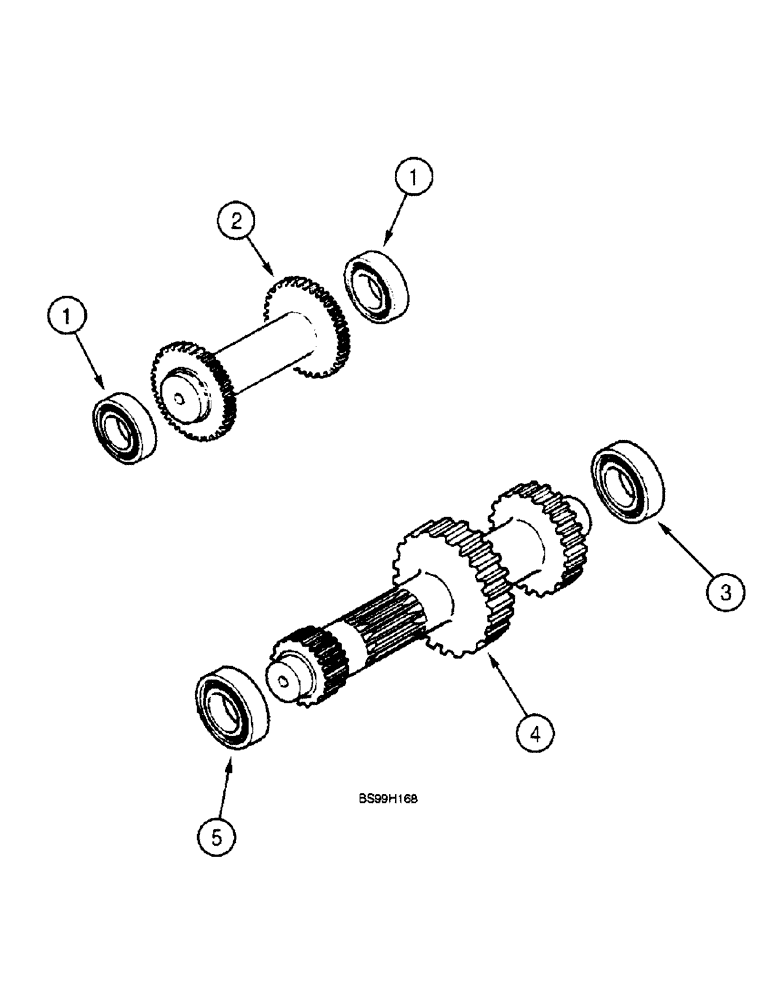

Запчасти Case 590SL (6-072) - CARRARO TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball

2шт.

2

358636A1

SHAFT,27T

- idler

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball

1шт.

4

358646A1

SHAFT

- primary

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING - roller

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

1шт.
