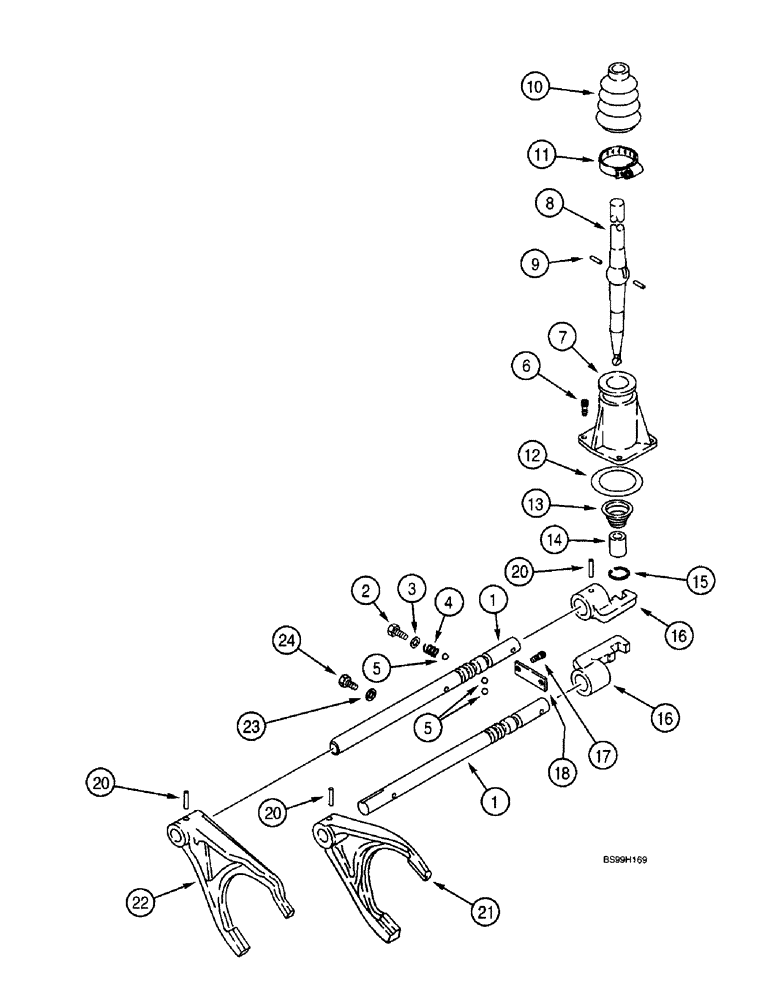

Запчасти Case 590SL (6-070) - CARRARO TRANSMISSION ASSEMBLY, TRANS. SHIFTER MECHANISM, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 24

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 24

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 24

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 24

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181245A2

SHIFT RAIL

RAIL, SHIFT, Fork, First and second, third and fourth

2шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm

2шт.

3

1966835C1

SEALING WASHER

- flat, special, 12 x 16 x 1.5 mm

2шт.

4

1966993C1

SPRING

- detent

2шт.

5

181139A1

BALL,10mm OD

- detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

7

181171A1

COVER

- shift lever

1шт.

8

190428A3

LEVER

- shift

1шт.

9

1967585C1

PIN

- shift lever

2шт.

10

1967581C1

BOOT

- rubber

1шт.

11

181177A1

CLAMP

- adjustable

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

- sealing

1шт.

13

278533A1

SPRING

- shift lever

1шт.

14

278532A1

BUSHING

Shift lever

1шт.

15

279039A1

RING, SNAP

RING - external retaining

1шт.

16

181173A1

SELECTOR

SHIFTER - rail

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 25 mm

2шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

20

905794R1

PIN,M6 x 30, Coiled

- roll, 6 x 30 mm

4шт.

21

181203A1

SHIFTER FORK

FORK - gear shift, first and second

1шт.

22

366909A1

SHIFTER FORK

FORK - gear shift, third and fourth

1шт.

23

181104A1

COPPER WASHER

WASHER - sealing, copper

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.
