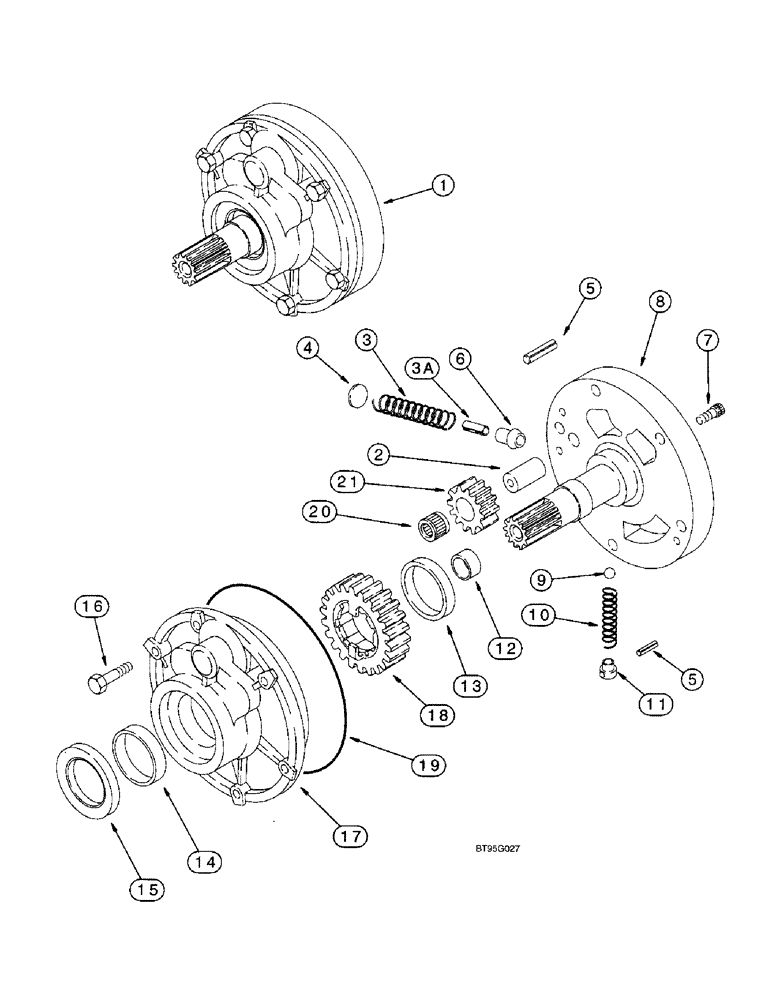

Запчасти Case 590SL (6-068) - CARRARO TRANSMISSION ASSEMBLY, OIL PUMP, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY - two wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 21

1шт.

329076A3R

REMAN-TRANSMISSION

Two wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-84, Includes: Ref. 1 - 21

1шт.

329076A3C

CORE-TRANSMISSION

Return Number

1шт.

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 21

1шт.

329079A3R

REMAN-TRANSMISSION

Four wheel drive, with integrated differential lock solenoid valve, parts list figures 6-62 - 6-86, Includes: Ref. 1 - 21

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181199A4

PUMP

ASSEMBLY - oil, transmission, Carraro No. CA134725

1шт.

1

181199A4R

REMAN-HYD PUMP

590SL Series 2

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

247744A1

SHAFT

- small, not available for service, order 181199A4 pump

1шт.

3

181270A1

SPRING

- detent, not available for service, order 181199A4 pump

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN - valve, order 247749A1 piston valve kit below

1шт.

Part of Piston Valve Kit, P/N 247749A1

1шт.

4

198713A1

WASHER

STOP - spring, not available for service, order 181199A4 pump

1шт.

5

181109A1

SPLIT PIN

PIN - roll, 5 x 22 mm, not available for service, order 181199A4 pump

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - piston, order 247749A1 piston valve kit below

1шт.

Part of Piston Valve Kit, P/N 247749A1

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order 181199A4 pump Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT - pump

1шт.

9

181145A1

BALL

- check, not available for service, order 181199A4 pump

1шт.

10

181214A1

SPRING

- detent, not available for service, order 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE - spring, not available for service, order 181199A4 pump

1шт.

12

181215A1

BUSHING

- pump support, small, not available for servide, order 181199A4 pump

1шт.

13

247746A1

BUSHING

- pump support, large, not available for servide, order 181199A4 pump

1шт.

14

181216A1

BUSHING

- pump housing

1шт.

15

181205A1

OIL SEAL

SEAL - oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

18

247748A1

PINION

GEAR, 23 teeth, charge pump, large, not available for service, order 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

- pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING - needle, not available for service, order 181199A4 pump

1шт.

21

181218A1

PINION

GEAR - small, 12 teeth, not available for service, order 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT - piston valve, not available for service, order 181199A4 pump, Includes Ref. 3A and 6

1шт.
