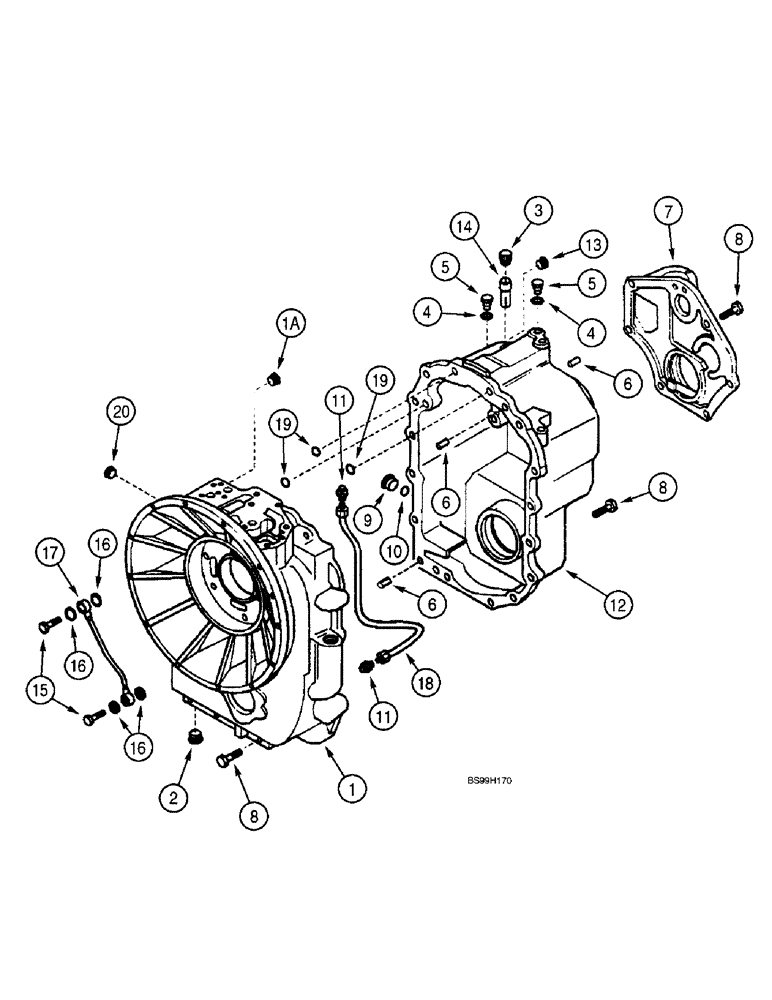

Запчасти Case 590SL (6-066) - CARRARO TRANSMISSION ASSEMBLY, TRANSMISSION HOUSING - 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

329079A1

TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62-6-86, Includes: Ref. 1 - 20

1шт.

329079A3R

REMAN-TRANSMISSION

ASSEMBLY - four wheel drive, new, with integrated differential lock solenoid valve, parts list figures 6-62-6-86, Includes: Ref. 1 - 20

1шт.

329079A3C

CORE-TRANSMISSION

Return Number

1шт.

1

310766A1

HOUSING

- front half, use with Loctite 510 or 518 as a gasket eliminator, Includes: Ref. 1A

1шт.

1a

E135809

PLUG

- housing

1шт.

2

239606A1

PLUG

- housing, oil passage port

1шт.

3

1530028C1

BREATHER

Housing

1шт.

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

TUBE, Oil, Breather, 18 OD x 42 mm long, Not shown

1шт.

4

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

3шт.

5

181100A1

PLUG,1/8 CAS x 8

- housing

3шт.

6

K260177

PIN

- dowel, special, 10 x 25 mm

3шт.

7

181197A1

COVER

- housing, rear half, use with Superbond 539 as a gasket eliminator

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

23шт.

9

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain, Includes: Ref. 10

1шт.

10

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

11

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 1/2-20 flare x 1/4 inch PT

2шт.

12

310765A1

HOUSING

- rear half, use with Superbond 539 as a gasket eliminator, Includes: Ref. 13 and 14

1шт.

13

E135809

PLUG

- housing, if used

1шт.

14

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

TUBE, Oil, Breather, 18 OD x 42 mm long

1шт.

15

181179A1

BANJO BOLT

BOLT, BANJO, Hex, Special

2шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

WASHER - flat, copper, special, 14 x 20 x 1.5 mm

4шт.

17

181232A1

TUBE

- oil lubrication

1шт.

18

181176A1

TUBE

- oil

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

- housing

3шт.

20

181101A1

PLUG,M14 x 1.5

- M14 x 1.5

1шт.
