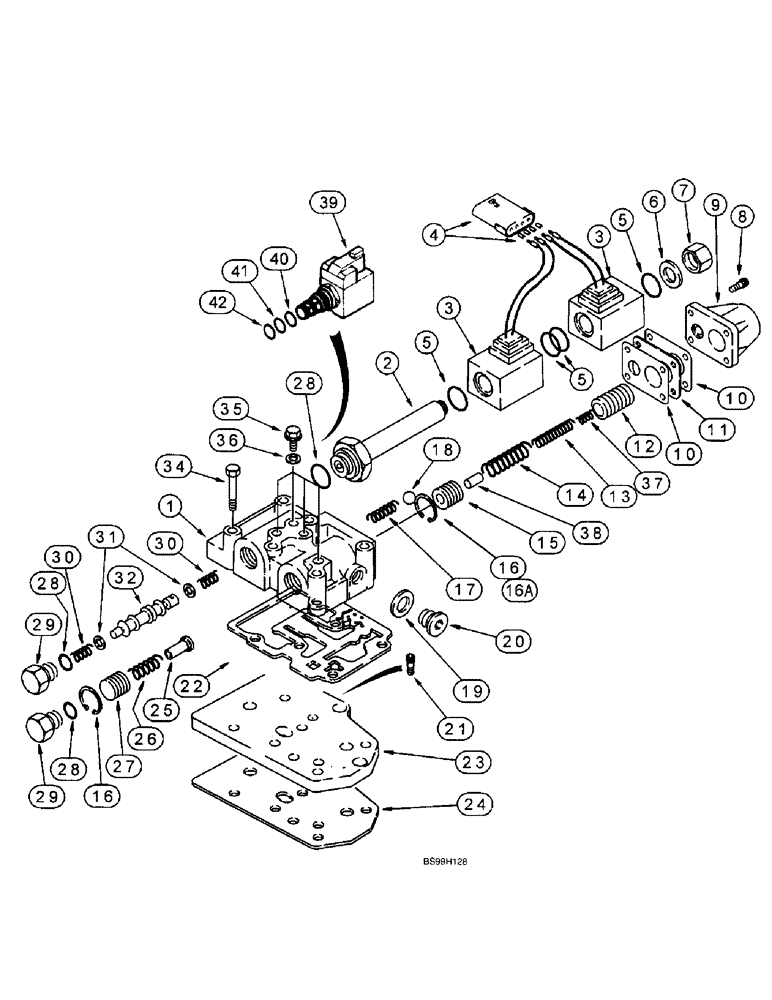

Запчасти Case 590SL (6-056) - CARRARO TRANSMISSION ASSEMBLY, TRANSMISSION CONTROL VALVE, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - two or four wheel drive, see figure 6-34 for 123842A3 or 123843A3 transmission descriptions, parts list figures 6-34-6-60, Includes: Ref. 1 - 25

1шт.

See figure 6-34 for explanation when replacing an A2 transmission with an A3 transmission. Not included in 334558A1 or 335640A1 control valve, purchase separately.

1шт.

190434A1

VALVE

ASSEMBLY - transmission control, without differential lock solenoid valve, (Ref. 39-41) used in A2 or A3 transmissions with chassis mounted solenoid valve, see fig. 6-156 no longer available, order 334558A1 control valve

1шт.

334558A1

VALVE

ASSEMBLY - transmission control, without differential lock solenoid valve & 4WD (Ref. 39-41) used in A2 or A3 transmissions with chassis mounted solenoid valve, see fig. 6-156, if used

1шт.

334558A2R

REMAN-HYD VALVE

590SL Series 2, For Use w/Transmissions w/Chassis Mounted Solenoid Valve & 4WD, Reman For New P/N's 334558A1 & 334558A2.

1шт.

334558A2C

CORE-VALVE HYD

Return Number,

1шт.

335640A1

VALVE

ASSEMBLY - transmission control, includes 349295A1 differential lock solenoid valve & 2WD (Ref. 39-41), used in A3 transmissions, if used

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

2

190442A1

PLUNGER

- solenoid

1шт.

3

190443A1

COIL

- solenoid

2шт.

4

190437A1

FITTING

CONNECTOR - solenoid

1шт.

5

181136A1

O-RING

- sealing

4шт.

6

181273A1

COPPER WASHER

WASHER - sealing, steel

1шт.

7

181272A1

PLUG

- hex, cap

1шт.

8

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

9

181251A1

COVER

- modulation

1шт.

10

181256A1

GASKET

GASKET - cover

2шт.

Part of service kit 368438A1

1шт.

11

190439A1

SPACER

- gasket

1шт.

12

190438A1

PISTON

- modulation, outer

1шт.

13

190435A1

SPRING

Medium, 8.5 ID x 11.5 OD x 63 mm free length; inner

1шт.

14

190441A1

SPRING

Large, 12.2 ID x 17.6 OD x 65.5 mm free length; outer

1шт.

15

181234A1

PISTON

- modulation, inner

1шт.

Part of service kit 368438A1

1шт.

16

299324A1

CIRCLIP

RING - snap

1-2шт.

16a

368436A1

CIRCLIP

RING - snap, special, 334558A1 or 335640A1 control valve

1шт.

Part of service kit 368438A1

1шт.

17

181261A1

SPRING

- check

1шт.

18

181146A1

BALL

- check

1шт.

19

181107A1

COPPER WASHER

WASHER - sealing, copper

1шт.

20

181103A1

PLUG

- oil

1шт.

21

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

Not included in 334558A1 or 335640A1 control valve, purchase separately.

1шт.

22

181166A1

GASKET

GASKET - body to valve plate

1шт.

Order service kit 368438A1

1шт.

Not included in 334558A1 or 335640A1 control valve, purchase separately.

1шт.

23

181207A1

PLATE

Valve

1шт.

Not included in 334558A1 or 335640A1 control valve, purchase separately.

1шт.

24

181208A1

GASKET

GASKET - valve plate to transmission housing

1шт.

Part of service kit 368438A1

1шт.

25

181254A1

SHAFT

- flow divider

1шт.

Part of service kit 368438A1

1шт.

368437A1

KIT

- service, snap ring, without tools, includes Ref. 10, 15, 16A 22 and 25, plus instructions, Includes: Ref. 26 - 42

1шт.

Part of service kit 368438A1

1шт.

368438A1

KIT

- service, snap ring, with tools, includes parts in 368437A1 kit, plus 368439A1 guide tool and 368440A1 pushing tool for snap ring service, Includes: Ref. 26 - 42

1шт.

Part of service kit 368438A1

1шт.

26

181260A1

SPRING

- piston

1шт.

27

181255A1

PISTON

- flow divider

1шт.

28

181137A1

O-RING

- plug

3шт.

29

181258A1

PLUG

- valve

2шт.

30

181262A1

SPRING

- spool, 190434A1 control valve

2шт.

30

334724A1

SPRING

- spool, 334558A1 or 335640A1 control valve

2шт.

31

181253A1

SPACER

- spring

2шт.

32

190444A1

PLUNGER

SPOOL - forward-reverse, 190434A1 control valve

1шт.

32

334725A1

PLUNGER

SPOOL - forward-reverse, 334558A1 or 335640A1 control valve

1шт.

34

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

6шт.

Not included in 334558A1 or 335640A1 control valve, purchase separately.

1шт.

35

181100A1

PLUG,1/8 CAS x 8

- valve

4шт.

36

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

4шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref 37; plus parts on Figures 6-042, 6-048, 6-050, 6-056. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

37

190436A1

SPRING

Small, 4.7 ID x 7.7 OD x 21 mm free length; piston, outer modulation; Included in 256888A3 synchronizer kit

1шт.

38

190440A1

PIN

- piston, inner modulation

1шт.

39

349295A1

SOLENOID VALVE

VALVE ASSEMBLY - differential lock solenoid, 2 gpm, 335640A1 control valve used in A3 transmissions, Includes: Ref. 40 - 42

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

42

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

NSS

NOT SOLD SEPARAT

VALVE - solenoid, cartridge, component parts are not serviced separately

1шт.

NSS

NOT SOLD SEPARAT

COIL - solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT - jam

1шт.
