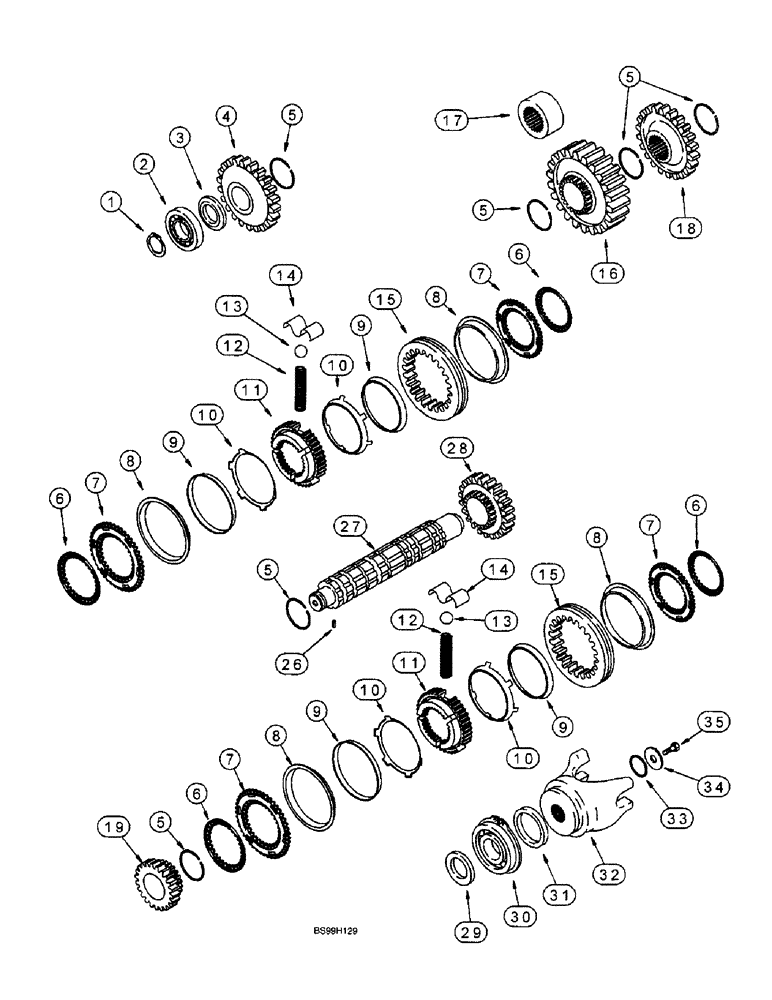

Запчасти Case 590SL (6-050) - CARRARO TRANSMISSION ASSEMBLY, SECONDARY SHAFT, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSEMBLY - two wheel drive, new, w/integrated differential lock solenoid valve, parts list fig. 6-34-6-58, Replaces 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, , Includes: Ref. 1 - 35

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123842A3R

REMAN-TRANSMISSION

590SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has A Supplier Part 137373 On It, If Not, Do Not Order 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSEMBLY- four wheel drive, new, w/integrated differential lock solenoid valve, parts list fig. 6-34-6-60, Replaces 123843A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, Includes: Ref. 1 - 35

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123843A3R

REMAN-TRANSMISSION

590SL Series-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

3

181193A1

THRUST WASHER

64 x 40 mm

1шт.

4

181190A1

PINION,43T

GEAR - driven, second

1шт.

5

181114A1

RING, SNAP

6шт.

190427A1

SYNCHRONIZER,90T

KIT - synchronizing service, Includes: Ref. 6 - 15

2шт.

Part of synchronizer service kit 256888A3

1шт.

6

244109A1

SPACER

- gear to synchronizer ring

4шт.

Part of synchronizer service kit 256888A3

1шт.

7

NSS

NOT SOLD SEPARAT

RING - synchronizer

2шт.

8

NSS

NOT SOLD SEPARAT

RING - synchronizer, flanged

2шт.

9

NSS

NOT SOLD SEPARAT

SPACER - hub

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - spacer

2шт.

11

NSS

NOT SOLD SEPARAT

HUB - synchronizer

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - hub

3шт.

13

NSS

NOT SOLD SEPARAT

BALL - hub

3шт.

14

NSS

NOT SOLD SEPARAT

PLATE - spring

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - hub

1шт.

16

181189A1

PINION,49T

GEAR - driven, first

1шт.

17

181226A1

SPACER

- gear, two-wheel drive models

1шт.

18

181224A1

PINION,44T

GEAR - drive, MFD

1шт.

19

181192A1

PINION,23T

GEAR - driven, fourth

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

PIN - roll

1шт.

27

181183A1

SHAFT

Secondary (Rear Output Shaft)

1шт.

28

181191A1

PINION,33T

GEAR - driven, third

1шт.

29

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

32

233284A1

YOKE

shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

- flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

- locking

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: 190427A1 Kit Ref 6 - 15; plus parts on Figures 6-042, 6-048, 6-050. Also incl 190436A1 spring, Ref 37 on 6-056. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
