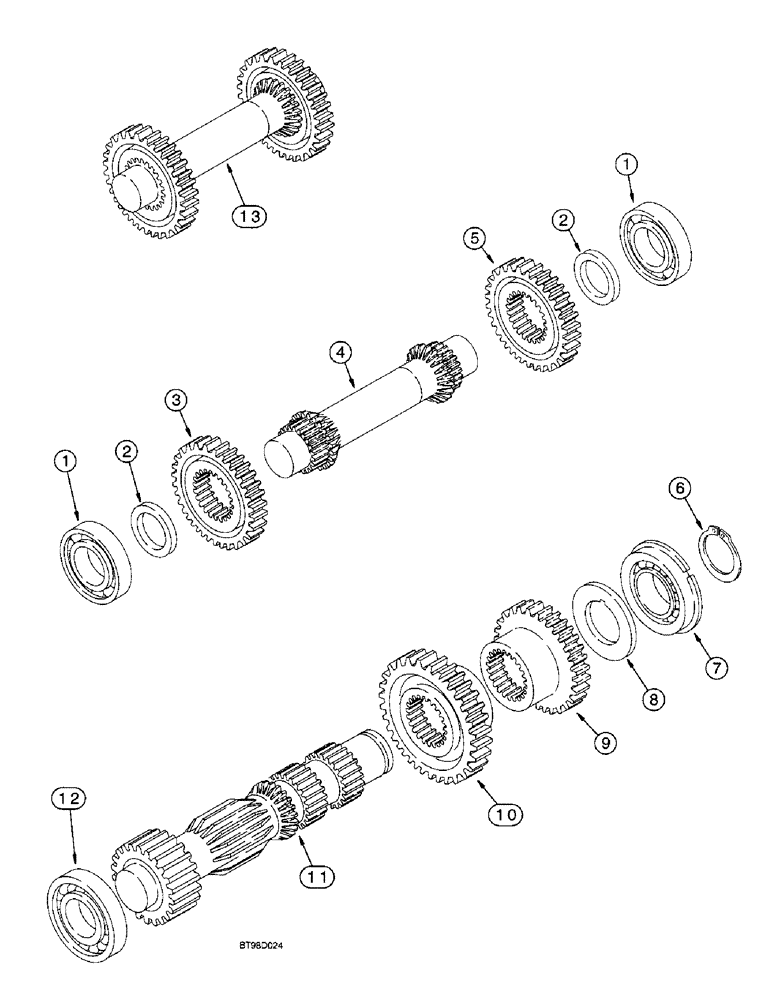

Запчасти Case 590SL (6-046) - CARRARO TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, 2WD OR 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSEMBLY - two wheel drive, new, w/integrated diff lock solenoid valve, parts list fig. 6-34 - 6-58, Replaces 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, , Includes: Ref. 1 - 13

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123842A3R

REMAN-TRANSMISSION

590SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has A Supplier Part Number 137373 On It, If Not, Do Not Order 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSEMBLY- four wheel drive, new, w/integrated differential lock solenoid valve, parts list fig. 6-34 - 6-60, Replaces 123843A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, Includes: Ref. 1 - 13

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123843A3R

REMAN-TRANSMISSION

590SL Series-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball

2шт.

2

181151A1

BLOCK

SHIM - bearing, 52 x 35.1 x 4 mm, if used

2шт.

3

181186A1

PINION

GEAR - idler, 27 teeth, no longer available, order 310613A1 one-piece gear shaft, Ref. 13

1шт.

4

181181A1

SHAFT

- idler, no longer available, order 310613A1 one-piece gear shaft, Ref. 13

1шт.

5

181186A1

PINION

GEAR - idler, 27 teeth, no longer available, order 310613A1, one-piece gear shaft, Ref. 13

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING - snap

1шт.

7

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

8

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER - thrust, 65 x 45 mm

1шт.

9

181188A1

PINION

GEAR - drive, third, 28 teeth

1шт.

10

181187A1

GEAR

- drive, fourth, 39 teeth

1шт.

11

181184A1

SHAFT

- primary

1шт.

12

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING - roller

1шт.

13

310613A1

SHAFT

- gear, idler, one-piece, Replaces Ref. 2 - 5, 181151A1 shim, (Ref. 2) is not required with 310613A1 one-piece gear shaft

1шт.
