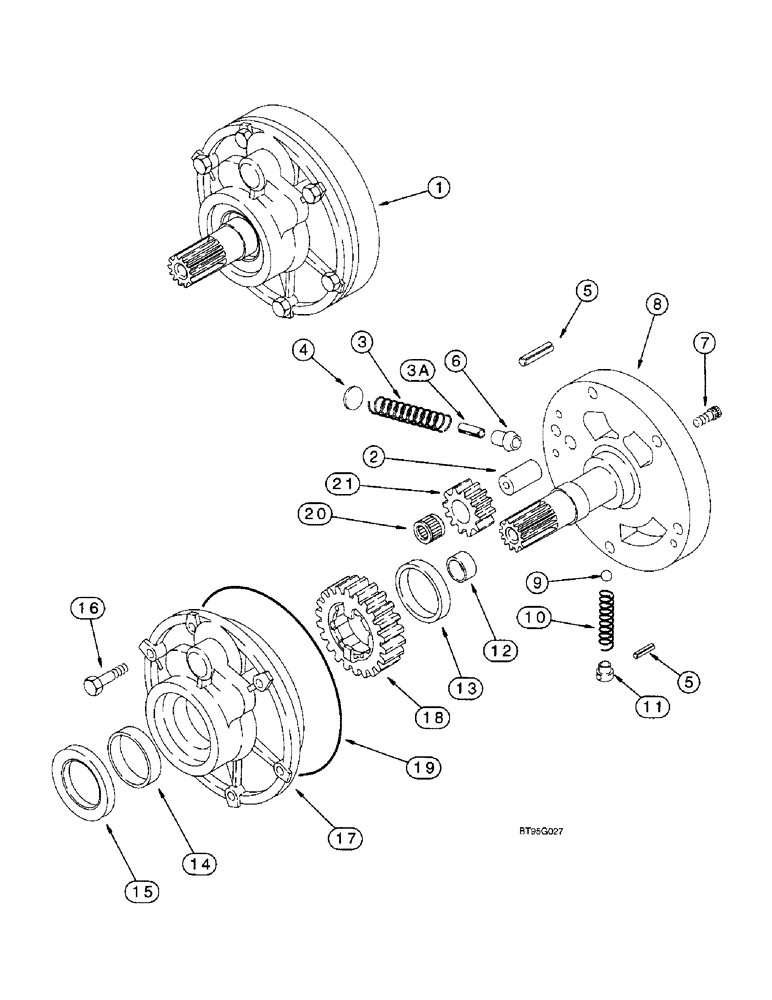

Запчасти Case 590SL (6-040) - CARRARO TRANSMISSION ASSEMBLY, OIL PUMP, TWO WHEEL OR FOUR WHEEL DRIVE, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSEMBLY - two wheel drive, new, w/integrated diff lock solenoid valve, parts list fig 6-34 - 6-58, Replaces 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, , Includes: Ref. 1 - 21

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123842A3R

REMAN-TRANSMISSION

590SL Series 2, Two Wheel Drive, Verify That The Unit Removed From The Tractor Being Repaired Has A Supplier P/N 137373 On It, If Not, Do Not Order 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

123843A3

TRANSMISSION

ASSEMBLY- four wheel drive, new, w/integrated diff lock solenoid valve, parts list fig. 6-34 - 6-60, Replaces 123842A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, , Includes: Ref. 1 - 21

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123843A3R

REMAN-TRANSMISSION

590SL SERIES-2,4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181199A4

PUMP

ASSEMBLY - oil, transmission, Includes: Ref. 2 - 21

1шт.

1

181199A4R

REMAN-HYD PUMP

590SL Series 2

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

247744A1

SHAFT

- small, not available for service, order 181199A4 pump

1шт.

3

181270A1

SPRING

- detent, not available for service, order 181199A4 pump

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN - valve, order 247749A1 piston valve kit below

1шт.

Part of piston valve kit P/N 247749A1

1шт.

4

198713A1

WASHER

STOP - spring, not available for service, order 181199A4 pump

1шт.

5

181109A1

SPLIT PIN

PIN - roll, 5 x 22 mm, not available for service, order 181199A4 pump

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - piston, order 247749A1 piston valve kit below

1шт.

Part of piston valve kit P/N 247749A1

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order 181199A4 pump Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT - pump

1шт.

9

181145A1

BALL

- check, not available for service, order 181199A4 pump

1шт.

10

181214A1

SPRING

- detent, not available for service, order 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE - spring, not available for service, order 181199A4 pump

1шт.

12

181215A1

BUSHING

- pump support, small, not available for service, order 181199A4 pump

1шт.

13

247746A1

BUSHING

- pump support, large, not available for service, order 181199A4 pump

1шт.

14

181216A1

BUSHING

- pump housing

1шт.

15

181205A1

OIL SEAL

SEAL - oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

18

247748A1

PINION

GEAR - 23 teeth, charge pump, large, not available for service, order 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

- pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING - needle, not available for service, order 181199A4 pump

1шт.

21

181218A1

PINION

GEAR - small, 12 teeth, not available for service, order 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT piston valve, not available for service, includes Refs. 3A and 6

1шт.
