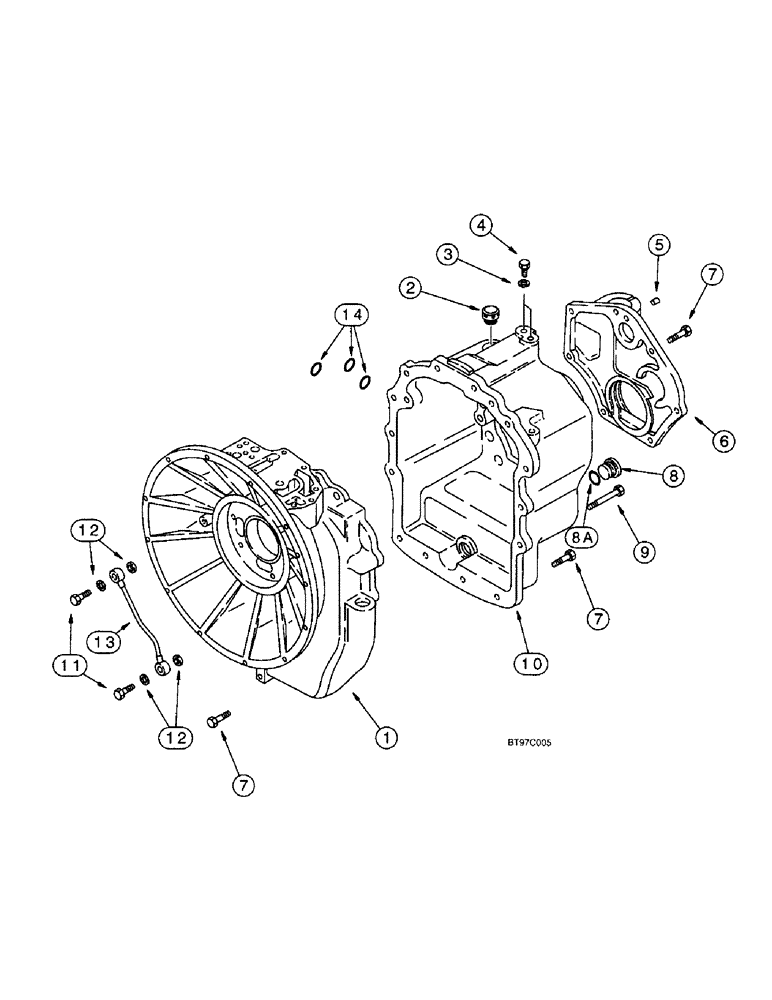

Запчасти Case 590SL (6-036) - CARRARO TRANSMISSION ASSEMBLY, TRANSMISSION HOUSING - TWO WHEEL DRIVE, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

123842A3

TRANSMISSION

ASSEMBLY - two wheel drive, new, w/integrated differential lock solenoid valve, parts list fig. 6-34 - 6-58, Replaces123842A2 transmission which used the chassis mounted differential lock solenoid valve, see fig. 6-156, Includes Ref. 1 - 14

1шт.

See figure 6-34 for further explanation when replacing an A2 transmission with an A3 transmission.

1шт.

123842A3R

REMAN-TRANSMISSION

590SL Series 2, Two Wheel Drive, Verify That The Unit Removed From Tractor Being Repaired Has A Supplier Part Number 137373 On It, If Not, Do Not Order 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

1

310768A1

HOUSING

- front half, use with Loctite 510 or 518 as a gasket eliminator, Includes: Ref. 1A

11шт.

1a

E135809

PLUG

- housing, not shown

1шт.

2

1530028C1

BREATHER

Housing

1шт.

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

TUBE, Breather, 18 OD x 42 mm long, Not shown

1шт.

3

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

2шт.

4

181100A1

PLUG,1/8 CAS x 8

- housing

2шт.

5

K260177

PIN

- dowel, special, 10 x 25 mm

3шт.

6

181197A1

COVER

- housing, rear half, use with Superbond 539 as a gasket eliminator

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

23шт.

8

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain

1шт.

8a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

9

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

- hex, 10 - 1.5 x 150 mm

2шт.

10

310767A1

HOUSING

- rear half, use with Superbond 539 as a gasket eliminator, Includes: Ref. 10A and 10B

1шт.

10a

E135809

PLUG

- housing, not shown

1шт.

10b

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

TUBE, Oil, Breather, 18 OD x 42 mm long, Not shown

1шт.

11

181179A1

BANJO BOLT

BOLT, BANJO, Hex, Special

2шт.

12

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

WASHER - flat, copper, special, 14 x 20 x 1.5 mm

4шт.

13

181232A1

TUBE

- oil lubrication

1шт.

14

181141A1

O-RING,17.12mm ID x 2.62mm Width

- housing

3шт.
