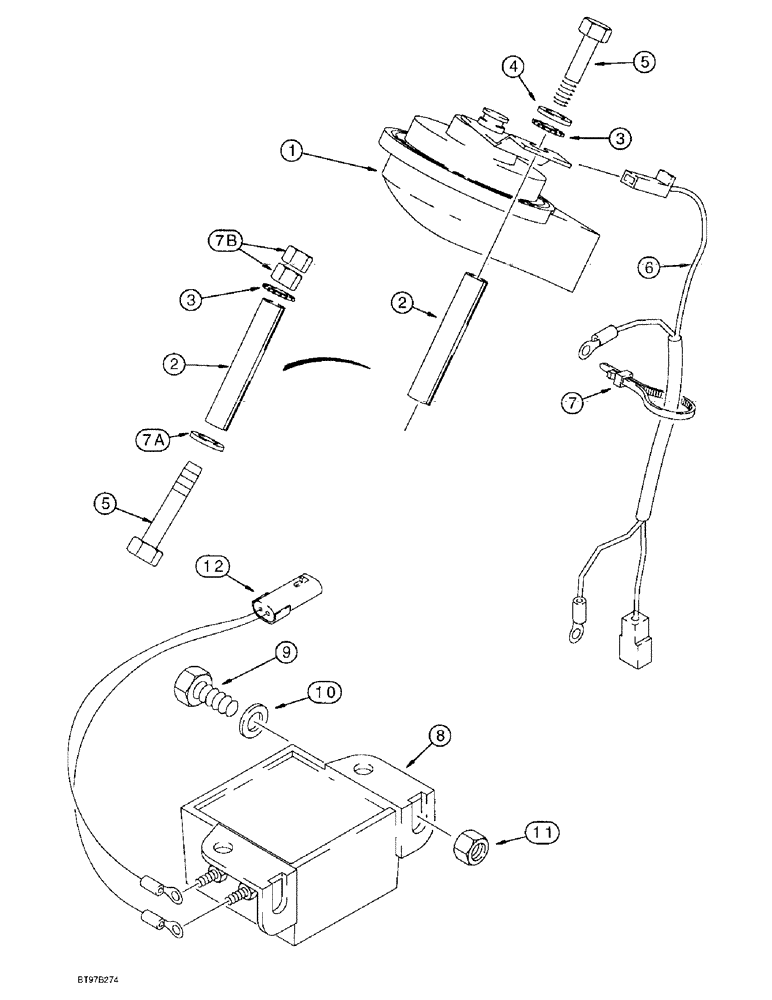

Запчасти Case 590SL (4-40) - HORN AND BACKUP ALARM, HORN, BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

3057542R91

HORN

- 12 volt, includes mounting bracket (Replaces 190155A1)

1шт.

2

116423A1

SPACER

- split, horn

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, , Horn Ext Tooth, M8

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Horn

1шт.

5

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

- hex, 8 - 1.25 x 110 mm, horn

1шт.

6

194258A1

HARNESS

- horn jumper, attaches to main engine harness, see Figure 4-10 for engine harness options, horn

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, horn

4шт.

7a

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used, horn

1шт.

7b

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, If used, Horn

2шт.

8

109511A1

ALARM

- backup, attaches to main engine harness, see Figure 4-10 for engine harness options

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, backup alarm

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Backup alarm

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Backup Alarm M8 x 1.25, Cl 8

2шт.

12

D139175

HARNESS

WIRE - pigtail, attaches main engine harness to alarm, backup

1шт.
