Запчасти Case 590SL (4-34) - CAB TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD, AND, FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS

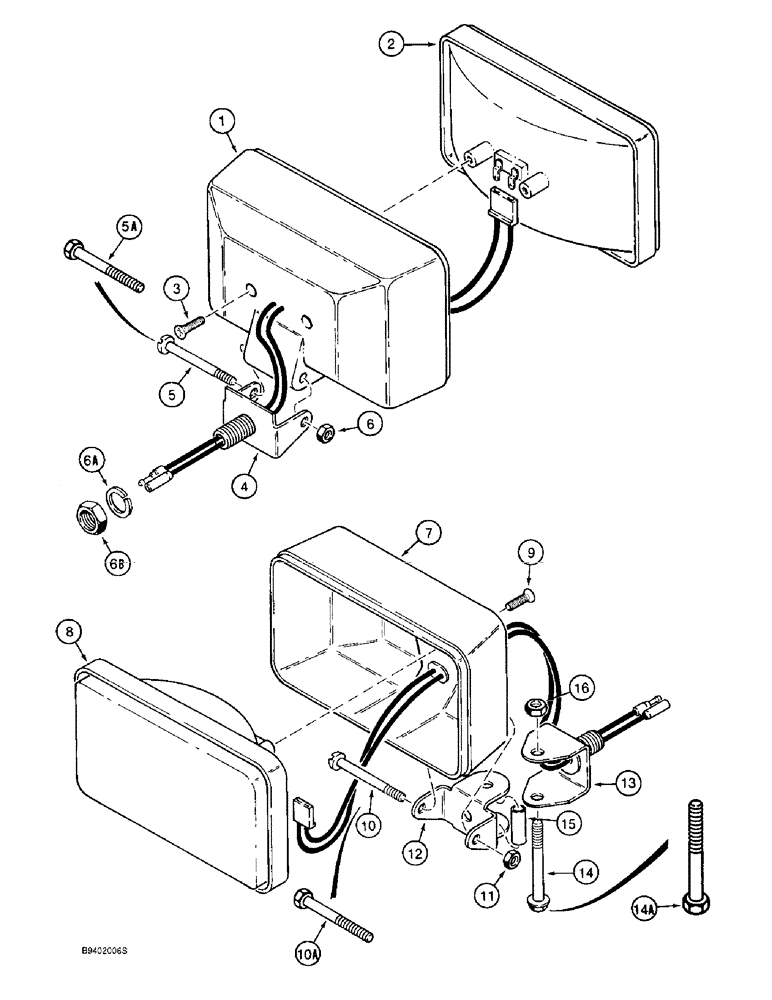

Схема запчастей Case 590SL - (4-34) - CAB TRACTOR LAMPS, FRONT DRIVING, REAR FLOOD, AND, FRONT AND REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS
11
2
7
5
12
8
6a
6
15
10a
14a
16
3
1
10
14
13
6b
5a
4
9

Артикул

Название

Примечание

Количество

109080A1

LAMP,12V, 50W

ASSEMBLY - front driving, Includes: Ref. 1 - 6

2шт.

109081A1

SPOTLIGHT

LAMP ASSEMBLY - flood and work, rear flood and front and rear work lamps, Includes: Ref. 1 - 6

6шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

A187912

LAMP,12V, 50W

- sealed beam, 109080A1

1шт.

2a

A187911

LAMP

- sealed beam, 109081A1

1шт.

3

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch

2шт.

4

A187914

BRACKET

- mounting, lamp

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

Выбрано товаров: 9
