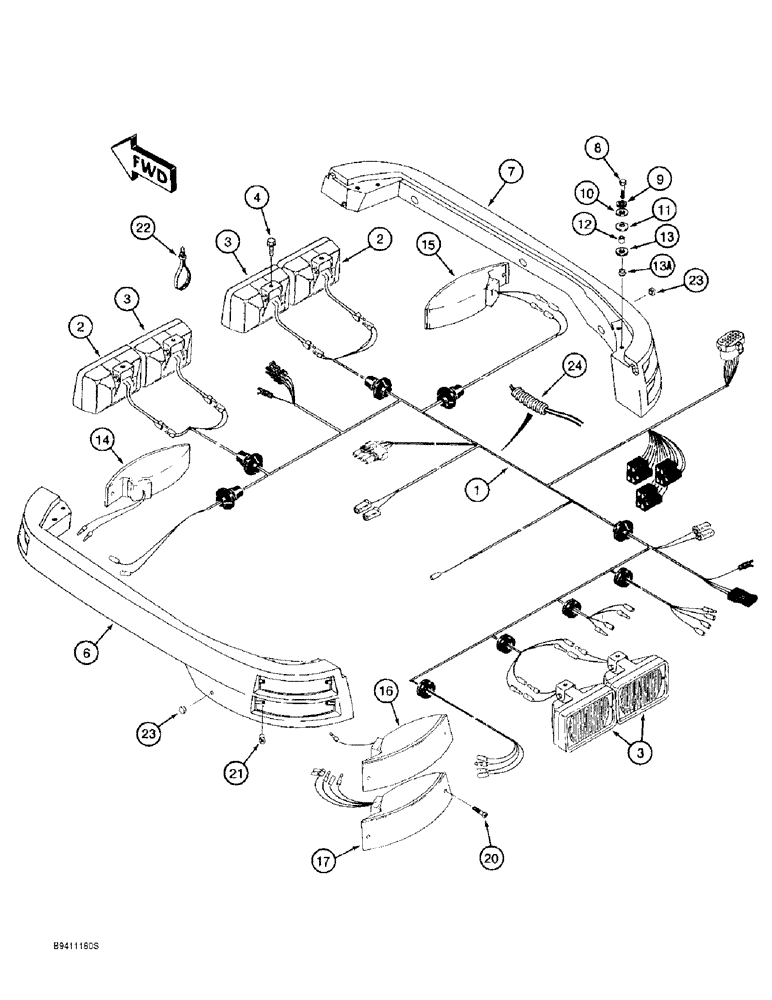

Запчасти Case 590SL (4-30) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

189400A1

HARNESS

- cab, models without air conditioning, attaches to side console instrument harness

1шт.

1a

189401A1

HARNESS

- cab, models with air conditioning, not shown, attaches to side console instrument harness, used in production, for service order 189400A1 cab harness (Ref.1) and 130876A1 adapter harness, Ref. 27 on Figure 4-18

1шт.

2

109080A1

LAMP,12V, 50W

ASSEMBLY - front driving, parts list Figure 4-34

2шт.

3

109081A1

SPOTLIGHT

LAMP ASSEMBLY - flood and work, rear flood and front and rear work lamps, parts list Figure 4-34

6шт.

4

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch

8шт.

6

187834A1

BRACKET

- left-hand lamp, includes inserts, (4) Ref. 13A and (6) Ref. 21, cab models

1шт.

7

187836A1

BRACKET

- right-hand lamp, includes inserts, (4) Ref. 13A and (6) Ref. 21, cab models

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm, Lamp bracket to cab frame

8шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

10

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

8шт.

11

186756A1

SPRING WASHER

- Belleville

8шт.

12

183598A2

SPACER

- cab lamp bracket mounting

8шт.

13

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

13a

181385A1

RIVET

INSERT - threaded, 8 mm - 1.25

8шт.

14

131797A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left-front, parts list Figure 4-38

1шт.

15

131796A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right front, parts list Figure 4-38

1шт.

16

183504A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, left rear, upper, parts list Figure 4-38

1шт.

17

131795A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, left rear, lower, parts list Figure 4-38

1шт.

18

183505A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY - turn signal and flasher, amber lens, right rear, upper, not shown, parts list Figure 4-38

1шт.

19

131794A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY - stop and tail, red lens, right rear, lower, not shown, parts list Figure 4-38

1шт.

20

190-105

SCREW,Phil Pan Hd, #10 - 32 x 1 3/4"

- machine, pan Phillips, No. 10 NF x 1-3/4 inch, lamp to bracket

12шт.

21

181459A1

NUT

INSERT - No. 10 NF

12шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

23

L60224

BUMPER

- rubber

2шт.

24

1202956C1

CONDUIT

- convoluted insulation, 16 (5/8) x 21 (53/64) x 889 mm (35 inch) long, windshield, Replaces 131371C1, 153 mm (6 inch) long conduit

1шт.
