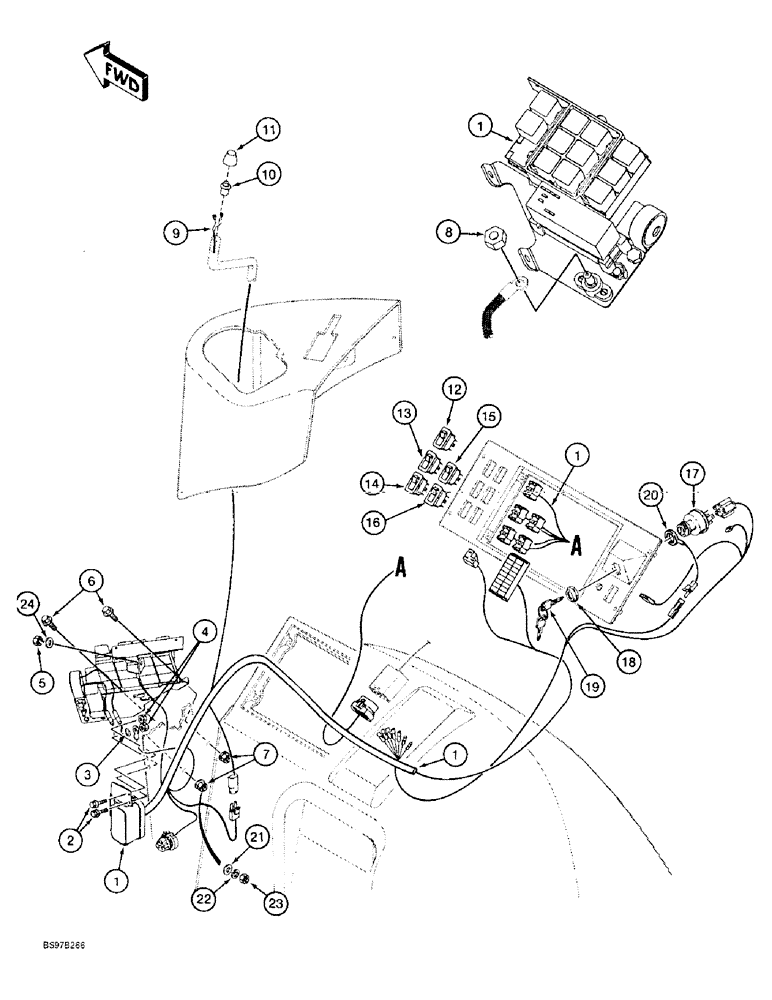

Запчасти Case 590SL (4-20) - SIDE CONSOLE INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - side instrument console, see Figure 4-18 for harness options

1шт.

2

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

2шт.

3

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

4

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Attaches Fuse and Relay Mounting Bracket to Parking Brake Lever Mount, Replaces 829-1408 Hex Nut Used on Some Models M8 x 1.25, Cl 8

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, No longer used, order Ref. 21 - 23

2шт.

8

425-106

NUT,3/8"-16, Cl 5

Attaches power wire from starter, Ref. 23 on Figure 4-10, to power junction block 3/8"-16, G5

1шт.

9

127518A1

HARNESS

- clutch cutout, loader control lever, see Figure 9-4 for clamp and hardware used on models with clam control

1шт.

10

122398A1

IGNITION SWITCH

SWITCH - push button, loader lever clutch cutout, see Figures 9-2 & 9-4 for loader lever

1шт.

11

D138252

BOOT

- switch, round, loader lever clutch cutout switch

1шт.

12

133711A1

LIGHT SWITCH

- rocker, driving lamps

1шт.

13

133713A1

LIGHT SWITCH

- rocker, front work lamps

1шт.

14

133716A1

ROCKER SWITCH

- rocker, four-wheel drive, if used, see Figure 4-24 for plug used in place of switch

1шт.

15

133715A1

LIGHT SWITCH

SWITCH, LIGHTS, Rocker, Rear flood lamps

1шт.

16

133714A1

BEACON SWITCH

- rocker, rotating beacon, if used, see Figure 4-24 for plug used in place of switch

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - key, without keys

1шт.

18

A77314

NUT

- hex, special, key switch mounting

1шт.

19

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

20

D137820

HARNESS

WIRE - ignition, Serial Range: switch-ground

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
