Запчасти Case 590SL (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

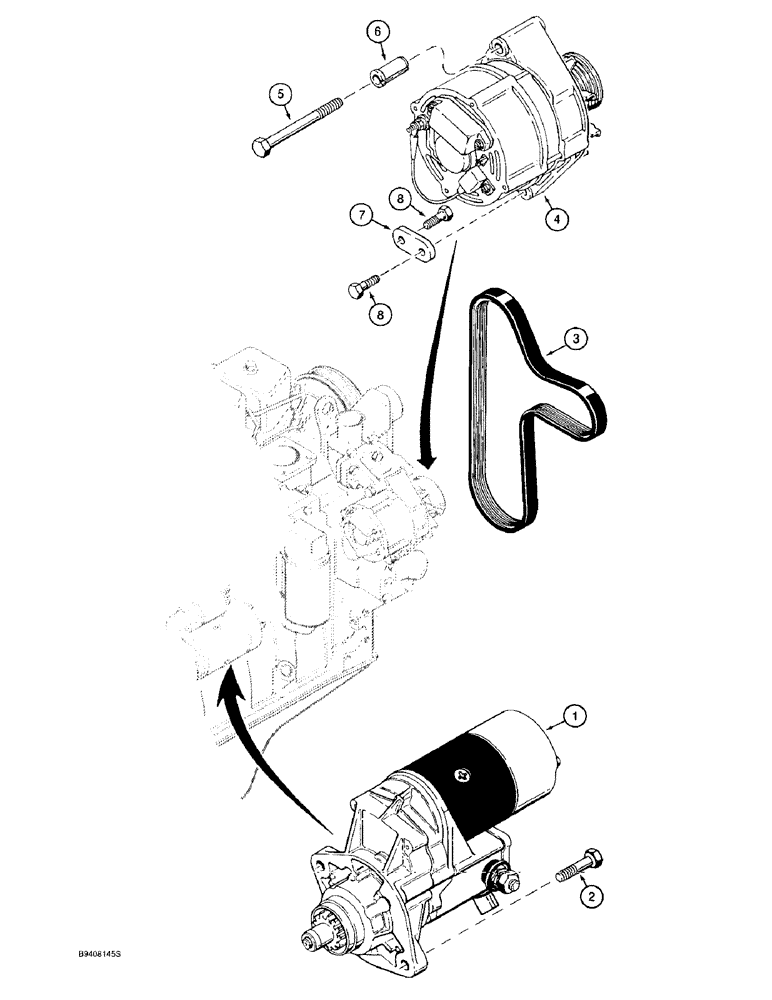

Схема запчастей Case 590SL - (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
1
2
8
7
8
5
6
3
4

Артикул

Название

Примечание

Количество

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, parts list Figure 4-2

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 40 mm

2шт.

3

J921603

V-BELT,3.56 mm W x 1485.90 mm L, 8 Ribs

Alternator and Fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, parts list Figure 4-6

1шт.

4

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

4

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

4

A187873GV

ALTERNATOR

Value, 65A

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

6

J902469

SPACER

SPACER - alternator mounting

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT - hex, full threads, 8 - 1.25 x 20 mm

2шт.

Выбрано товаров: 15
