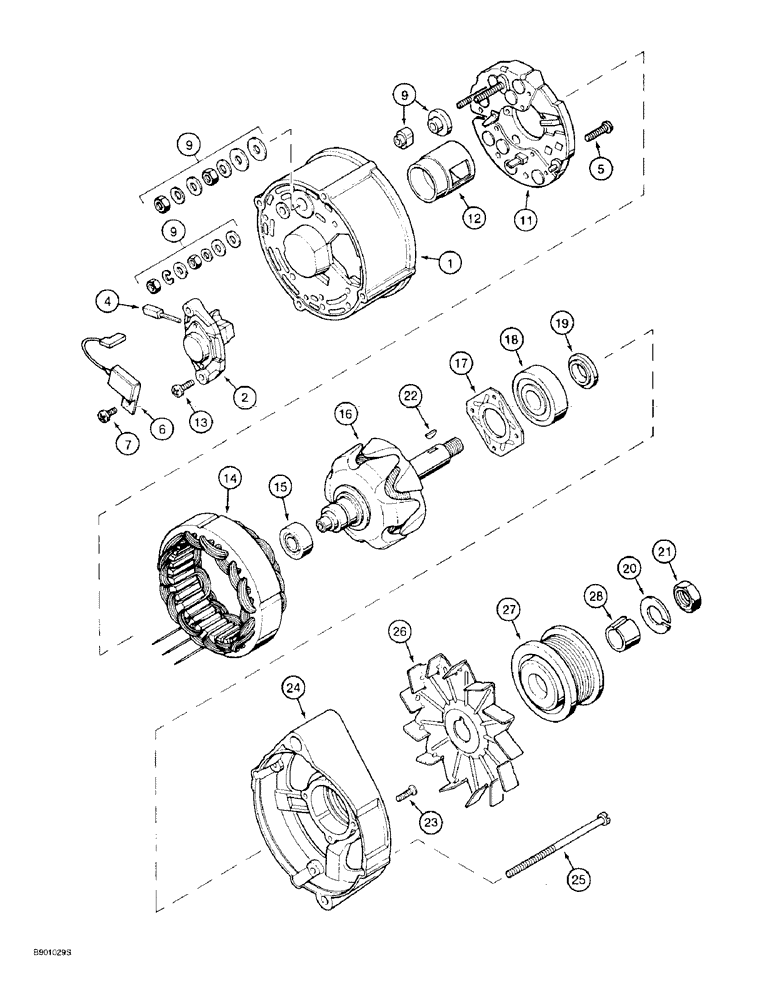

Запчасти Case 590SL (4-06) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, electrical, Includes: Ref. 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 65A

1шт.

1

A187903

COVER

HOUSING - collector ring end

1шт.

2

A187906

VOLTAGE REGULATOR

REGULATOR - voltage

1шт.

4

1964968C1

COMMUTATOR BRUSH

BRUSH - alternator

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

BOLT - with washer, rectifier bridge retaining

2шт.

6

3079134R1

CAPACITOR

CAPACITOR - alternator

1шт.

7

1964969C1

SCREW

SCREW - special, Fillister, capacitor retaining

1шт.

9

A187904

MULTIPOLE CONNECTOR

SET - hardware, terminal

1шт.

11

A187917

RECTIFIER

RECTIFIER - alternator

1шт.

12

A187899

INNER SHIELD

SHIELD - alternator

1шт.

13

A187504

SCREW

BOLT - hex flange, special, voltage regulator retaining

2шт.

14

1964966C1

STATOR

STATOR - alternator

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end

1шт.

16

1964964C1

ROTOR

ROTOR - alternator

1шт.

17

A187901

FIXING PLATE

PLATE - bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end, Includes: Ref. 19 - 23

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, not used in A187873 alternator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A186182

HOUSING

HOUSING - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, special, cover retaining

4шт.

26

221425R1

FAN

FAN - alternator, not included with alternator assembly, order separately

1шт.

27

J908560

PULLEY

PULLEY - drive, not included with alternator assembly, order separately

1шт.

28

J908563

RETAINER

RETAINER - pulley, not included with alternator assembly, order separately

1шт.
