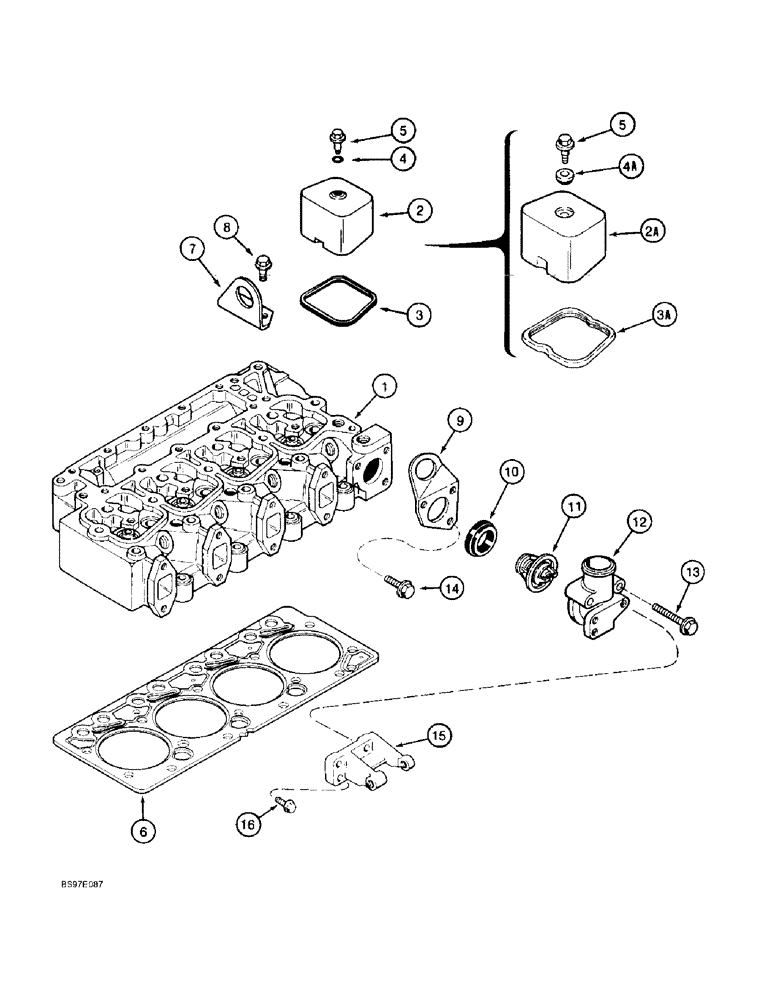

Запчасти Case 590SL (2-30) - CYLINDER HEAD COVERS, 4T-390 ENGINE, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-32 for correct cylinder head and parts list

1шт.

2

J902604

COVER

- rocker arm, no longer available, for service order Ref. 2A, J928404 cover and Ref. 4A, J928406 isolator

4шт.

2a

J928404

COVER

- rocker arm

4шт.

3

J902666

GASKET

SEAL - rocker arm cover, no longer available, for service order Ref. 3A, J930906

4шт.

3a

J930906

GASKET

SEAL - rocker arm cover, Replaces J929795

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, used with J902604 cover

4шт.

4a

J928406

ISOLATOR

- noise, used with J928404 cover

4шт.

5

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

6

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard, Replaces J921393 and J282999

1шт.

6

J283336

GASKET

- head, 2 notches, 0.25 mm overthick, Replaces J921395 and J283001

1шт.

6

J283338

GASKET

- head, 3 notches, 0.50 mm overthick, Replaces J921397 and J283003

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front

1шт.

10

J914409

HOUSING

- thermostat

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

- thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - heavy hex flange, 8 - 1.25 x 70 mm, Replaces 845-8070

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

1шт.

15

J923387

SUPPORT

- alternator mounting

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

3шт.
