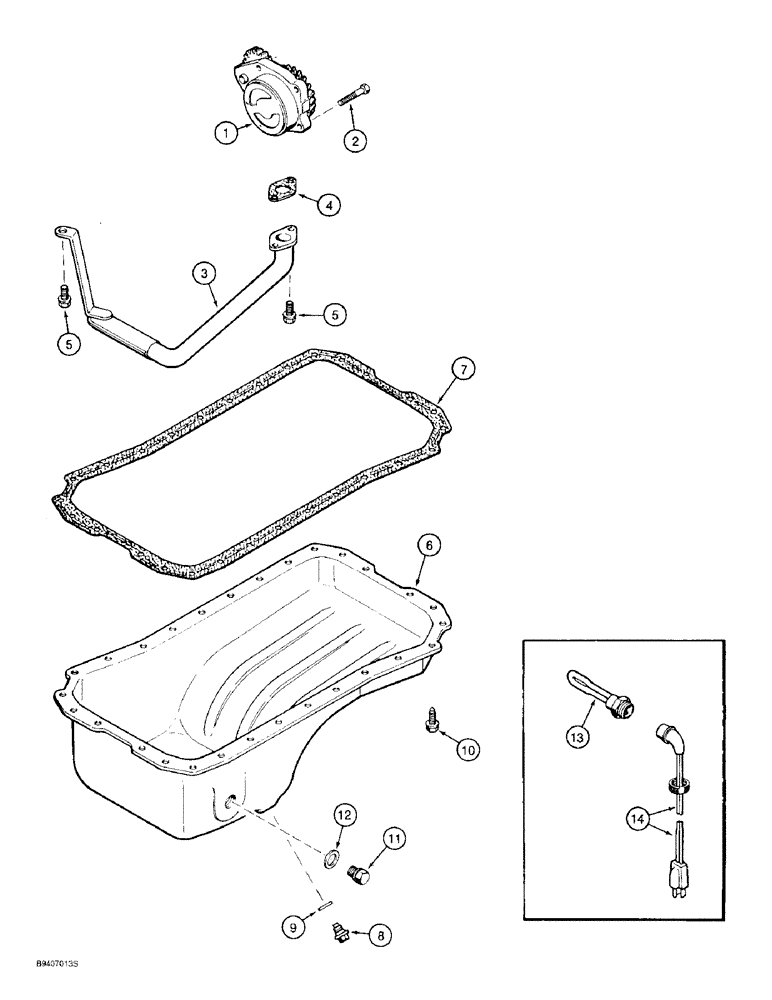

Запчасти Case 590SL (2-28) - OIL PUMP AND OIL PAN, 4T-390 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

PUMP - oil, engine, new, Replaces J926202

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only; Replaces JR926202

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT - hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J905205

TUBE,1" OD

TUBE - suction, oil

1шт.

If dealer has four-wheel drive, tube is J905206, not J905205.

1шт.

4

J914383

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 gasket kit for service

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 18 mm - 1.5, drain, oil

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, pipe, heater hole

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

When engine oil heater kit is ordered, item 12, J902425 washer, must also be ordered.

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan, Includes: ref. nos. 4, 7, and 9

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

When engine oil heater kit is ordered, Ref. 12, J902425 washer, must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt

1шт.

14

196466A1

ELECTRIC CABLE

CABLE - engine block heater, Replaces J905113

1шт.
