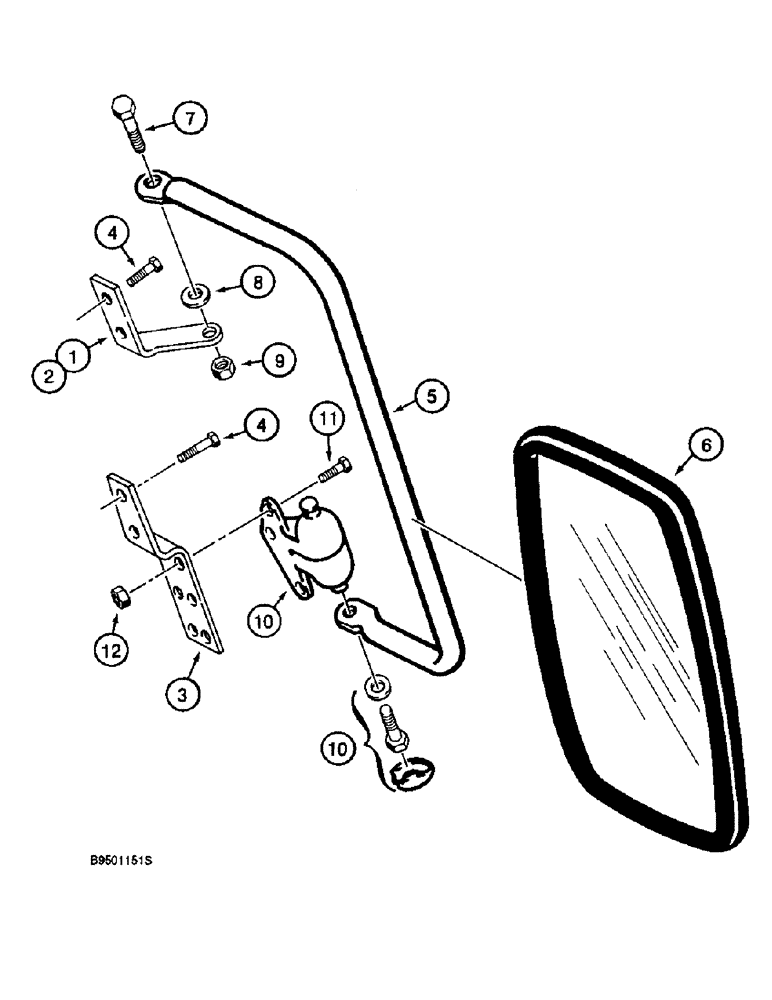

Запчасти Case 590SL (9-134) - REAR VIEW MIRROR, ROPS CAB MODELS - EXTERIOR (09) - CHASSIS/ATTACHMENTS

D102964

KIT

- mirror, rear view, Includes: Ref. 1 - 12

1шт.

1

D142084

BRACKET

- mirror, right-hand upper

1шт.

2

D142085

BRACKET

- mirror, left-hand upper, not shown

1шт.

3

D142083

BRACKET

- mirror, lower

2шт.

4

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer head, 1/4 NC x 3/4 inch

8шт.

5

D142086

TUBE

SUPPORT - mirror

2шт.

6

R54682

MIRROR

- rear view, exterior

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

8

A167037

WASHER

- nylon

2шт.

9

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

10

D142144

HINGE

KNUCKLE - support pivot, includes hardware

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

12

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

6шт.
