Запчасти Case 590SL (9-112) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

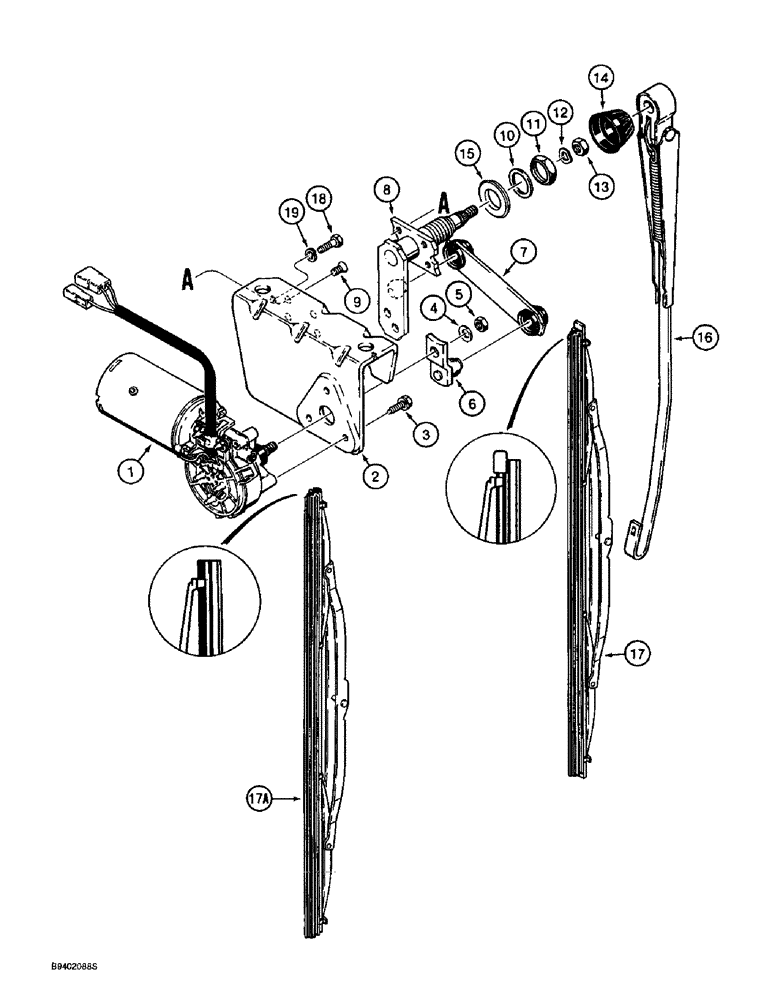

Схема запчастей Case 590SL - (9-112) - CAB FRONT WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS
18
10
15
4
14
17
17a
3
6
1
5
2
16
8
13
12
9
11
19
7

Артикул

Название

Примечание

Количество

A186171

WIPER MOTOR

WIPER ASSEMBLY - windshield, 12 volt, with bracket, front windshield wiper, Includes: Ref. 1 - 9

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR - wiper, 12 volt, windshield wiper

1шт.

2

N8359

SUPPORT

BRACKET - windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW - with washer, special, motor to bracket

3шт.

4

N8361

SPRING WASHER

- Belleville

1шт.

5

L112090

NUT

- hex, special, 8 mm

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8358

LINK

LINK - wiper

1шт.

8

N14112

SHAFT

- pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- special, pivot shaft to bracket

4шт.

10

L112088

WASHER

- special, large, shaft

1шт.

11

L112087

NUT

- special, large, shaft

1шт.

12

L112089

WASHER

- wave, special, shaft end

1шт.

13

L112090

NUT

- hex, special, 8 mm, shaft end

1шт.

14

L112081

CAP

- pivot shaft end

1шт.

15

R54241

SPACER

- pivot shaft

1шт.

16

D128745

WIPER ARM

ARM - windshield wiper, 570 mm (22-7/16 inch) long, complete

1шт.

17

A187909

WIPER BLADE

BLADE - wiper arm, complete, used in production, 500 mm (19-11/16 inch) long, not available for service, for complete blade order Ref. 17A, 132024A1

1шт.

Part of Rubber Blade Assemblies, P/N's 1983335C1 and 132025A1

1шт.

17a

132024A1

WIPER BLADE

BLADE - wiper arm, complete, for blade only, order 132025A1 blade refill, shown below

1шт.

Part of Rubber Blade Assemblies, P/N's 1983335C1 and 132025A1

1шт.

18

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

2шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1983335C1

WIPER

BLADE - rubber, 500 mm long, refill for A187909 complete blade, no longer available, order Ref. 17A, 132024A1

1шт.

132025A1

WIPER BLADE

BLADE - rubber, 500 mm long, refill for 132024A1 complete blade

1шт.

Выбрано товаров: 25
