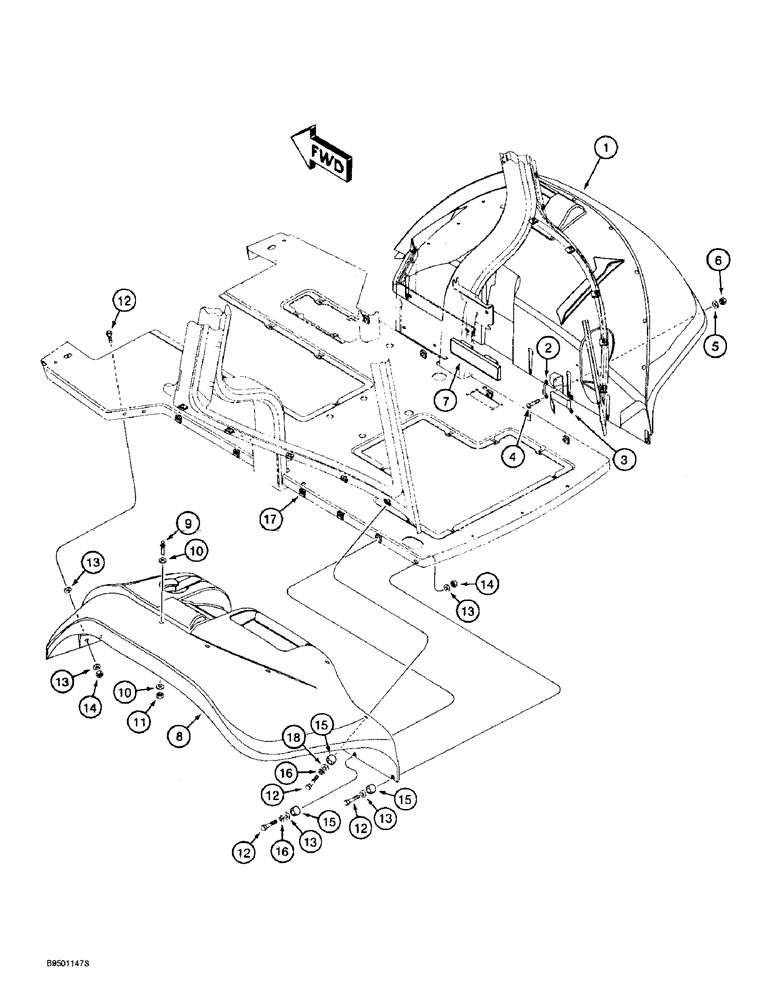

Запчасти Case 590SL (9-082) - REAR FENDERS, CAB MODELS (09) - CHASSIS/ATTACHMENTS

1

132134A1

FENDER

- right-hand, gray, for hardware mounting the front of the fender, see mud guard Figure 9-84

1шт.

1a

181457A2

FENDER

PANEL - fender, right-hand upper, gray vinyl, optional deluxe interior, not shown, replaces 181457A1

1шт.

1b

131975A2

FENDER

PANEL - fender, right-hand lower, gray vinyl, optional deluxe interior, not shown, replaces 131975A1

1шт.

2

182594A1

HANDLE

BRACKET - velcro retainer

2шт.

3

184726A1

FIXING STRIP

STRAP - velcro, right-hand cab fender; Fire Extinguisher Retaining Strap

1шт.

4

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

- machine, oval countersunk Phillips, 4 - 0.7 x 25 mm

4шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

4шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

4шт.

7

188482A1

SEALING STRIP

SEAL - foam, ROPS, Serial Range: post-fender

2шт.

8

132133A1

FENDER

- left-hand, gray

1шт.

8a

130757A1

PANEL

- fender, left-hand, gray vinyl, optional deluxe interior, not shown

1шт.

8b

188410A2

CLOTHES

INSERT - coffee cup holder, black plastic liner, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, replaces 188410A1

1шт.

8c

188411A2

TRAY

INSERT - tool tray, black plastic liner, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, replaces 188411A1

1шт.

8d

192274A2

PROTECTOR

COVER - left-hand fender at cab entrance, black plastic, optional deluxe interior, not shown, see Ref. 19 and 20 for screw and nut, replaces 192274A1

1шт.

9

139362A1

BALL JOINT

STUD - upper ball, 10 mm - 1.5, left-hand fender

1шт.

10

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, Full Thd, 8 - 1.25 x 30 mm

22шт.

13

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

16шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

15

144282A1

SPACER

- 16 x 10 mm long, fender support plate

22шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

18шт.

17

833-40408

NUT,M8, U

Replaces 122158A1 nut M8, U

20шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

10шт.

19

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Retains tool tray and coffee cup inserts and fender cover at cab entrance, not shown Cross Pan Hd, #10-24 x 3/4"

7шт.

20

86625057

NUT,#10-24, GB

NUT, LOCK, , Not shown #10-24, GB

7шт.
