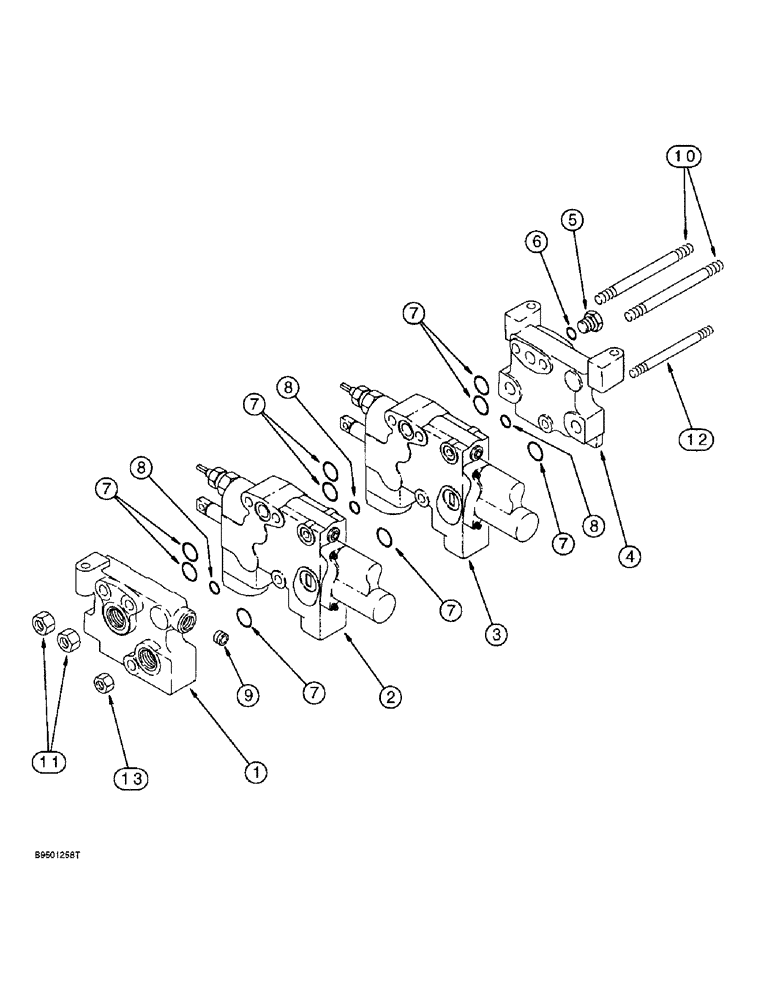

Запчасти Case 590SL (8-134) - AUXILIARY VALVE, TWO SPOOL (08) - HYDRAULICS

121740A2

VALVE, CONTROL

VALVE ASSEMBLY - auxiliary, for backhoe auxiliary hydraulics or hand held hydraulics, Includes: Ref. 1 - 13

1шт.

1

121638A2

ELEMENT

MANIFOLD - cover, inlet/outlet

1шт.

2

131158A3

ELEMENT

SECTION ASSEMBLY - backhoe auxiliary hydraulics, parts list Figure 8-136, replaces 131158A2

1шт.

3

131197A1

HYD VALVE SECTION

SECTION ASSEMBLY - hand held auxiliary hydraulics, parts list Figure 8-138

1шт.

4

121639A2

ELEMENT

MANIFOLD - cover, power beyond

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Section ports, large -117, 90 Duro, .799" ID x .103" Thk

9шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Section ports, small -112, 90 Duro, .487" ID x .103" Thk

3шт.

9

137039A1

PLUG

- hex socket

1шт.

10

1346131C3

TRUSS ROD

STUD - tie, 12 mm

2шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

4шт.

12

1346130C3

TRUSS ROD

STUD - tie, 10 mm

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
