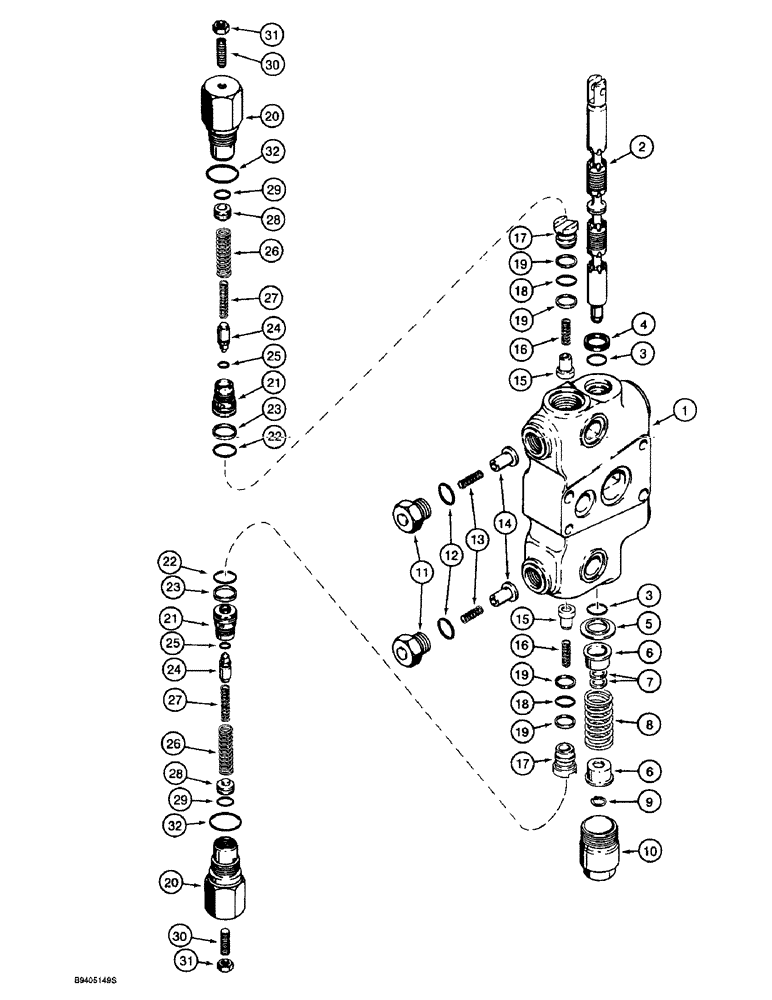

Запчасти Case 590SL (8-114) - BACKHOE CONTROL VALVE, DIPPER SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
136610A5
HYD VALVE SECTION
SECTION ASSEMBLY - dipper, with circuit relief valves and anticavitation valves, replaces 136610A2, 136610A3 and 136610A4, Includes: Ref. 1 - 32
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - dipper section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - dipper section
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
4
65457C1
SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk
- oil, spool
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
- O-ring
1шт.
6
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT - centering spring
2шт.
7
G106410
SPACER
- spool
2шт.
8
1994596C1
SPRING
- centering, purple, 2-15/16 inch free length, spool
1шт.
9
100-1647
SNAP RING,#47, Ext
Ring, Snap, , Spool end (Replaces G33077) #47, Ext
1шт.
10
G33080
CAP
- centering spring, spool end
1шт.
1346221C1
VALVE
ASSEMBLY - anticavitation, order Ref. 11 - 14
2шт.
11
G34937
PLUG
- anticavitation valve
1шт.
12
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
13
G34458
SPRING,Compression, 5.08mm OD x 27.56mm L
- anticavitation valve
1шт.
14
G34938
VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L
POPPET - anticavitation valve
1шт.
1346219C2
PACKAGE
VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 15 - 19
2шт.
15
1343777C1
VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L
POPPET - hollow poppet pin with orifice, load check
1шт.
16
1346175C1
SPRING,Compression, 6.6mm OD x 21.93mm L
- load check
1шт.
17
1343708C1
PLUG
- load check
1шт.
18
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Plug -016, 90 Duro, .614" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
19
G103862
BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk
- backup, plug O-ring
2шт.
Part of Seal Kit, P/N 1346105C2
1шт.
129861A1
VALVE
ASSEMBLY - circuit relief, dipper section, used in production, order G110077 kit for service, Includes: Ref. 20 - 32
2шт.
Part of Seal Kit, P/N 1346105C2
1шт.
20
NSS
NOT SOLD SEPARAT
HOUSING - circuit relief valve
1шт.
Part of Service Kit, P/N G110077
1шт.
21
NSS
NOT SOLD SEPARAT
SEAT - circuit relief valve
1шт.
Part of Service Kit, P/N G110077
1шт.
22
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Circuit relief valve seat -018, 90 Duro, .739" ID x .070" Thk
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
Part of Service Kit, P/N G110077
1шт.
23
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
- backup, seat O-ring
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
Part of Service Kit, P/N G110077
1шт.
24
NSS
NOT SOLD SEPARAT
POPPET - circuit relief valve
1шт.
Part of Service Kit, P/N G110077
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - poppet
1шт.
Part of Service Kit, P/N G110077
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING - relief, outer
1шт.
Part of Service Kit, P/N G110077
1шт.
27
NSS
NOT SOLD SEPARAT
SPRING - relief, inner
1шт.
Part of Service Kit, P/N G110077
1шт.
28
NSS
NOT SOLD SEPARAT
PISTON - circuit relief valve
1шт.
Part of Service Kit, P/N G110077
1шт.
29
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
Part of Service Kit, P/N G110077
1шт.
30
484-43116
SET SCREW,Hex Soc, 5/16"-24 x 1"
SCREW - set, hex socket headless, 5/16 NF x 1 inch, oval point
1шт.
Part of Service Kit, P/N G110077
1шт.
31
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
1шт.
Part of Service Kit, P/N G110077
1шт.
32
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Housing
1шт.
Part of Seal Kit, P/N 1346105C2
1шт.
Part of Service Kit, P/N G110077
1шт.
SEAL KIT
KIT - seal, Includes: ref. nos. 3, 4, 12, 18, 19, 22, 23, and 32, plus additional O-rings not required in this application
1шт.
G110077
KIT
- service, for 129861A1 circuit relief valve, kit, Includes an instruction sheet and G110078 circuit relief valve Ref. 20-32 which is the same as 129861A1 except with a different pressure setting
1шт.
