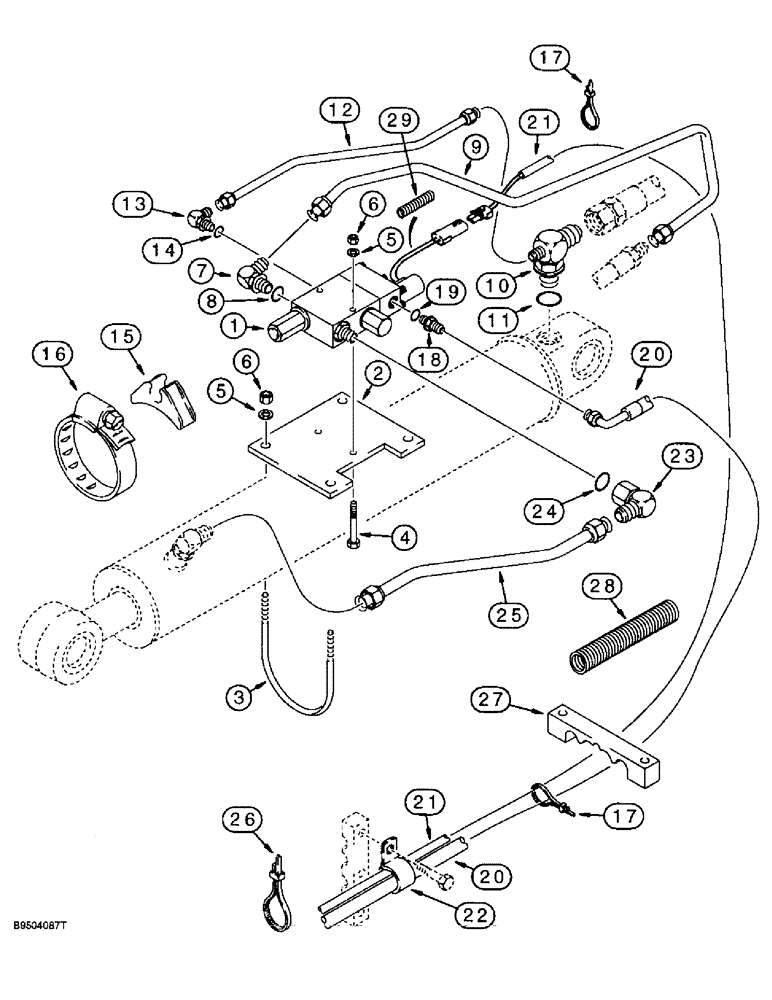

Запчасти Case 590SL (8-076) - BACKHOE BOOM LOCK HYDRAULIC, AND ELECTRICAL CIRCUIT, AT BOOM CYLINDER (08) - HYDRAULICS

198277A1

KIT

- backhoe boom lock, continued from previous Figure, order components, Includes: Ref. 1 - 29

1шт.

1

189957A1

VALVE

ASSEMBLY - solenoid, backhoe boom lock, includes (2) 321-6046 warning decals, parts list Figure 8-140

1шт.

2

D150054

PLATE

- Valve mounting

1шт.

3

D150053

BOLT

U-BOLT - 3/8 inch

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

6

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Hex, self-locking 3/8"-16, GB

6шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj. O-ring boss, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

9

192025A1

TUBE,19.05 mm OD, 680, 196 mm Length

HYD, Valve port, Attaches to Ref 34 hose on Figure 8-24

1шт.

10

198421A1

ELBOW

- 90 degree, special, reducer, boom cylinder closed end, attaches to Ref. 23 hose on Figure 8-24, Includes: Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

189709A1

TUBE,6.35 mm OD, 450, 60 mm Length

HYD, Pilot Port

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 14

1шт.

15

D142787

SPACER

INSULATOR - rubber

1шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

CLAMP - adj, 5-3/4 - 6-5/8 inch diameter

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

18

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

189103A1

HYDRAULIC HOSE

HOSE, HYDRAULIC, 3700 mm (145-11/16") long, Return, Attaches to elbow at backhoe valve, See Ref 2 on Figure 8-74

1шт.

21

189263A1

WIRE HARNESS

HARNESS, WIRE, Boom lock valve to control tower harness

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Return hose 3/4", Insul, 1/2" Bolt

1шт.

23

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch swivel, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

25

198532A1

TUBE,19.05 mm OD

- boom lock valve to boom cylinder rod end, see Figure 8-24, Ref. 29 for elbow

1шт.

26

D147773

CLAMP

STRAP - tie

1шт.

27

221329A1

CLAMP

- hose and harness

1шт.

28

220276A1

SLEEVE

- hose guard, 610 mm long, Ref. 20 hose and Ref. 21 harness at swing tower

1шт.

29

D121385

PLASTIC-RUBBER TUBE

GUARD - harness protection

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
