Запчасти Case 590SL (8-068) - HAND HELD AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

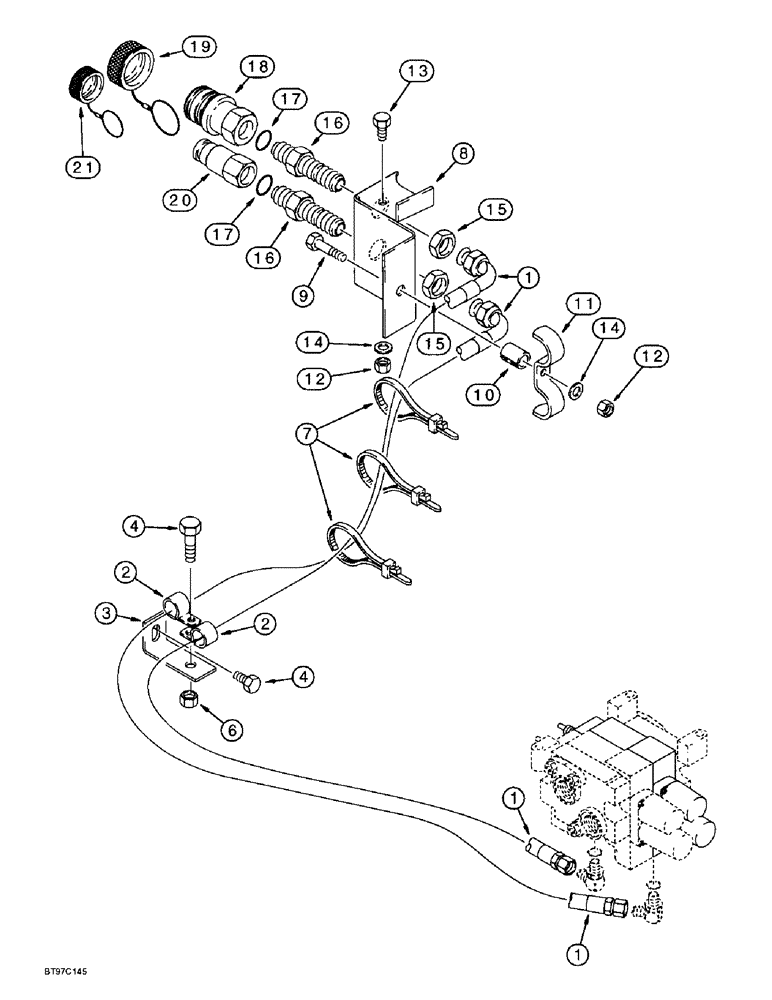

Схема запчастей Case 590SL - (8-068) - HAND HELD AUXILIARY HYDRAULICS, AUXILIARY VALVE TO QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS
2
1
7
14
16
1
18
8
16
21
15
6
10
2
12
13
17
19
1
15
4
17
12
9
11
3
20
4
14

Артикул

Название

Примечание

Количество

1

191215A1

HOSE

- 2460 mm (96-7/8 inch) long, auxiliary valve to quick disconnect couplings, see Figure 8-46 for 218-5107 elbows at auxiliary valve

2шт.

2

D34033

CLAMP

- P-type, 1-3/16 inch ID

2шт.

3

180318A1

SUPPORT

BRACKET - hose support

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, If used

1-2шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used Hex, M10 x 25, 8.8, Full Thd

1шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, If used

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

If used M10, Cl 10

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3-4шт.

8

191188A1

SUPPORT

BRACKET - hose support to quick disconnect couplings

1шт.

9

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

- Hex, Full Threads, 10-1.5 x 50 mm

1шт.

10

131600A1

SPACER

- clamp

1шт.

11

191075A1

FIXING BRACKET

CLAMP - double

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, If used

2шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

16

126155A1

FITTING

CONNECTOR - straight, bulkhead

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

122179A1

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, component parts are not serviced separately, replaces 123537A1 female coupling

1шт.

19

137343A1

PLUG

CAP - female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP - female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, component parts are not serviced separately, replaces 123536A1 and 122178A1 male coupling

1шт.

21

137344A1

PLUG

CAP - male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP - male coupling, black rubber, if used

1шт.
