Запчасти Case 590SL (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER (08) - HYDRAULICS

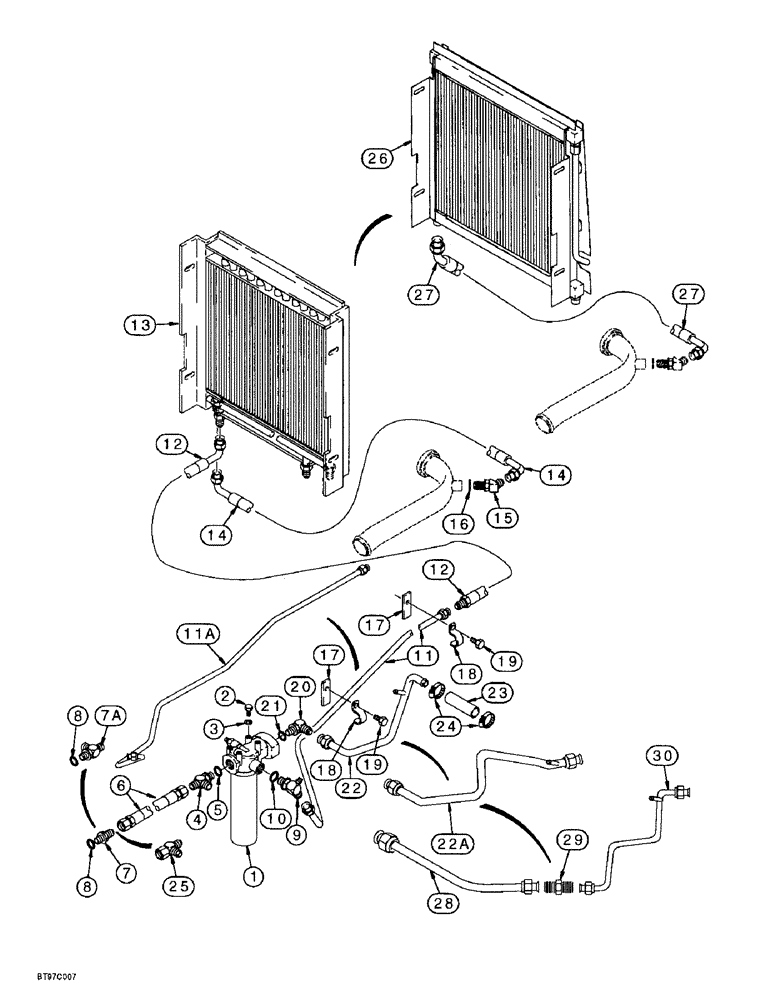

Схема запчастей Case 590SL - (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER (08) - HYDRAULICS
7
6
14
12
30
25
5
11a
15
28
17
4
29
23
7a
8
8
3
18
1
14
24
21
17
2
18
16
26
11
20
19
9
19
22a
12
13
22
10
27
27

Артикул

Название

Примечание

Количество

1

181001A1

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list Figure 8-144

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 1-5/16-12 inch flare branch x flare x adj. O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

144233A1

HOSE,1.0” ID x 890mm L

- 890 mm (35 inch) long, return, backhoe control, Serial Range: valve-filter

1шт.

See Figures 8-48 - 8-58 for fitting and hose used on models with basic auxiliary hydraulics.

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, backhoe control valve outlet port, models without extendable dipper

1шт.

See Figures 8-48 - 8-58 for fitting and hose used on models with basic auxiliary hydraulics.

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 1-5/16-12 inch flare branch x flare x adj. O-ring boss, backhoe control valve outlet port, models with extendable dipper, if used, Includes: Ref. 8

1шт.

See Figures 8-48 - 8-58 for fitting and hose used on models with basic auxiliary hydraulics.

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, 218-5069 or 218-5245 fitting

1шт.

9

228959A1

FITTING

TEE - special, replaces 131002A1, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

122176A1

TUBE

- filter to cooler, if used

1шт.

11a

227286A2

TUBE

- filter to cooler, if used

1шт.

12

144220A1

HOSE,12.7mm ID x 595mm L

- 595 mm (23-7/16 inch) long, Serial Range: filter-cooler

1шт.

13

231280A1

COOLER, OIL

COOLER - hydraulic oil, see Figure 6-20 for cooler mounting hardware, replaces 139783A1 cooler, if used

1шт.

14

144214A1

HOSE,12.7mm ID x 573mm L

- 573 mm (22-9/16 inch) long, cooler return, used with 139783A1 or 231280A1 cooler

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

115633A1

SUPPORT

PLATE - mounting

2шт.

18

D143430

CLAMP

- tube

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj. O-ring boss, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

184789A1

TUBE

- return to tank, prior to tractor P.I.N. JJG0209872, if used

1шт.

22a

229245A1

TUBE

- return to tank, used in production (for service order 232902A1 tube, 218-739 connector and 232900A1 tube, Ref. 28-30) tractor P.I.N. JJG0209872 and after, if used

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 89 mm (3-1/2 inch) long, cut from S118383X bulk hose, return tube to tank, see Figure 7-8 for attaching brake line clamp

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

25

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel

1шт.

Used on models with auxiliary hydraulics. When installing auxiliary hydraulics, this tee is mounted between Ref. 6 hose and Ref. 7 adapter on standard dipper or between Ref. 6 hose and Ref. 7A tee on extendable models.

1шт.

26

235811A1

COOLER, OIL

COOLER - hydraulic oil, heavy duty, see Figure 6-21A for cooler mounting hardware, if used

1шт.

27

236231A1

HOSE

- 300 mm (11-13/16 inch) long, used with 235811A1 cooler, Ref. 26, if used

1шт.

28

232902A1

TUBE,25.4 mm OD

- return, if used

1шт.

29

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, 1-5/16-12 inch flare, if used

1шт.

30

232900A1

TUBE

- return, if used

1шт.

The end that connects to tanks is a hose bib, not threaded fitting, as illustrated.

1шт.

S118383X

LARGE HOSE

HOSE - bulk, 25 (1) x 38 (1-1/2) x 4877 mm (192 inch) long

1шт.

Выбрано товаров: 39
