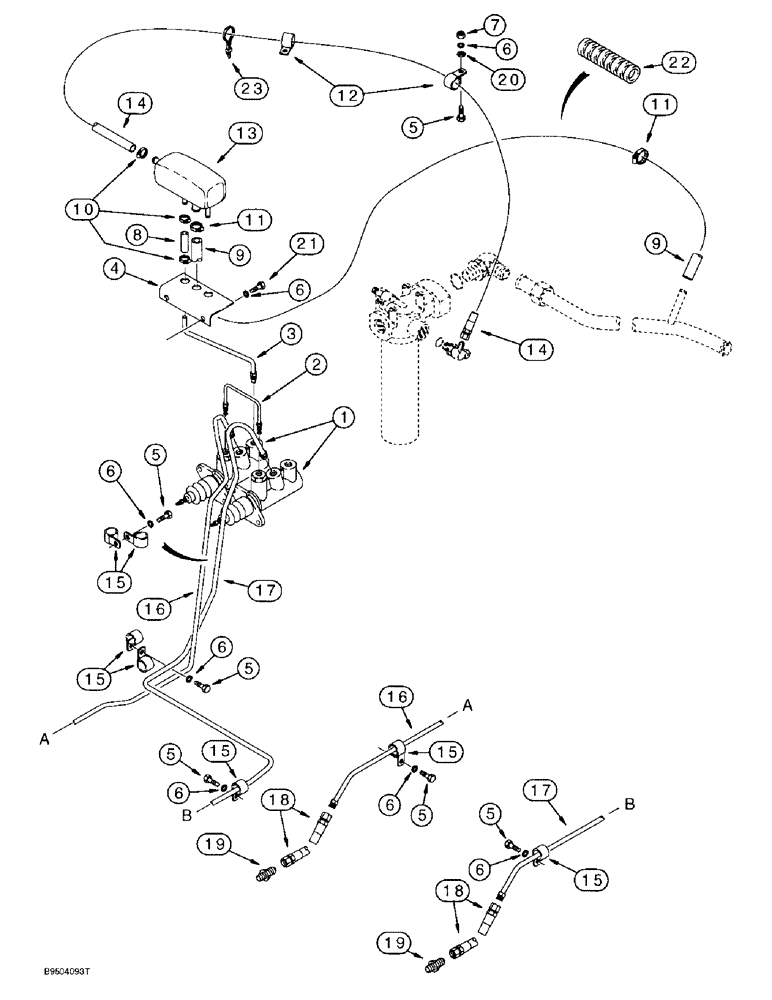

Запчасти Case 590SL (7-08) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER ASSEMBLY - brake master, parts list Figure 7-10

2шт.

2

D136430

TUBE

- crossover

1шт.

3

142003A1

TUBE,7.94 mm OD, 224, 60 mm Length

- reservoir to master cylinder

2шт.

4

121730A2

SUPPORT

BRACKET - brake reservoir support, attaches to firewall, replaces 121730A1

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, Full Thd, 8 - 1.25 x 30 mm

6шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

- Reservoir to master cylinder 7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

2шт.

9

131677A1

HOSE

- 1150 mm (45-1/4 inch) long, reservoir outlet, attaches to return to tank tube, Ref. 22 on Figure 8-8

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable, Attaches to return to tank tube #6, 0.44/0.78 Type M Worm

2шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Replaces 49854 clamp 1/2", Insul, 5/16" Bolt

2шт.

13

1976943C1

RESERVOIR

- brake master cylinder

1шт.

14

131676A1

HOSE,7.94mm ID x 1590mm L

- 1590 mm (62-5/8 inch) long, reservoir inlet, attaches to tee at hydraulic oil filter, Ref. 9 on Figure 8-8

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 515-2379, 5/16" ID clamp 1/2", Insul, 3/8" Bolt

7шт.

16

142004A1

TUBE,7.94 mm OD, 854, 501 mm Length

- brake, left-hand

1шт.

17

142005A1

TUBE,7.94 mm OD, 854, 501 mm Length

- brake, right-hand

1шт.

18

142007A1

HOSE,6.35mm ID x 625mm L

- 625 mm (24-5/8 inch) long, brake tube to adapter on rear axle

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, if used

1шт.
