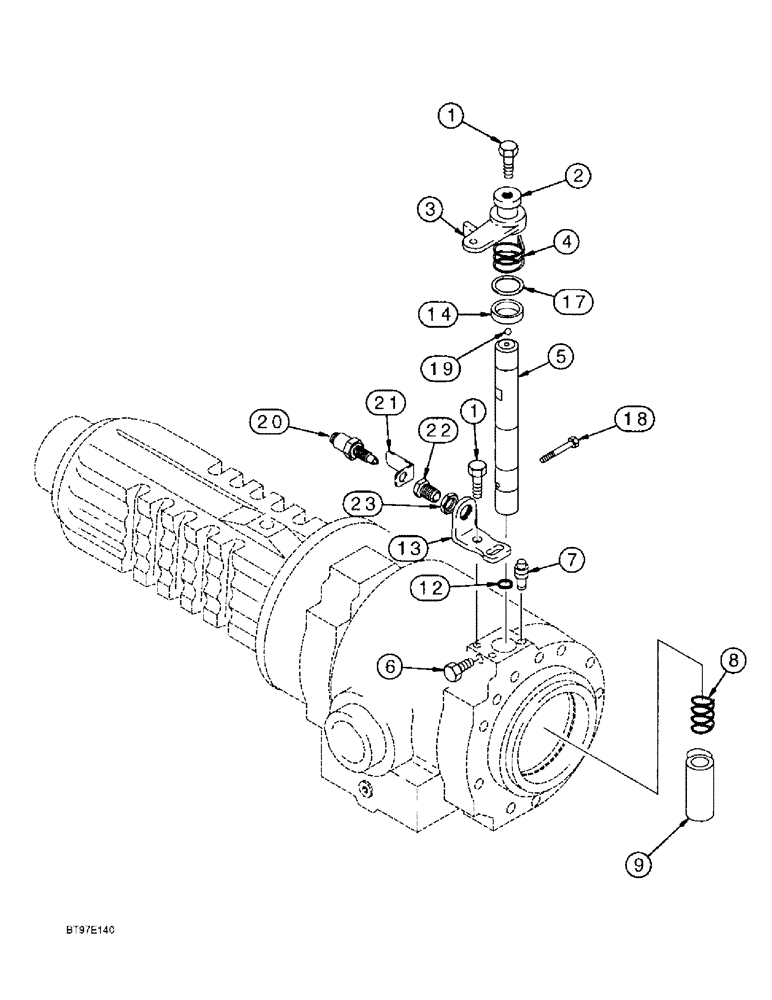

Запчасти Case 590SL (7-05A) - REAR DRIVE AXLE, PARKING BRAKE (07) - BRAKES

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 23

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

BOLT - special, 8 x 20 mm

6шт.

2

190463A1

WASHER

- flat

2шт.

3

280436A1

LEVER

- brake, 100 mm

2шт.

4

190476A2

SPRING

- left-hand, shown

1шт.

4

190477A2

SPRING

- right-hand, not shown

1шт.

5

256484A1

SHAFT

- brake control

2шт.

6

283462A1

BOLT

BOLT - special, 8 - 1.0 x 23.5 mm

2шт.

7

E135810

VENTING SCREW

PLUG - brake bleeder, brake housing

2шт.

8

190473A1

SPRING

- cam

2шт.

9

196085A1

CAM

- brake

2шт.

11

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

4шт.

12

321183A1

O-RING

Special; Replaces 190448A1

2шт.

13

256478A1

SUPPORT

BRACKET - stop

2шт.

14

256481A1

SPACER

BUSHING - shaft

2шт.

15

196088A1

COPPER WASHER

WASHER - sealing, copper, .5 mm thick, used as a shim

2шт.

16

P2434552

JAM NUT

- hex, jam, 8 mm - 1 fine

2шт.

17

256482A1

SHIM

- shaft

2шт.

18

256485A1

BOLT

BOLT - special, 6 x 16 mm

2шт.

19

283466A1

BALL

- 6.5 mm

2шт.

281952A1

KIT

- switch, park brake, Includes: Ref. 20 - 23

2шт.

20

280450A1

PARK BRAKE SWITCH

SWITCH - brake

1шт.

21

280452A1

BRACKET

- switch guard, lever

1шт.

22

280457A1

LEVER

SLEEVE - switch

1шт.

23

281960A1

NUT

- special, 16 mm - 1.5

1шт.
