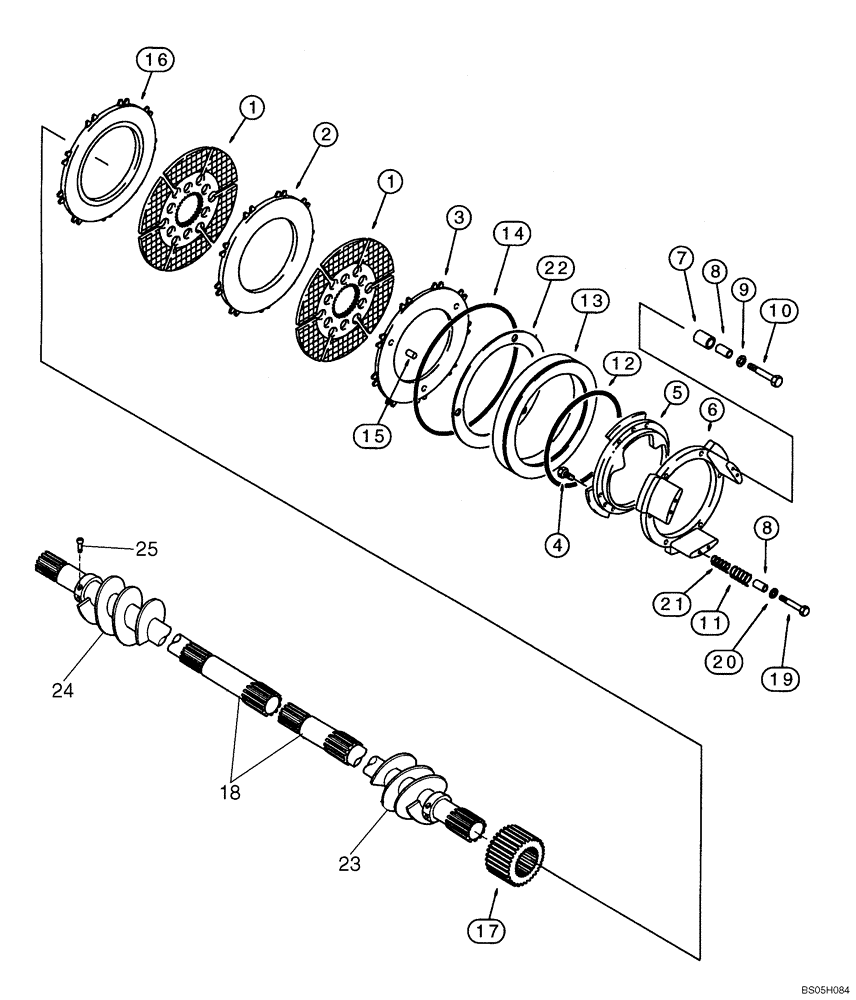

Запчасти Case 590SL (7-03A) - 127599A3 OR 127599A5 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

127599A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 22

1шт.

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 22

1шт.

1

237017A1

BRAKE DISC

DISC - brake

4шт.

2

237018A1

FRICTION WASHER

PLATE - friction, inner

2шт.

3

237019A1

LARGE PLATE

PLATE - piston

2шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

196076A1

FLANGE

- inner

2шт.

6

196077A1

FLANGE

- outer

2шт.

7

190449A1

SPLIT PIN

SPACER - split, 18 x 20 mm, no longer sold separately, order 248071A1 kit below

6шт.

Part of Brake Kit, part number 248071A1

1шт.

8

190496A1

BUSHING

- spacer, no longer sold separately, order 248071A1 kit below

12шт.

Part of Brake Kit, part number 248071A1

1шт.

9

190450A1

WASHER

- flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

- outer

6шт.

12

196078A1

O-RING,9.541" ID x 0.14" Width

- small

2шт.

13

196079A1

PISTON

- brake

2шт.

14

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

(Replaces 196080A1)

2шт.

15

190447A1

SPLIT PIN

PIN - split, 6 x 14 mm

6шт.

16

237020A1

LARGE PLATE

PLATE - friction, outer

2шт.

17

196082A1

SLEEVE

- splined

2шт.

18

196083A1

HALF SHAFT

SHAFT - splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT - hex socket, 6 - 1.0 x 35 mm

6шт.

20

190500A1

COVER

- spring

6шт.

21

237025A1

SPRING

- inner

6шт.

22

192911A1

SHIM

- piston

2шт.

23

329475A1

CUTTER

AUGER; Right-Hand, Oil; Includes Weld-On Clamp and 863-6020 Bolt; Also Includes Welded on Drive Coupling

1шт.

24

329476A1

AUGER

Left-Hand, Oil; Includes Weld-On Clamp and 863-6020 Bolt; Also Includes Welded on Drive Coupling

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW, Hex Socket, M6 x 20, 12.9

2шт.

248071A1

SERVICE KIT

KIT brake, self adjuster, Includes Ref. 7 spacer and Ref. 8 bushing, plus an instruction sheet

1шт.
