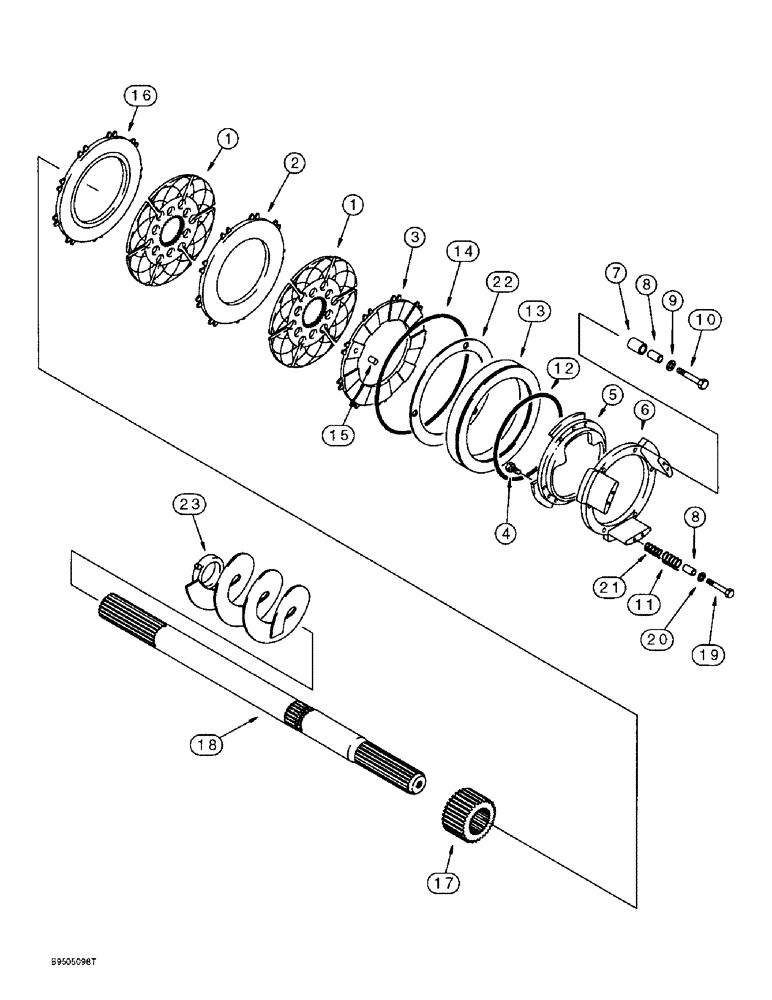

Запчасти Case 590SL (7-02) - 127599A2 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

127599A2

AXLE

ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5 axle on Figure 6-52, Includes: Ref. 1 - 25

1шт.

1

196073A1

BRAKE DISC

DISC - brake

4шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

2

196074A1

LARGE PLATE

PLATE - friction, inner

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

3

196075A1

LARGE PLATE

PLATE - piston

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

196076A1

FLANGE

- inner

2шт.

6

196077A1

FLANGE

- outer

2шт.

7

190449A1

SPLIT PIN

SPACER - split, 18 x 20 mm

6шт.

8

190496A1

BUSHING

- spacer

12шт.

9

190450A1

WASHER

- flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

190499A1

SPRING

- outer

6шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

12

196078A1

O-RING,9.541" ID x 0.14" Width

- small

2шт.

13

196079A1

PISTON

- brake

2шт.

14

196080A1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

- large

2шт.

15

190447A1

SPLIT PIN

PIN - split, 6 x 14 mm

6шт.

16

196081A1

LARGE PLATE

PLATE - friction, outer

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

17

196082A1

SLEEVE

- splined

2шт.

18

196083A1

HALF SHAFT

SHAFT - splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT - hex socket, 6 - 1.0 x 35 mm

6шт.

20

190500A1

COVER

- spring

6шт.

21

190498A1

SPRING

- inner

6шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

22

192911A1

SHIM

- piston

2шт.

23

193491A1

AUGER

- oil, right-hand, includes weld-on clamp and bolt, augers are on 127599A2 axles only

1шт.

24

193493A1

AUGER

- oil, left-hand, includes weld-on clamp and bolt, not shown, augers are on 127599A2 axles only, Includes: Ref. 25

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 20 mm, class 12.9, not shown, right-hand and left-hand auger

2шт.
