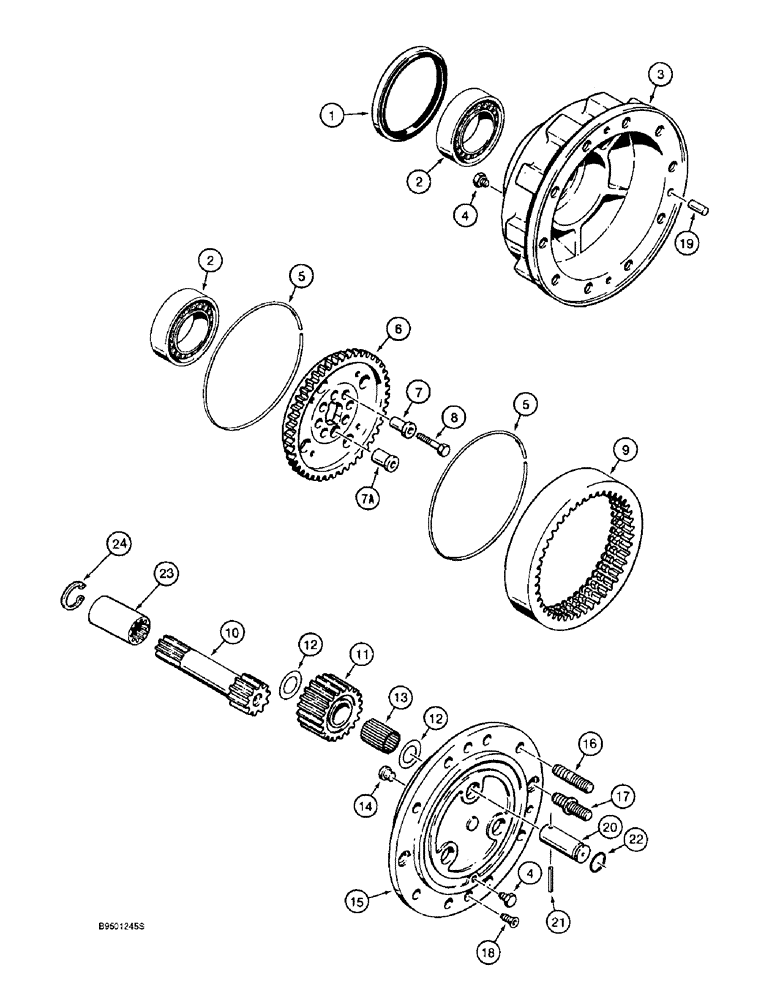

Запчасти Case 590SL (6-60) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

127599A2

AXLE

ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 24

1шт.

127599A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 24

1шт.

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 24

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

Oil, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

E135758

HOUSING

HUB - wheel attaching

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

4шт.

5

D142979

RING, SNAP

RING - lock

4шт.

6

E135757

PINION

HUB - ring gear; Used With (2) 24 mm OD and (14) 20 mm OD Bushings; No Longer Available, Order 295579A1 Ring Gear

2шт.

6

295579A1

PINION

HUB - ring gear; Used With (16) 20 mm OD Bushings

2шт.

7

107071A1

BUSHING

- Centering, 20 mm OD

14-16шт.

7

107072A1

CENTERING RING

BUSHING - centering, 20 mm O.D.; If Used

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

9

E135755

GEAR WHEEL

GEAR - ring, planetary

2шт.

10

196091A1

HALF SHAFT

SHAFT - pinion

2шт.

11

E135787

GEAR

- pinion, planetary

6шт.

12

E135788

WASHER, THRUST

WASHER - thrust, pinion gear

12шт.

13

196089A1

NEEDLE BEARING,Needle, 4mm OD x 34.8mm L

BEARING - needle (package of 10 needles) (180 needles required) planetary gear

18шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking

2шт.

15

144659A1

COVER

- planetary

2шт.

16

D142986

STUD,88mm L

- special, without flanged collar

16шт.

17

E135795

STUD

- special, with flanged collar, for recessed bolt holes

4шт.

18

K395029

SCREW

- special, planetary cover

4шт.

19

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

2шт.

20

109643A1

LARGE PIN

SHAFT - pinion gear

6шт.

21

109642A1

PIN, SPLIT (COTTER)

PIN - split, pinion gear shaft

6шт.

22

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

6шт.

23

196092A1

SPLINED BUSHING,29T

- drive

2шт.

24

800-2136

SNAP RING,M36, Ext

RING - internal retaining, No. 36

2шт.
