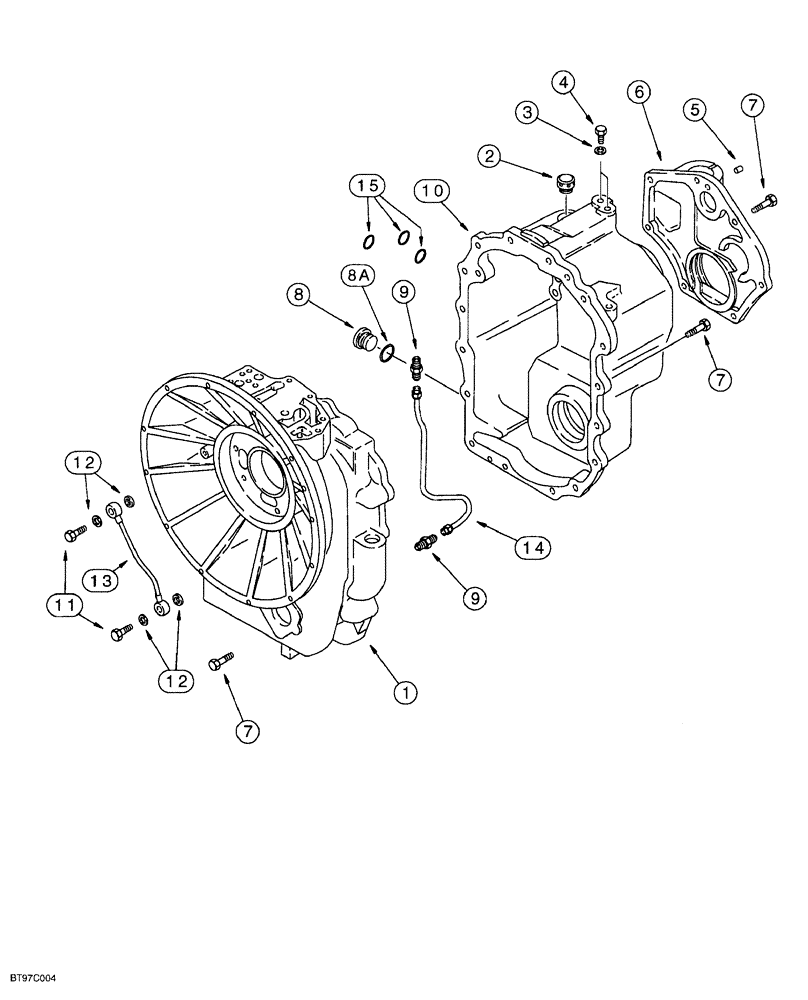

Запчасти Case 580SL (6-038) - CARRARO TRANSMISSION ASSY, TRANSMISSION HOUSING, 4 WHEEL DRIVE MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

123843A3

TRANSMISSION

ASSEMBLY, 4WD, new, with integrated diff. solenoid valve, Includes: Ref. 1-15, See pages 6-34 - 6-60; Replaces 123843A2 trans. which used the chassis mounted diff. lock solenoid valve, see pag 6-156; no longer available, order 329076A1 see pag 6-62 - 6-86

1шт.

See Fig. 6-34 for further explanation when replacing an A2 transmission with an A3 transmission

1шт.

123843A3R

REMAN-TRANSMISSION

580SL SERIES-2, 4 WD, Without Powershift Transmission

1шт.

123843A3C

CORE-TRANSMISSION

Return Number

1шт.

1

310766A1

HOUSING

front half, use with Loctite 510 or 518 as a gasket eliminator

1шт.

1a

239606A1

PLUG

housing, oil passage port, not shown

1шт.

2

1530028C1

BREATHER

Housing

1шт.

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil, Breather, 18 OD x 42 mm long, Not shown

1шт.

3

934667R1

SEALING RING,M10 x 14 x 1

Special

2шт.

4

181100A1

PLUG,1/8 CAS x 8

housing

2шт.

5

K260177

PIN

dowel, special, 10 x 25 mm

3шт.

6

181197A1

COVER

housing, rearhalf, use with Superbond 539 as a gasket elimmator

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

23шт.

8

100557A1

PLUG, DRAIN,M30 x 2

Includes: Ref. 8A

1шт.

8a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

9

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER straight, 1/2-20 flare x 1/4 inch PT

2шт.

10

310765A1

HOUSING

rear half, use with Superbond 539 as a gasket eliminator

1шт.

11

181179A1

BANJO BOLT

Hex, Special

2шт.

12

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

flat, special, 14 x 20 x 1.5 mm

4шт.

13

181232A1

TUBE

TUBE oil lubrication

1шт.

14

181176A1

TUBE

TUBE oil

1шт.

15

181141A1

O-RING,17.12mm ID x 2.62mm Width

housing

3шт.
