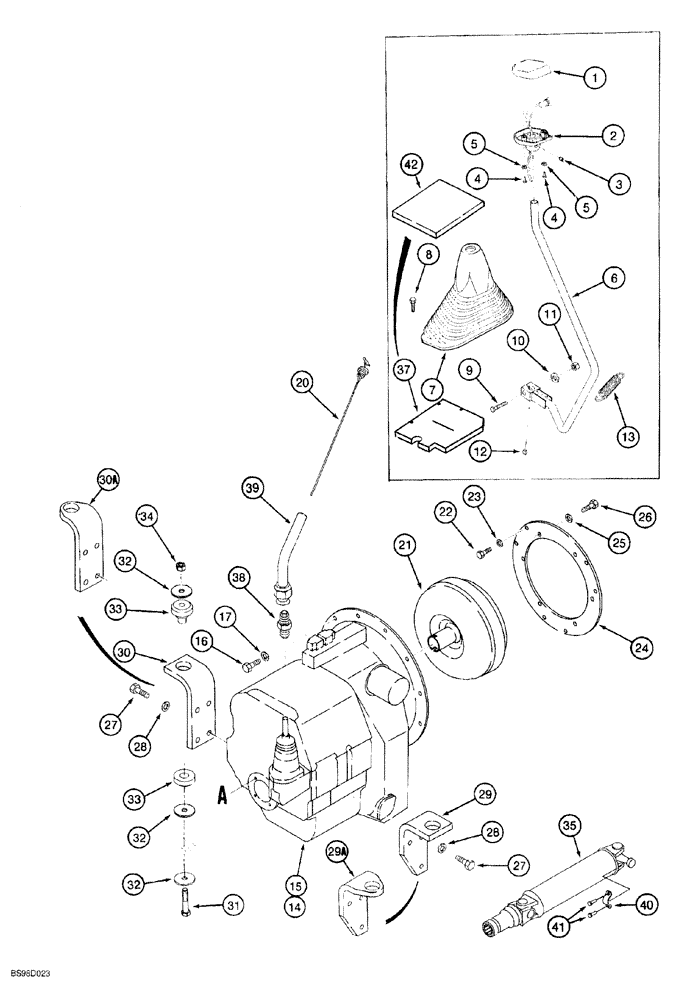

Запчасти Case 580SL (6-028) - TRANSMISSION MOUNTING, DRIVE SHAFT, DIPSTICK AND GEAR SHIFT LEVER, MODELS WITHOUT POWERSHIFT TRANS (06) - POWER TRAIN

309747A1

KNOB

ASSEMBLY, transmission gear shift lever, Includes Ref. 1, 2, 4, and 5, also Includes Ref. gasket

1шт.

310965A1

DIVIDER

GASKET paper divider

2шт.

1

187714A1

KNOB

Upper, Cover

1шт.

Used on models without powershift transmissions

1шт.

2

187715A1

KNOB

Lower

1шт.

Used on models without powershift transmissions

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

set, hex socket headless, 5/16 NF x 3/8 inch, half dog point

1шт.

Used on models without powershift transmissions

1шт.

4

459-11014

SCREW,Pan HD, #10 - 32 x 7/8"

machine, pan head slotted, No 10 NF x 7/8 inch

2шт.

Used on models without powershift transmissions

1шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

Used on models without powershift transmissions

1шт.

6

179689A1

LEVER

transmission gear shift, see figure 4-10 for clutch cutout harness and switch

1шт.

Used on models without powershift transmissions

1шт.

7

190618A1

BELLOWS

BOOT transmission gear shift lever

1шт.

Used on models without powershift transmissions

1шт.

8

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

self tapping, hex washer head, No. 10 - 16 x 1 inch

4шт.

Used on models without powershift transmissions

1шт.

9

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

1шт.

Used on models without powershift transmissions

1шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

Used on models without powershift transmissions

1шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

Used on models without powershift transmissions

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

Used on models without powershift transmissions

1шт.

13

143370A1

SPRING

return, shift lever

1шт.

Used on models without powershift transmissions

1шт.

14

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, See figures 6-62 - 6-84, Replaces: P/N's123842A2 and 123842A transmissions on figures 6-34 - 6-58, used on models without powershift transmissions

1шт.

14

329076A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

14

329076A3C

CORE-TRANSMISSION

Return Part Number

1шт.

15

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, See figures 6-62 - 6-86, Replaces: P/N's123843A2 and 123843A3 transmissions on figures 6-34 - 6-60

1шт.

15

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

15

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

20

121658A1

DIPSTICK,492mm L

oil level, transmission

1шт.

21

1995137C1

CONVERTER

torque, new

1шт.

21

1995137C1R

REMAN-TORQUE CONVERT

ER Torque, Remanufactured, Component Parts not serviced separately

1шт.

21

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number, Torque Converter Core, Use this Part Number to Return Torque Converter for Credit when using a Remanufactured Assembly

1шт.

22

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT hex, 5/16 NF x 5/8 inch, grade 8

6шт.

23

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

flat, hardened, special

6шт.

24

A178706

PLATE

adapter, torque converter to engine flywheel

1шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

26

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

BOLT hex, full threads, 10 - 1.5 x 16 mm, class 10.9

6шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

7шт.

29

284641A1

MOUNTING PARTS

BRACKET mounting, transmission, right hand, no longer available, order P/N284641A2

1шт.

29a

284641A2

SUPPORT

BRACKET mounting, transmission, right hand

1шт.

30

284723A1

SUPPORT

BRACKET mounting, transmission, left hand, no longer available, order P/N284723A2

1шт.

30a

356316A1

MOUNTING PARTS

BRACKET mounting, transmission, left hand, Replaces: P/N284723A2

1шт.

31

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

2шт.

32

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, special, 5/8 inch, hardened

6шт.

33

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

RUBBER BLOCK INSULATOR engine mount, rear

2шт.

34

832-10416

NUT,M16 x 2, Cl 8

2шт.

35

284712A1

DRIVE SHAFT

ASSEMBLY, transmission to rear axle, See figure 6-188, models without powershift transmission

1шт.

37

298394A1

FOAM INSULATION

foam, transmission control lever, installed between firewall and flange on four speed shift lever boot, cab models only

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER straight, 1-5/16-12 flare x 3/4 inch PT

1шт.

39

237948A1

TUBE,25.4 mm OD

transmission dipstick

1шт.

40

90-6682T1

CLAMP

RETAINER drive shaft, strap

2шт.

41

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

special

4шт.

42

292514A1

INSULATOR

SEAL foam, noise reduction, cab models

1шт.
