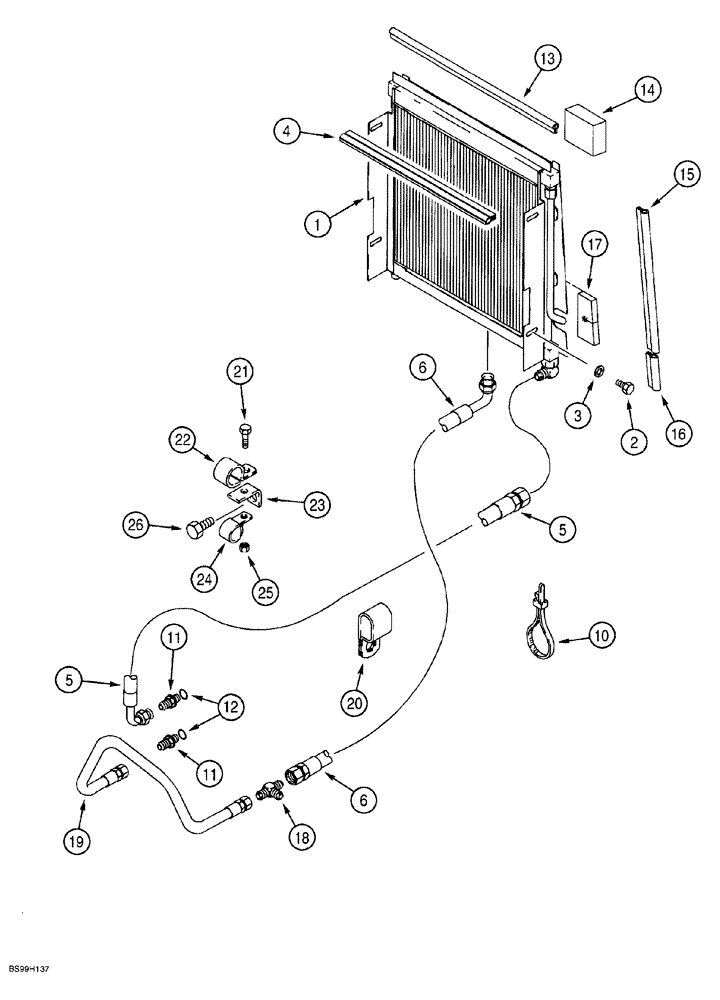

Запчасти Case 580SL (6-022) - TRANSMISSION COOLING SYSTEM, MODELS WITH POWERSHIFT TRANSMISSION, WITH FLARED FITTINGS AT COOLER (06) - POWER TRAIN

1

291288A1

COOLER, OIL

hydraulic, heavy duty, used with P/N 239739A1 heavy duty radiator on Fig. 2-4, uses radiator upper mounting bolts, see figure 9-82 for hardware and Fig. 8-8 for additional cooler hydraulic routing, includes Ref. 17, Includes: Refs. 218-5062-316718A1

1шт.

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

3шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

316717A1

TUBE

cooler, right hand

1шт.

316718A1

TUBE

cooler, left hand

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

183735A1

OIL SEAL

radiator to oil cooler

1шт.

5

304308A1

HOSE

1950 mm (76-13/16 inch) long, transmission to cooler inlet

1шт.

6

304307A1

HOSE

1660 mm (65-3/8 inch) long, cooler, Serial Range: outlet-transmission

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

3шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

233972A1

SEAL

564 mm (22-7/32 inch) long, horizontal, Serial Range: cooler-wrapper

1шт.

14

234719A1

SEAL

SEAL, 70 x 100 x 32 mm, upper corner

2шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

472 mm (18-5/8 inch) long, vertical, Serial Range: cooler-wrapper

2шт.

16

233971A1

SEAL

103 mm (4-1/16 inch) long, lower corner

2шт.

17

234499A1

SEAL

45 x 120 x 15 mm, furnished with cooler

2шт.

18

218-627

TEE,1 1/16"-12, 37 Degree x 1/2"-14, NPTF Fem Br

TEE, 1/2 female PT branch x 1-1/16-12 inch flare x flare

1шт.

19

241001A4

TUBE

TUBE, at transmission

1шт.

20

242999A1

CLAMP

P-type, double

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

P-type, 1/2 inch ID

1шт.

23

234442A1

SUPPORT

BRACKET

1шт.

24

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

1шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
